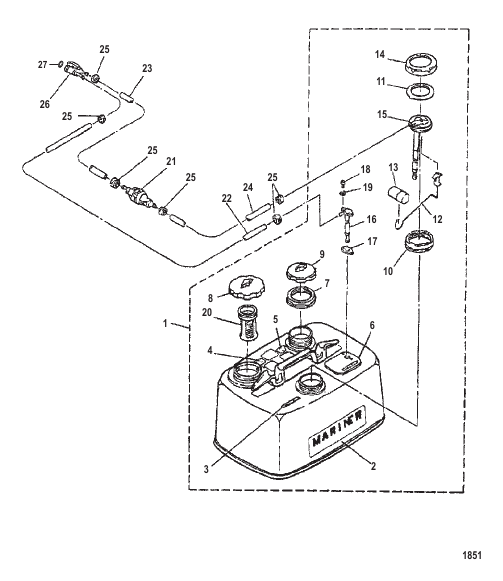

FUEL TANK AND FUEL LINE
Parts (27)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 9522M |
БАК В СБОРЕ Топливо TANK ASSEMBLY Fuel |
1 | discontinued |
| 10 | 97622M |
ГАЙКА NUT |
1 | discontinued |
| 11 | 97623M |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 12 | 14274M |
ИНДИКАТОР INDICTOR |
1 | discontinued |
| 13 | 81319M |
ПОПЛАВОК FLOAT |
1 | discontinued |
| 14 | 97624M |
ОПОРА SUPPORT |
1 | discontinued |
| 15 | 95616M |
ИЗМЕРИТЕЛЬНЫЙ ПРИБОР Топливо METER Fuel |
1 | discontinued |
| 16 | 99954M |
КОРПУС Соединитель HOUSING Connector |
1 | discontinued |
| 17 | 16720M |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 18 | 83356M |
ВИНТ SCREW |
2 | discontinued |
| 19 | 95501M |
УПЛОТНЕНИЕ SEAL |
2 | discontinued |
| 2 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО NOT SOLD SEPARATE |
2 | |
| 20 | 95568M |
СЕТЧАТЫЙ ФИЛЬТР STRAINER |
1 | discontinued |
| 21 | 89396Q38 |
ГРУША ПОДКАЧКИ ТОПЛИВА PRIMER BULB |
1 | superseded |
| 22 | 16571M |
РУКАВ HOSE |
1 | discontinued |
| 23 | 94727M |
РУКАВ HOSE |
1 | discontinued |
| 24 | 94727M |
РУКАВ HOSE |
1 | discontinued |
| 25 | 16725M |
ЗАЖИМ CLAMP |
6 | discontinued |
| 26 | 95569M |
СОЕДИНИТЕЛЬ Топливо CONNECTOR Fuel |
1 | discontinued |
| 27 | 82789M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 3 | 826963M |
НАКЛЕЙКА DECAL |
1 | discontinued |
| 4 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО NOT SOLD SEPARATE |
1 | |
| 5 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО NOT SOLD SEPARATE |
1 | |
| 6 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО NOT SOLD SEPARATE |
1 | |
| 7 | 97620M |
ГАЙКА NUT |
1 | discontinued |
| 8 | 814497M |
ПРОБКА CAP |
1 | discontinued |
| 9 | 814498M |
ПРОБКА CAP |
1 | discontinued |
