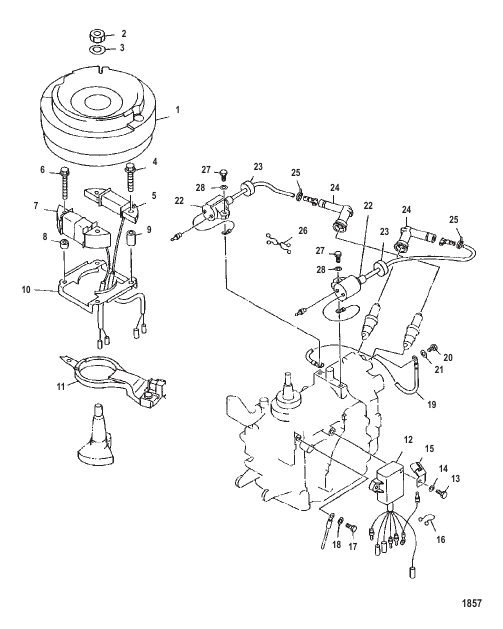

ELECTRICAL
Parts (28)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 852863 |
МАХОВИК В СБОРЕ FLYWHEEL ASSEMBLY |
1 | discontinued |
| 10 | 852866 |
ФИКСАТОР RETAINER |
1 | discontinued |
| 11 | 852864 |
КАТУШКА Импульсный генератор COIL Pulser |
1 | superseded |
| 12 | 8045011 |
БЛОК CDI CDI UNIT |
1 | discontinued |
| 13 | 84058M |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
2 | |
| 14 | 82214M |
ШАЙБА WASHER |
2 | discontinued |
| 15 | 852765 |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 16 | 15397M |
ЗАЖИМ CLAMP |
1 | discontinued |
| 17 | 91772M |
БОЛТ BOLT |
1 | discontinued |
| 18 | 82214M |
ШАЙБА WASHER |
1 | discontinued |
| 19 | 852774 |
КАБЕЛЬ CABLE |
1 | discontinued |
| 2 | 81770M |
ГАЙКА NUT |
1 | discontinued |
| 20 | 91772M |
БОЛТ BOLT |
1 | discontinued |
| 21 | 82214M |
ШАЙБА WASHER |
1 | discontinued |
| 22 | 95188A02 |
КОМПЛЕКТ КАТУШКИ Зажигание COIL KIT Ignition |
2 | discontinued |
| 23 | 82069M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
2 | discontinued |
| 24 | 63709A1 |
КОМПЛЕКТ ЧЕХЛА/КЛЕММ BOOT/TERMINAL KIT |
2 | |
| 25 | 879650 |
ЗАЖИМ CLAMP |
2 | superseded |
| 26 | 97079M |
ЗАЖИМ CLAMP |
1 | discontinued |
| 27 | 852776 |
БОЛТ BOLT |
2 | discontinued |
| 28 | 82214M |
ШАЙБА WASHER |
2 | discontinued |
| 3 | 81814M |
ШАЙБА WASHER |
1 | discontinued |
| 4 | 852478 |
БОЛТ BOLT |
2 | discontinued |
| 5 | 852865 |
КАТУШКА Нагнетание воздуха COIL Charge |
1 | discontinued |
| 6 | 804506 |
БОЛТ BOLT |
2 | discontinued |
| 7 | 804505 |
КАТУШКА Зарядка COIL Lighting |
1 | discontinued |
| 8 | 852477 |
ВТУЛКА COLLAR |
2 | discontinued |
| 9 | 8528149 |
ВТУЛКА COLLAR |
2 | discontinued |
