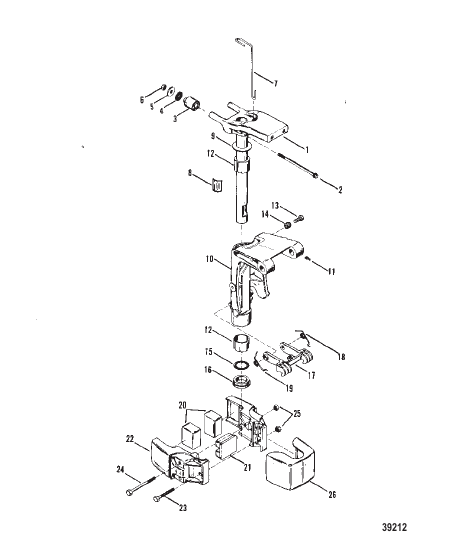

SWIVEL BRACKET ASSEMBLY
Parts (30)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 85168A80 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | discontinued |
| 1 | 97544A1 |
ПОВОРОТНАЯ ТРУБА В СБОРЕ SWIVEL TUBE ASSEMBLY |
1 | superseded |
| 10 | 8187A1 |
ПОВОРОТНЫЙ КРОНШТЕЙН В СБОРЕ SWIVEL BRACKET ASSEMBLY |
1 | superseded |
| 11 | 74036 |
ФИТИНГ Смазка FITTING Grease |
3 | superseded |
| 12 | 95949 |
ВТУЛКА SWIVEL BRACKET BUSHING SWIVEL BRACKET |
2 | discontinued |
| 13 | 91908 |
ВИНТ PILOT CONTROL SCREW PILOT CONTROL |
1 | superseded |
| 14 | 96203 |
ПРУЖИНА PILOT CONTROL SCREW SPRING PILOT CONTROL SCREW |
1 | |
| 15 | 86993 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО SWIVEL TUBE O-RING SWIVEL TUBE |
1 | |
| 16 | 85154 |
ВТУЛКА SWIVEL TUBE (LOWER) BUSHING SWIVEL TUBE (LOWER) |
1 | discontinued |
| 17 | 96045A1 |
КРЮК В СБОРЕ REVERSE LOCK HOOK ASSEMBLY REVERSE LOCK |
1 | superseded |
| 18 | 96018 |
ПРУЖИНА REVERSE HOOK - PORT SPRING REVERSE HOOK - PORT |
1 | |
| 19 | 97427 |
ПРУЖИНА REVERSE HOOK - STARBOARD SPRING REVERSE HOOK - STARBOARD |
1 | |
| 2 | 87142 |
ВИНТ UPPER MOUNT (133MM) SCREW UPPER MOUNT (133MM) |
2 | superseded |
| 20 | 85122 |
КРЕПЛЕНИЕ LOWER MOUNT LOWER |
2 | superseded |
| 21 | 85123 |
УПОР Передний BUMPER Front |
1 | superseded |
| 22 | 92168 |
КРЫШКА LOWER MOUNT [USA-6043400/Australia-8073792/Belgium-9340115/Canada-7185897] & Below COVER LOWER MOUNT [USA-6043400/Australia-8073792/Belgium-9340115/Canada-7185897] & Below |
2 | superseded |
| 22 | 95068A1 |
КРЫШКА LOWER MOUNT [USA-6043401/Belgium-9340116/Canada-7185898] & Up COVER LOWER MOUNT [USA-6043401/Belgium-9340116/Canada-7185898] & Up |
1 | discontinued |
| 23 | 40007155 |
ВИНТ LOWER MOUNT COVER (55MM) [USA-6043400/Australia-8073792/Belgium-9340115/Canada-7185897] & Below SCREW LOWER MOUNT COVER (55MM) [USA-6043400/Australia-8073792/Belgium-9340115/Canada-7185897] & Below |
1 | superseded |
| 23 | 4009259 |
ВИНТ LOWER MOUNT COVER (60MM) [USA-6043401/Belgium-9340116/Canada-7185898] & Up SCREW LOWER MOUNT COVER (60MM) [USA-6043401/Belgium-9340116/Canada-7185898] & Up |
1 | superseded |
| 24 | 4000362 |
ВИНТ LOWER MOUNT COVER (90MM) [USA-6043400/Australia-8073792/Belgium-9340115/Canada-7185897] & Below SCREW LOWER MOUNT COVER (90MM) [USA-6043400/Australia-8073792/Belgium-9340115/Canada-7185897] & Below |
2 | discontinued |
| 24 | 4009263 |
ВИНТ LOWER MOUNT COVER (100MM) [USA-6043401/Belgium-9340116/Canada-7185898] & Up SCREW LOWER MOUNT COVER (100MM) [USA-6043401/Belgium-9340116/Canada-7185898] & Up |
2 | superseded |
| 25 | 400213 |
ГАЙКА (M8), нержавеющая сталь LOWER MOUNT COVER SCREW NUT (M8) Stainless Steel LOWER MOUNT COVER SCREW |
3 | |
| 26 | 85547 |
КРЫШКА LOWER MOUNT (PLASTIC) [USA-6043400/Australia-8073792/Belgium-9340115/Canada-7185897] & Below COVER LOWER MOUNT (PLASTIC) [USA-6043400/Australia-8073792/Belgium-9340115/Canada-7185897] & Below |
1 | discontinued |
| 3 | 85102 |
КРЕПЛЕНИЕ UPPER MOUNT UPPER |
2 | superseded |
| 4 | 85172 |
ШАЙБА RUBBER - UPPER MOUNT SCREW WASHER RUBBER - UPPER MOUNT SCREW |
2 | |
| 5 | 85106 |
ШАЙБА UPPER MOUNT SCREW WASHER UPPER MOUNT SCREW |
2 | discontinued |
| 6 | 400213 |
ГАЙКА (M8), нержавеющая сталь UPPER MOUNT SCREW NUT (M8) Stainless Steel UPPER MOUNT SCREW |
2 | |
| 7 | 85157 |
ШТОК REVERSE HOOK ROD REVERSE HOOK |
1 | discontinued |
| 8 | 85173 |
ПЛАСТИНА PILOT CONTROL PLATE PILOT CONTROL |
1 | discontinued |
| 9 | 85104 |
ШАЙБА SWIVEL TUBE WASHER SWIVEL TUBE |
1 | discontinued |
