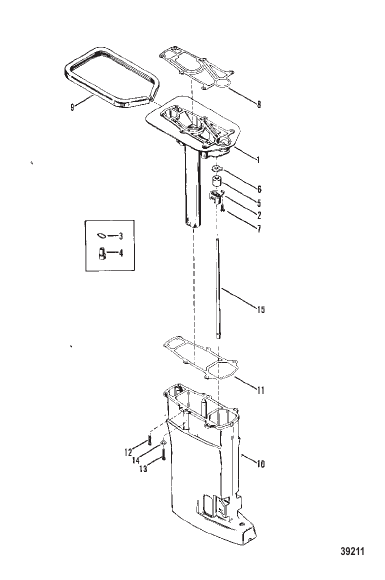

DRIVESHAFT HOUSING ASSEMBLY
Parts (22)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 85168A80 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | discontinued |
| 1 | 92165A4 |
ПЛАСТИНА В СБОРЕ PLATE ASSEMBLY |
1 | superseded |
| 10 | 7904A7 |
КОРПУС В СБОРЕ Карданный вал SHORT SHAFT [USA-6043400/Australia-8073792/Belgium-9340115/Canada-7185897] & Below HOUSING ASSEMBLY Driveshaft SHORT SHAFT [USA-6043400/Australia-8073792/Belgium-9340115/Canada-7185897] & Below |
1 | superseded |
| 10 | 7906A7 |
КОРПУС В СБОРЕ Карданный вал LONG SHAFT [USA-6043400/Australia-8073792/Belgium-9340115/Canada-7185897] & Below HOUSING ASSEMBLY Driveshaft LONG SHAFT [USA-6043400/Australia-8073792/Belgium-9340115/Canada-7185897] & Below |
1 | superseded |
| 10 | 8747A1 |
КОРПУС В СБОРЕ SHORT SHAFT [USA-6043401/Belgium-9340116/Canada-7185898] & Up HOUSING ASSEMBLY SHORT SHAFT [USA-6043401/Belgium-9340116/Canada-7185898] & Up |
1 | discontinued |
| 10 | 8749A1 |
КОРПУС В СБОРЕ LONG SHAFT [USA-6043401/Belgium-9340116/Canada-7185898] & Up HOUSING ASSEMBLY LONG SHAFT [USA-6043401/Belgium-9340116/Canada-7185898] & Up |
1 | discontinued |
| 11 | 85109 |
ПРОКЛАДКА DRIVESHAFT HOUSING [USA-6043400/Australia-8073792/Belgium-9340115/Canada-7185897] & Below GASKET DRIVESHAFT HOUSING [USA-6043400/Australia-8073792/Belgium-9340115/Canada-7185897] & Below |
1 | discontinued |
| 11 | 96286 |
ПРОКЛАДКА DRIVESHAFT HOUSING [USA-6043401/Belgium-9340116/Canada-7185898] & Up GASKET DRIVESHAFT HOUSING [USA-6043401/Belgium-9340116/Canada-7185898] & Up |
1 | superseded |
| 12 | 400035 |
ВИНТ (M5 x 16) DRIVESHAFT HOUSING TO PLATE SCREW (M5 x 16) DRIVESHAFT HOUSING TO PLATE |
2 | discontinued |
| 13 | 4000360 |
ВИНТ DRIVESHAFT HOUSING TO PLATE (60MM) SCREW DRIVESHAFT HOUSING TO PLATE (60MM) |
6 | superseded |
| 14 | 4002317 |
ШАЙБА (8,90 x 17,0 x 1,9 нерж. сталь) DRIVESHAFT HOUSING SCREW WASHER (8.90 X 17.0 X 1.9SS) DRIVESHAFT HOUSING SCREW |
6 | |
| 15 | 85116 |
ТРУБА Вода SHORT SHAFT TUBE Water SHORT SHAFT |
1 | discontinued |
| 15 | 86292 |
ТРУБА Вода LONG SHAFT TUBE Water LONG SHAFT |
1 | discontinued |
| 2 | 85162 |
КОРПУС WATER TUBE USED WITH REF. #3 HOUSING WATER TUBE USED WITH REF. #3 |
1 | superseded |
| 2 | 96248A1 |
КОРПУС В СБОРЕ WATER TUBE NOT USED WITH REF. #3 HOUSING ASSEMBLY WATER TUBE NOT USED WITH REF. #3 |
1 | discontinued |
| 3 | 36390 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО WATER TUBE HOUSING USED WITH REF. #3 O-RING WATER TUBE HOUSING USED WITH REF. #3 |
1 | |
| 4 | 85164 |
УПЛОТНЕНИЕ WATER TUBE USED WITH REF. #3 SEAL WATER TUBE USED WITH REF. #3 |
1 | discontinued |
| 5 | 25329 |
УПЛОТНЕНИЕ WATER TUBE NOT USED WITH REF. #3 SEAL WATER TUBE NOT USED WITH REF. #3 |
1 | |
| 6 | 96247 |
ПРОСТАВКА WATER TUBE NOT USED WITH REF. #3 SPACER WATER TUBE NOT USED WITH REF. #3 |
1 | superseded |
| 7 | 400035 |
ВИНТ (M5 x 16) HOUSING TO ADAPTOR PLATE SCREW (M5 x 16) HOUSING TO ADAPTOR PLATE |
2 | discontinued |
| 8 | 85111 |
ПРОКЛАДКА ADAPTOR PLATE GASKET ADAPTOR PLATE |
1 | superseded |
| 9 | 87357 |
УПЛОТНЕНИЕ Переходная пластина SEAL Adaptor Plate |
1 | superseded |
