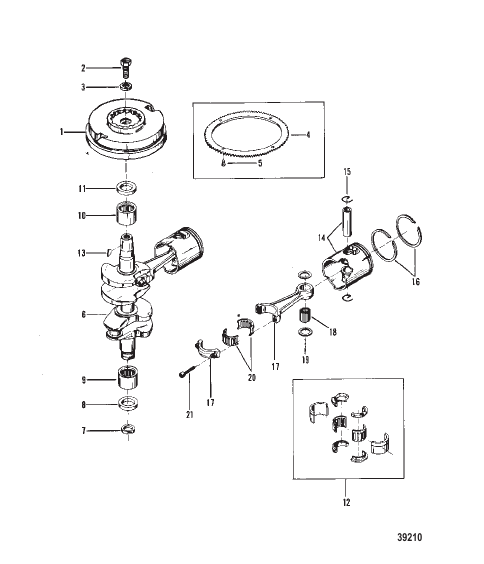

CRANKSHAFT, PISTONS AND FLYWHEEL
Parts (28)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 90885A80 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ POWERHEAD ASSEMBLY |
1 | superseded |
| 1 | 8274A6 |
МАХОВИК В СБОРЕ FLYWHEEL ASSEMBLY |
1 | superseded |
| 10 | 85114 |
ПОДШИПНИК Ролик – верхний CRANKSHAFT BEARING Roller - Upper CRANKSHAFT |
1 | superseded |
| 11 | 85974 |
УПЛОТНЕНИЕ Масло CRANKSHAFT - UPPER SEAL Oil CRANKSHAFT - UPPER |
1 | superseded |
| 12 | 86992A2 |
БЛОК ПОДШИПНИКА CENTER MAIN BEARING ASSEMBLY CENTER MAIN |
1 | superseded |
| 13 | 20094 |
КЛЮЧ Сегментная шпонка FLYWHEEL DRIVE KEY Woodruff FLYWHEEL DRIVE |
1 | |
| 14 | 8511A3 |
ПОРШЕНЬ В СБОРЕ PISTON ASSEMBLY |
2 | superseded |
| 15 | 47276 |
СТОПОРНОЕ КОЛЬЦО PISTON PIN LOCK RING PISTON PIN |
4 | superseded |
| 16 | 96525A12 |
НАБОР КОЛЕЦ Поршень RING SET Piston |
1 | superseded |
| 17 | 8329A2 |
СОЕДИНИТЕЛЬНЫЙ СТЕРЖЕНЬ В СБОРЕ [USA-6239752/Belgium-9378115/Canada-7200762] & Below CONNECTING ROD ASSEMBLY [USA-6239752/Belgium-9378115/Canada-7200762] & Below |
2 | discontinued |
| 17 | 8329A3 |
СОЕДИНИТЕЛЬНЫЙ СТЕРЖЕНЬ В СБОРЕ [USA-6239753/Belgium-9378116/Canada-7200763] & Up CONNECTING ROD ASSEMBLY [USA-6239753/Belgium-9378116/Canada-7200763] & Up |
2 | superseded |
| 18 | 20063 |
ПОДШИПНИК Игла PISTON END [USA-6239752/Belgium-9378115/Canada-7200762] & Below BEARING Needle PISTON END [USA-6239752/Belgium-9378115/Canada-7200762] & Below |
54 | |
| 18 | 98295 |
ПОДШИПНИК Игла PISTON END [USA-6239753/Belgium-9378116/Canada-7200763] & Up BEARING Needle PISTON END [USA-6239753/Belgium-9378116/Canada-7200763] & Up |
54 | |
| 19 | 85175 |
ШАЙБА LOCATING - NEEDLE BEARING [USA-6239752/Belgium-9378115/Canada-7200762] & Below WASHER LOCATING - NEEDLE BEARING [USA-6239752/Belgium-9378115/Canada-7200762] & Below |
4 | discontinued |
| 19 | 98296 |
ШАЙБА LOCATING - NEEDLE BEARING [USA-6239753/Belgium-9378116/Canada-7200763] & Up WASHER LOCATING - NEEDLE BEARING [USA-6239753/Belgium-9378116/Canada-7200763] & Up |
4 | superseded |
| 2 | 97359A1 |
ВИНТ В СБОРЕ FLYWHEEL TO CRANKSHAFT SCREW ASSEMBLY FLYWHEEL TO CRANKSHAFT |
1 | discontinued |
| 20 | 91866A1 |
БЛОК ПОДШИПНИКА Ролик BEARING ASSEMBLY Roller |
2 | superseded |
| 21 | 86224 |
ВИНТ CONNECTING ROD (25MM) [USA-6239752/Belgium-9378115/Canada-7200762] & Below SCREW CONNECTING ROD (25MM) [USA-6239752/Belgium-9378115/Canada-7200762] & Below |
4 | superseded |
| 21 | 4008225 |
ВИНТ (M6 x 25) CONNECTING ROD [USA-6239753/Belgium-9378116/Canada-7200763] & Up SCREW (M6 x 25) CONNECTING ROD [USA-6239753/Belgium-9378116/Canada-7200763] & Up |
4 | discontinued |
| 22 | 85168A80 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | discontinued |
| 3 | 86496 |
ШАЙБА FLYWHEEL SCREW WASHER FLYWHEEL SCREW |
1 | |
| 4 | 87575 |
ВЕНЦОВАЯ ШЕСТЕРНЯ FLYWHEEL Electric [USA-6043400/Australia-8073792/Belgium-9340115/Canada-7185897] & Below RING GEAR FLYWHEEL Electric [USA-6043400/Australia-8073792/Belgium-9340115/Canada-7185897] & Below |
1 | superseded |
| 4 | 99301 |
ВЕНЦОВАЯ ШЕСТЕРНЯ FLYWHEEL Electric [USA-6043401/Belgium-9340116/Canada-7185898] & Up RING GEAR FLYWHEEL Electric [USA-6043401/Belgium-9340116/Canada-7185898] & Up |
1 | |
| 5 | 40039106 |
ВИНТ (M5 x 13) RING GEAR TO FLYWHEEL Electric SCREW (M5 x 13) RING GEAR TO FLYWHEEL Electric |
4 | superseded |
| 6 | 8586A2 |
КОЛЕНЧАТЫЙ ВАЛ В СБОРЕ CRANKSHAFT ASSEMBLY |
1 | superseded |
| 7 | 85981 |
УПЛОТНЕНИЕ Коленчатый вал SEAL Crankshaft |
1 | discontinued |
| 8 | 85107 |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | |
| 9 | 85113 |
ПОДШИПНИК Ролик CRANKSHAFT - LOWER BEARING Roller CRANKSHAFT - LOWER |
1 | superseded |
