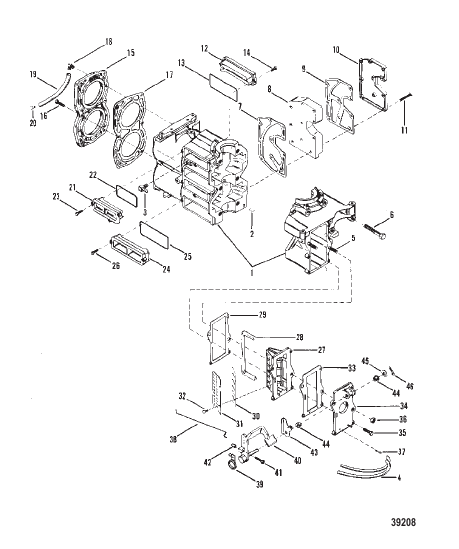

CYLINDER BLOCK AND COVER
Parts (52)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 85168A80 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | discontinued |
| 1 | 8196A3 |
БЛОК ЦИЛИНДРА В СБОРЕ [USA-6043400/Australia-8073792/Belgium-9340115/Canada-7185897] & Below CYLINDER BLOCK ASSEMBLY [USA-6043400/Australia-8073792/Belgium-9340115/Canada-7185897] & Below |
1 | superseded |
| 1 | 8501A2 |
БЛОК ЦИЛИНДРА В СБОРЕ [USA-6043401/Belgium-9340116/Canada-7185898] & Up CYLINDER BLOCK ASSEMBLY [USA-6043401/Belgium-9340116/Canada-7185898] & Up |
1 | superseded |
| 10 | 92330 |
КРЫШКА EXHAUST COVER EXHAUST |
1 | superseded |
| 11 | 4000333 |
ВИНТ (M6 x 40) SCREW (M6 x 40) |
10 | |
| 12 | 92349 |
КРЫШКА TRANSFER PORT COVER TRANSFER PORT |
2 | superseded |
| 13 | 30503 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО TRANSFER PORT COVER O-RING TRANSFER PORT COVER |
2 | superseded |
| 14 | 40057107 |
ВИНТ (M5 x 16) SCREW (M5 x 16) |
4 | discontinued |
| 15 | 7415 |
КРЫШКА CYLINDER BLOCK USE WITH 25MM SCREWS COVER CYLINDER BLOCK USE WITH 25MM SCREWS |
1 | superseded |
| 15 | 8283A1 |
КРЫШКА В СБОРЕ CYLINDER BLOCK USE WITH 30MM SCREWS COVER ASEMBLY CYLINDER BLOCK USE WITH 30MM SCREWS |
1 | discontinued |
| 16 | 4000331 |
ВИНТ (M6 x 30) COVER ATTACHING USE WITH 30MM SCREWS SCREW (M6 x 30) COVER ATTACHING USE WITH 30MM SCREWS |
6 | |
| 16 | 4000330 |
ВИНТ (M6 x 25) COVER ATTACHING USE WITH 25MM SCREWS SCREW (M6 x 25) COVER ATTACHING USE WITH 25MM SCREWS |
6 | superseded |
| 17 | 86389 |
ПРОКЛАДКА CYLINDER BLOCK COVER GASKET CYLINDER BLOCK COVER |
1 | |
| 18 | 25885 |
КОЛЕНЧАТЫЙ TELL TALE HOSE ELBOW TELL TALE HOSE |
1 | superseded |
| 19 | 34395A1 |
РУКАВ TELL TAL (8") HOSE TELL TAL (8") |
1 | superseded |
| 2 | 85171 |
ШТИФТ Штифт CYLINDER BLOCK PIN Dowel CYLINDER BLOCK |
3 | |
| 20 | 94848 |
ФИТИНГ TELL TALE HOSE - BOTTOM COWL FITTING TELL TALE HOSE - BOTTOM COWL |
1 | |
| 21 | 92351 |
КРЫШКА TRANSFER PORT COVER TRANSFER PORT |
2 | superseded |
| 22 | 86391 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО TRANSFER PORT COVER O-RING TRANSFER PORT COVER |
2 | |
| 23 | 40057107 |
ВИНТ (M5 x 16) SCREW (M5 x 16) |
6 | discontinued |
| 24 | 92350 |
КРЫШКА TRANSFER PORT COVER TRANSFER PORT |
2 | discontinued |
| 25 | 33465 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО TRANSFER PORT COVER O-RING TRANSFER PORT COVER |
2 | superseded |
| 26 | 40057107 |
ВИНТ (M5 x 16) SCREW (M5 x 16) |
4 | discontinued |
| 27 | 90786 |
БЛОК С ПЛАСТИНЧАТЫМИ КЛАПАНАМИ REED BLOCK |
1 | superseded |
| 28 | 85977 |
УПЛОТНЕНИЕ Резина REED BLOCK SEAL Rubber REED BLOCK |
1 | superseded |
| 29 | 85978 |
ПРОКЛАДКА REED BLOCK GASKET REED BLOCK |
1 | superseded |
| 3 | 71191 |
КОЛЕНЧАТЫЙ BLEED HOSE (45) ELBOW BLEED HOSE (45) |
2 | superseded |
| 30 | 90791 |
ПЛАСТИНЧАТЫЙ КЛАПАН REED |
2 | superseded |
| 31 | 89793 |
СТОП Пластинчатый клапан STOP Reed |
2 | superseded |
| 32 | 4005785 |
ВИНТ (M4 x 10) REED ATTACHING SCREW (M4 x 10) REED ATTACHING |
4 | |
| 33 | 85979 |
ПРОКЛАДКА ADAPTOR PLATE GASKET ADAPTOR PLATE |
1 | superseded |
| 34 | 90785 |
ПЛАСТИНА ADAPTOR - CARBURETOR PLATE ADAPTOR - CARBURETOR |
1 | discontinued |
| 35 | 40057108 |
ВИНТ (M5 x 20) PLATE TO REED BLOCK SCREW (M5 x 20) PLATE TO REED BLOCK |
3 | superseded |
| 36 | 400213 |
ГАЙКА (M8), нержавеющая сталь CARBURETOR STUD NUT (M8) Stainless Steel CARBURETOR STUD |
2 | |
| 37 | 56759 |
ФИТИНГ Зазубренный ADAPTOR PLATE - BLEED HOSE FITTING Barbed ADAPTOR PLATE - BLEED HOSE |
2 | |
| 38 | 93879 |
ПРОВОД ХОЛОСТОГО ХОДА IDLE WIRE |
1 | discontinued |
| 39 | 97176 |
ПРУЖИНА CHOKE SPRING CHOKE |
1 | discontinued |
| 4 | 6058078 |
РУКАВ BLEED (12-1/4") HOSE BLEED (12-1/4") |
2 | superseded |
| 40 | 93877 |
РЫЧАГ CHOKE/FAST IDLE LEVER CHOKE/FAST IDLE |
1 | superseded |
| 41 | 89580 |
ВИНТ ADJUSTING - LEVER USED WITH REF. #42 SCREW ADJUSTING - LEVER USED WITH REF. #42 |
1 | superseded |
| 41 | 91073 |
ВИНТ ADJUSTING - LEVER NOT USED WITH REF. #42 SCREW ADJUSTING - LEVER NOT USED WITH REF. #42 |
1 | discontinued |
| 42 | 48039 |
ПРОБКА ADJUSTING SCREW USED WITH REF. #42 CAP ADJUSTING SCREW USED WITH REF. #42 |
1 | |
| 43 | 89602 |
ПЛАСТИНА DRIVER USED WITH REF. #42 PLATE DRIVER USED WITH REF. #42 |
1 | superseded |
| 43 | 96151A1 |
ПЛАСТИНА В СБОРЕ DRIVER NOT USED WITH REF. #42 PLATE ASSEMBLY DRIVER NOT USED WITH REF. #42 |
1 | superseded |
| 44 | 90798 |
ВТУЛКА CHOKE/FAST IDLE LEVER BUSHING CHOKE/FAST IDLE LEVER |
2 | superseded |
| 45 | 28463 |
ШАЙБА CHOKE/FAST IDLE LEVER WASHER CHOKE/FAST IDLE LEVER |
1 | discontinued |
| 46 | 93500 |
ШПЛИНТ CHOKE/FAST IDLE LEVER COTTER PIN CHOKE/FAST IDLE LEVER |
1 | discontinued |
| 5 | 88929 |
ШПИЛЬКА CARBURETOR STUD CARBURETOR |
2 | superseded |
| 6 | 40001209 |
ВИНТ (M10 x 60) SCREW (M10 x 60) |
6 | |
| 7 | 92331 |
ПРОКЛАДКА EXHAUST MANIFOLD GASKET EXHAUST MANIFOLD |
1 | superseded |
| 8 | 92329 |
КОЛЛЕКТОР Выхлоп MANIFOLD Exhaust |
1 | discontinued |
| 9 | 92332 |
ПРОКЛАДКА EXHAUST COVER GASKET EXHAUST COVER |
1 | superseded |
