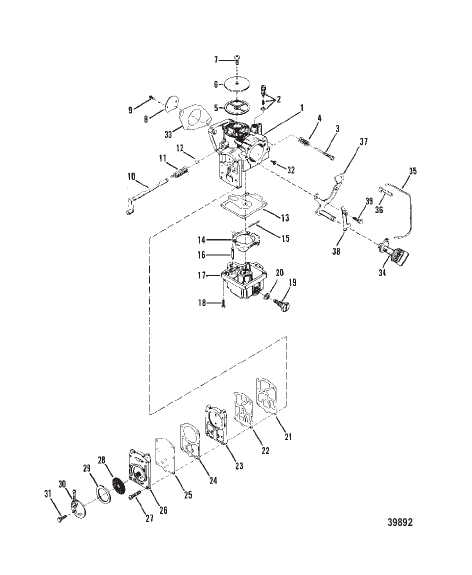

CARBURETOR ASSEMBLY
Parts (48)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8153 |
РЕМОНТНЫЙ КОМПЛЕКТ Карбюратор REPAIR KIT Carburetor |
1 | |
| - | 8154 |
КОМПЛЕКТ ПРОКЛАДОК Карбюратор GASKET KIT Carburetor |
1 | |
| - | 85168A80 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | discontinued |
| 1 | 8704A1 |
КАРБЮРАТОР В СБОРЕ CARBURETOR ASSEMBLY |
1 | superseded |
| 10 | 8321 |
ВАЛ Дроссельная заслонка SHAFT Throttle |
1 | discontinued |
| 11 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Spring, return - throttle shaft NOT SOLD SEPARATE Spring, return - throttle shaft |
1 | |
| 12 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО E-Ring, throttle shaft NOT SOLD SEPARATE E-Ring, throttle shaft |
1 | |
| 13 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket, fuel bowl NOT SOLD SEPARATE Gasket, fuel bowl |
1 | |
| 14 | 8139 |
ПОПЛАВОК FLOAT |
1 | discontinued |
| 15 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Float Pin NOT SOLD SEPARATE Float Pin |
1 | |
| 16 | 8143 |
ИГЛА И СЕДЛО Впуск NEEDLE AND SEAT Inlet |
1 | discontinued |
| 17 | 8140 |
КАМЕРА Топливо BOWL Fuel |
1 | discontinued |
| 18 | 8141 |
ВИНТ FUEL BOWL SCREW FUEL BOWL |
4 | discontinued |
| 19 | 8323 |
ВОДОМЕТНЫЙ Главн. (0.052) JET Main (.052) |
1 | discontinued |
| 19 | 8325 |
ВОДОМЕТНЫЙ Главн. (0.046) JET Main (.046) |
OPT | discontinued |
| 19 | 8326 |
ВОДОМЕТНЫЙ Главн. (0.048) JET Main (.048) |
OPT | superseded |
| 19 | 8324 |
ВОДОМЕТНЫЙ Главн. (0.050) JET Main (.050) |
OPT | superseded |
| 2 | 8138 |
КЛАПАН Обогащение VALVE Enrichment |
1 | discontinued |
| 20 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket, main jet NOT SOLD SEPARATE Gasket, main jet |
1 | |
| 21 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket, fuel pump diaphragm NOT SOLD SEPARATE Gasket, fuel pump diaphragm |
1 | |
| 22 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Diaphragm, fuel pump NOT SOLD SEPARATE Diaphragm, fuel pump |
1 | |
| 23 | 8142 |
КОРПУС FUEL PUMP BODY FUEL PUMP |
1 | discontinued |
| 24 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket, fuel pump diaphragm NOT SOLD SEPARATE Gasket, fuel pump diaphragm |
1 | |
| 25 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Diaphragm, fuel pump NOT SOLD SEPARATE Diaphragm, fuel pump |
1 | |
| 26 | 8147 |
КОРПУС STRAINER BODY STRAINER |
1 | discontinued |
| 27 | 8148 |
ВИНТ STRAINER BODY SCREW STRAINER BODY |
4 | discontinued |
| 28 | 5758 |
ЭКРАН STRAINER SCREEN STRAINER |
1 | |
| 29 | 5207 |
ПРОКЛАДКА STRAINER COVER GASKET STRAINER COVER |
1 | |
| 3 | 8320 |
ВИНТ IDLE SCREW IDLE |
1 | superseded |
| 30 | 8149 |
КРЫШКА STRAINER COVER STRAINER |
1 | superseded |
| 31 | 8150 |
ВИНТ STRAINER COVER SCREW STRAINER COVER |
1 | discontinued |
| 32 | 7335 |
ВОДОМЕТНЫЙ (0.098) BACK-DRAG USED WITH BC2B CARBURETOR JET (.098) BACK-DRAG USED WITH BC2B CARBURETOR |
1 | |
| 32 | 8423 |
ВОДОМЕТНЫЙ (0.094) BACK-DRAG USED WITH BC2B CARBURETOR JET (.094) BACK-DRAG USED WITH BC2B CARBURETOR |
OPT | discontinued |
| 32 | 6249 |
ВОДОМЕТНЫЙ Главн. (0.096) BACK-DRAG USED WITH BC2B CARBURETOR JET Main (.096) BACK-DRAG USED WITH BC2B CARBURETOR |
OPT | |
| 33 | 88004 |
ПРОКЛАДКА CARBURETOR GASKET CARBURETOR |
1 | |
| 34 | 98183A1 |
РУКОЯТКА В СБОРЕ Обогатитель KNOB ASSEMBLY Choke |
1 | discontinued |
| 35 | 89762 |
ШТОК Обогатитель ROD Choke |
1 | discontinued |
| 36 | 89668 |
ЗАЖИМ CHOKE ROD CLIP CHOKE ROD |
1 | discontinued |
| 37 | 89402A1 |
ПЛАСТИНА В СБОРЕ CHOKE KNOB MANUAL PLATE ASSEMBLY CHOKE KNOB MANUAL |
1 | discontinued |
| 37 | 94301A1 |
ПЛАСТИНА В СБОРЕ CHOKE KNOB ELECTRIC PLATE ASSEMBLY CHOKE KNOB ELECTRIC |
1 | discontinued |
| 38 | 92333 |
СОЕДИНИТЕЛЬ CHOKE DETENT LINK CHOKE DETENT |
1 | discontinued |
| 39 | 400018 |
ВИНТ (M5 x 12) SCREW (M5 x 12) |
2 | |
| 4 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Spring-idle screw NOT SOLD SEPARATE Spring-idle screw |
1 | |
| 5 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket, metering cover NOT SOLD SEPARATE Gasket, metering cover |
1 | |
| 6 | 8145 |
КРЫШКА METERING COVER METERING |
1 | discontinued |
| 7 | 8146 |
ВИНТ METERING COVER SCREW METERING COVER |
1 | discontinued |
| 8 | 8322 |
ЗАСЛОНКА Дроссельная заслонка SHUTTER Throttle |
1 | discontinued |
| 9 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Screw, throttle shutter NOT SOLD SEPARATE Screw, throttle shutter |
2 |
