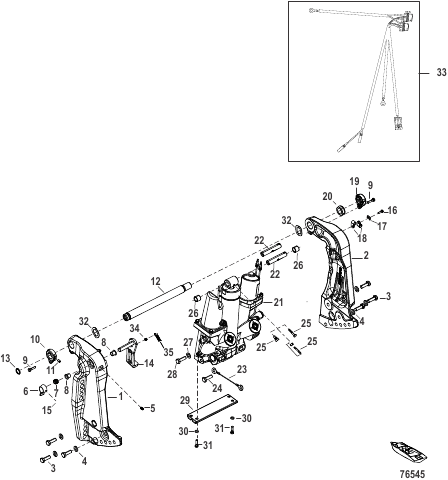

Power Trim/Transom Assembly
Parts (45)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0142800 |
КРОНШТЕЙН Транец, левый борт Black (Must Purchase 893709) BRACKET Transom, Port Black (Must Purchase 893709) |
1 | |
| 1 | 8M0156255 |
КРОНШТЕЙН Транец, левый борт Silver (Must Purchase 893709) BRACKET Transom, Port Silver (Must Purchase 893709) |
1 | |
| 10 | 8M0146189 |
ГАЙКА ФИКСАЦИИ ТРУБКИ НАКЛОНА Черный NUT TILT TUBE LOCK Black |
1 | |
| 10 | 8M0146190 |
ГАЙКА ФИКСАЦИИ ТРУБКИ НАКЛОНА Серебристый NUT TILT TUBE LOCK Silver |
1 | |
| 11 | 8M0142811 |
ВИНТ SCREW |
1 | |
| 12 | 8M0147844 |
ТРУБА НАКЛОНА TILT TUBE |
1 | |
| 13 | 8M0142810 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0,612 x 0,0103) O-RING (0.612 x .0103) |
1 | |
| 14 | 8M0115104 |
РЫЧАГ В СБОРЕ Штифт запирания наклона LEVER ASSEMBLY Tilt Lock |
1 | |
| 15 | 99615 |
ШТИФТ Желоб PIN Groove |
1 | |
| 16 | 878609 |
ВИНТ (№10-16 x 0.600) SCREW (#10-16 x .600) |
1 | |
| 17 | 8M0084613 |
С-ОБРАЗНАЯ ШАЙБА C-WASHER |
1 | |
| 18 | 22740 |
ЗАЖИМ CLIP |
2 | |
| 19 | 8M0142809 |
КРОНШТЕЙН Трубка наклона Black BRACKET Tilt Tube Black |
1 | |
| 19 | 8M0147678 |
КРОНШТЕЙН Трубка наклона Silver BRACKET Tilt Tube Silver |
1 | |
| 2 | 8M0142801 |
КРОНШТЕЙН Транец, правый борт Black BRACKET Transom, Starboard Black |
1 | |
| 2 | 8M0156256 |
КРОНШТЕЙН Транец, правый борт Silver BRACKET Transom, Starboard Silver |
1 | |
| 20 | 826164 |
ГАЙКА (0.875-14) NUT (.875-14) |
1 | superseded |
| 21 | 8M0142341 |
УСИЛИТЕЛЬ ДИФФЕРЕНТА В СБОРЕ Design I, Plastic Motor Housing POWER TRIM ASSEMBLY Design I, Plastic Motor Housing |
1 | superseded |
| 21 | 8M0164977 |
POWER TRIM ASSEMBLY Design I, Blue Cap POWER TRIM ASSEMBLY Design I, Blue Cap |
1 | superseded |
| 21 | 8M0225374 |
POWER TRIM ASSEMBLY Design II/III POWER TRIM ASSEMBLY Design II/III |
1 | |
| 22 | 8M0094889 |
ШТИФТ Design I, Pin Trilobe Design PIN Design I, Pin Trilobe Design |
1 | superseded |
| 22 | 8M0164978 |
PIN ROD EYE ASSEMBLY Screw Design PIN ROD EYE ASSEMBLY Screw Design |
1 | superseded |
| 22 | 8M0230946 |
PIN ROD EYE KIT Stud/Nut Design PIN ROD EYE KIT Stud/Nut Design |
1 | |
| 23 | 8M0079640 |
КАБЕЛЬНЫЙ УЗЕЛ Design I, Ground Cable CABLE ASSEMBLY Design I, Ground Cable |
1 | |
| 24 | 8M0113176 |
SCREW Design I, Ground Cable Screw SCREW Design I, Ground Cable Screw |
1 | |
| 25 | 821539 |
ШТИФТ Трехгранный Pin Trilobe Design PIN Trilobe Pin Trilobe Design |
1 | |
| 25 | 8M0050058 |
ВИНТ 5/16-24 x 0.5 Screw Design SCREW 5/16-24 X .5 Screw Design |
1 | superseded |
| 25 | 8M0232231 |
SCREW NUT KIT Stud/Nut Design SCREW NUT KIT Stud/Nut Design |
1 | |
| 26 | 821207 |
ВТУЛКА BUSHING |
2 | |
| 27 | 4002319 |
ШАЙБА WASHER |
1 | |
| 28 | 858771 |
ВИНТ (M10 x 30) SCREW (M10 x 30) |
1 | |
| 29 | 818298Q1 |
КОМПЛЕКТ АНОДОВ ANODE KIT |
1 | |
| 3 | 858771 |
ВИНТ (M10 x 30) SCREW (M10 x 30) |
6 | |
| 30 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь WASHER (.281 x .500 x .060) Stainless Steel |
2 | superseded |
| 31 | 4000330 |
ВИНТ (M6 x 25) SCREW (M6 x 25) |
2 | superseded |
| 32 | 88750 |
ШАЙБА WASHER Wave (1.62 x 1.05) |
2 | |
| 33 | 8M0142682 |
ЭЛЕКТРОПРОВОДКА Дифферент WIRE HARNESS Trim |
1 | |
| 34 | 893709 |
ШТИФТ PIN |
1 | |
| 35 | 830899 |
ПРУЖИНА Натяжение SPRING Tension |
1 | |
| 4 | 4002319 |
ШАЙБА WASHER |
6 | |
| 5 | 98727 |
ФИТИНГ Смазка FITTING Grease |
1 | superseded |
| 6 | 99633 |
РУЧКА KNOB |
1 | |
| 7 | 830900 |
ПРУЖИНА Сжатие SPRING Compression |
1 | |
| 8 | 65830 |
NYLINER NYLINER |
2 | |
| 9 | 4000330 |
ВИНТ (M6 x 25) SCREW (M6 x 25) |
2 | superseded |
