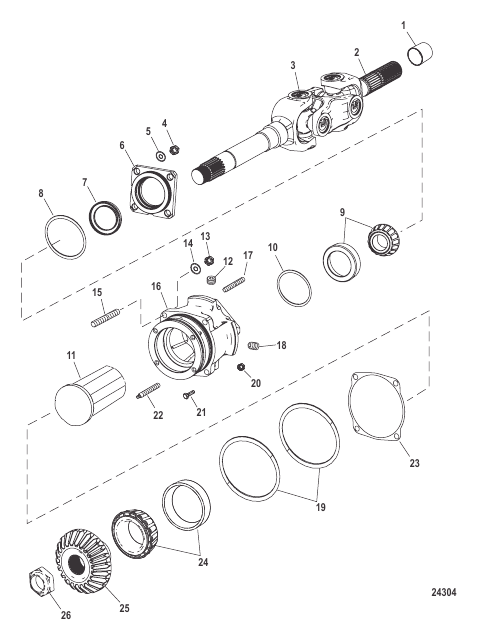

U Joint Assembly
Parts (30)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 844358 |
РУКАВ Подшипник SLEEVE Bearing |
1 | |
| 10 | 847553A1 |
НАБОР ПРОКЛАДОК SHIM SET |
1 | |
| 11 | 847305 |
ПРОСТАВКА Конусный SPACER Cone |
1 | superseded |
| 12 | 328022 |
ПРОБКА Труба (0.125-27), латунь PLUG Pipe (.125-27) Brass |
1 | |
| 13 | 34933 |
ГАЙКА (.437-20), нержавеющая сталь NUT (.437-20) Stainless Steel |
4 | superseded |
| 14 | 35935 |
ШАЙБА (0.435 x 0.875 x 0.105), нержавеющая сталь WASHER (.435 x .875 x .105) Stainless Steel |
4 | superseded |
| 15 | 57984 |
ШПИЛЬКА (0.437-14/0.437-20 x 2.380) STUD (.437-14/.437-20 x 2.380) |
4 | |
| 16 | 847281A2 |
КОРПУС В СБОРЕ Впуск HOUSING ASSEMBLY Input |
1 | |
| 17 | 57982 |
ШПИЛЬКА (0.437-14/0.437-20 x 1.875) STUD (.437-14/.437-20 x 1.875) |
4 | superseded |
| 18 | 568001 |
ПРОБКА Труба (0.0625-27) PLUG Pipe (.0625-27) |
1 | |
| 19 | 847376 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (5.234 x 0.120) O-RING (5.234 x .120) |
2 | |
| 2 | 899866T |
КАРДАННЫЙ ШАРНИР В СБОРЕ U JOINT ASSEMBLY |
1 | |
| 20 | 90095 |
ГАЙКА (0.312-24), нержавеющая сталь NUT (.312-24) Stainless Steel |
2 | |
| 21 | 807675 |
ВИНТ (0.312-24 x 0.380) SCREW (.312-24 x .380) |
2 | |
| 22 | 8496731 |
ШТУЦЕР NOZZLE |
1 | |
| 23 | 847306A1 |
НАБОР ПРОКЛАДОК SHIM SET |
1 | |
| 24 | 846490T1 |
НАБОР ПОДШИПНИКОВ Колпачок и конус BEARING SET Cup And Cone |
1 | |
| 25 | 841171A01 |
НАБОР ШЕСТЕРЕН (1.153:1) Includes 21 Tooth Pinion And 23 Tooth Gear GEAR SET (1.153:1) Includes 21 Tooth Pinion And 23 Tooth Gear |
AR | superseded |
| 25 | 843201A01 |
НАБОР ШЕСТЕРЕН (23/27) (1.24:1) Includes 23 Tooth Pinion And 27 Tooth Gear GEAR SET (23/27) (1.24:1) Includes 23 Tooth Pinion And 27 Tooth Gear |
AR | |
| 25 | 849175A1 |
НАБОР ШЕСТЕРЕН (21/27) (1.35:1) Includes 21 Tooth Pinion And 27 Tooth Gear GEAR SET (21/27) (1.35:1) Includes 21 Tooth Pinion And 27 Tooth Gear |
AR | |
| 25 | 848787A1 |
НАБОР ШЕСТЕРЕН (19/27) (1.47:1) Includes 19 Tooth Pinion And 27 Tooth Gear GEAR SET (19/27) (1.47:1) Includes 19 Tooth Pinion And 27 Tooth Gear |
AR | |
| 25 | 849840A1 |
НАБОР ШЕСТЕРЕН (19/29) (1.62:1) Includes 19 Tooth Pinion And 29 Tooth Gear GEAR SET (19/29) (1.62:1) Includes 19 Tooth Pinion And 29 Tooth Gear |
AR | |
| 26 | 846392 |
ГАЙКА (1.25-16 ПРВ) NUT (1.25-16 RH) |
1 | |
| 3 | 848043 |
КРЕСТОВИНА/ПОДШИПНИК В СБОРЕ CROSS/BEARING ASSEMBLY |
2 | superseded |
| 4 | 34933 |
ГАЙКА (.437-20), нержавеющая сталь NUT (.437-20) Stainless Steel |
4 | superseded |
| 5 | 842922 |
ШАЙБА (0.450 x 0.750 x 0.060), нержавеющая сталь WASHER (.450 x .750 x .060) Stainless Steel |
4 | |
| 6 | 847307A1 |
ФИКСАТОР В СБОРЕ RETAINER ASSEMBLY |
1 | |
| 7 | 846495 |
УПЛОТНЕНИЕ SEAL |
1 | |
| 8 | 847379 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (3.237 x 0.090) O-RING (3.237 x .090) |
1 | |
| 9 | 847377T1 |
НАБОР ПОДШИПНИКОВ Колпачок и конус BEARING SET Cup And Cone |
1 |
