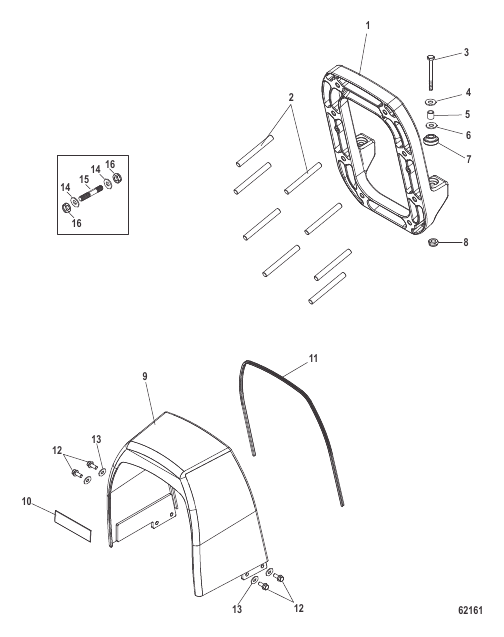

Transom Plate Inner and Outer Cowl
Parts (18)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 841955001 |
ТРАНЦЕВАЯ ПЛИТА Внутр. TRANSOM PLATE Inner |
1 | discontinued |
| 10 | 8M0048295 |
НАКЛЕЙКА Серия M DECAL M Series |
1 | |
| 10 | 8M0121133 |
НАКЛЕЙКА Mercury DECAL Mercury |
1 | |
| 10 | 8M8020346 |
НАКЛЕЙКА NXT1 DECAL NXT1 |
1 | discontinued |
| 11 | 8M8021103 |
ВЫСТУП (3.75 фт.), резина EXTRUSION (3.75 Feet) Rubber |
1 | superseded |
| 12 | 805559 |
ВИНТ (0.375-16 x 0.875), нержавеющая сталь SCREW (.375-16 x .875) Stainless Steel |
4 | |
| 13 | 823933 |
ШАЙБА (0.405 x 0.760 x 0.060), Delrin WASHER (.405 x .760 x .060) Delrin |
4 | |
| 14 | 37828 |
ШАЙБА (0.390 x 0.625 x 0.062), нержавеющая сталь WASHER (.390 x .625 x .062) Stainless Steel |
2 | |
| 15 | 818824 |
ШПИЛЬКА (0.375-16/0.375-24 x 1.590) Ground STUD (.375-16/.375-24 x 1.590) Ground |
1 | |
| 16 | 46335 |
ГАЙКА (.375-24) NUT (.375-24) |
2 | |
| 2 | 846384 |
ШПИЛЬКА (0.625-11/0.625-18 x 5.750) STUD (.625-11/.625-18 x 5.750) |
8 | |
| 3 | 97934 |
ВИНТ (0.500-20 x 5.370), специальный SCREW (.500-20 x 5.370) Special |
2 | superseded |
| 4 | 35777 |
ШАЙБА (0.5156 x 1.375 x 0.125), алюминий WASHER (.5156 x 1.375 x .125) Aluminum |
2 | |
| 5 | 99299 |
ПРОСТАВКА (0.520 x 0.870 x 0.630) SPACER (.520 x .870 x .630) |
2 | |
| 6 | 32834 |
ШАЙБА (0.9375 x 1.750 x 0.172) WASHER (.9375 x 1.750 x .172) |
2 | |
| 7 | 8M0000066 |
ПРОСТАВКА SPACER |
2 | |
| 8 | 863332 |
ГАЙКА (0.500-20), алюминий NUT (.500-20) Aluminum |
2 | |
| 9 | 8M0050504 |
КАРТЕР В СБОРЕ Транец COWL ASSEMBLY Transom |
1 |
