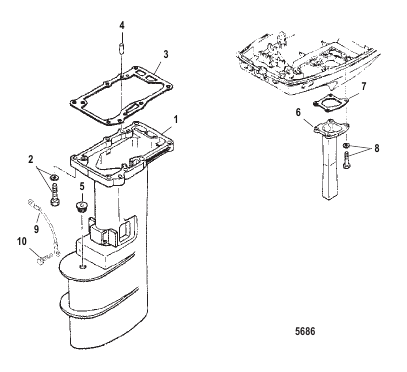

Driveshaft Housing
Parts (14)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 804908A00 |
КОМПЛЕКТ ПРОКЛАДОК Нижний блок [0R784558] & Below GASKET SET Lower Unit [0R784558] & Below |
1 | superseded |
| - | 8M0130156 |
КОМПЛЕКТ ПРОКЛАДОК [0R784559] & Up GASKET SET [0R784559] & Up |
1 | |
| 1 | 804901 |
КОРПУС Карданный вал (Short) HOUSING Driveshaft (Short) |
1 | superseded |
| 1 | 804902 |
КОРПУС Карданный вал (Long) HOUSING Driveshaft (Long) |
1 | superseded |
| 10 | 8230427 |
БОЛТ В СБОРЕ (M6 x 12) BOLT ASSEMBLY (M6 x 12) |
1 | |
| 2 | 82304230 |
БОЛТ [0N299289] & Below BOLT [0N299289] & Below |
6 | superseded |
| 2 | 8M0149895 |
BOLT WASHER KIT [0N299290] & Up BOLT WASHER KIT [0N299290] & Up |
6 | |
| 3 | 80366313 |
ПРОКЛАДКА GASKET |
1 | superseded |
| 4 | 16119002 |
ШТИФТ Штифт PIN Dowel |
2 | |
| 5 | 161181 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | |
| 6 | 8037271 |
ТРУБА Выхлоп PIPE Exhaust |
1 | |
| 7 | 8037281 |
ПРОКЛАДКА GASKET |
1 | superseded |
| 8 | 82304231 |
БОЛТ BOLT |
4 | |
| 9 | 878357 |
КАБЕЛЬ В СБОРЕ Заземление CABLE ASSEMBLY Ground |
1 | superseded |
