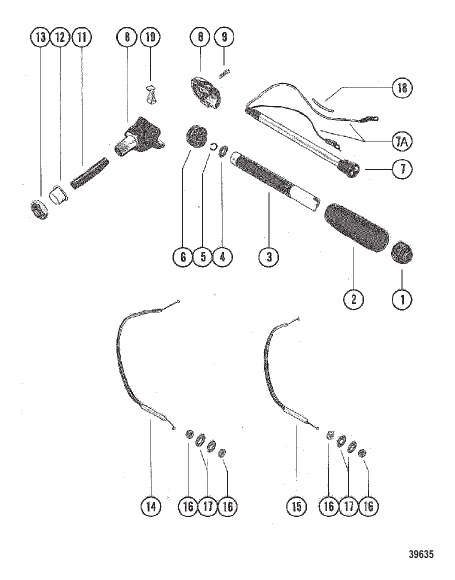

STEERING HANDLE ASSEMBLY
Parts (20)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 55741A1 |
ЧЕХОЛ В СБОРЕ HANDLE BOOT ASSEMBLY HANDLE |
1 | superseded |
| 10 | 70390 |
ФИКСАТОР CABLE RETAINER CABLE |
1 | discontinued |
| 11 | 708571 |
РАЗЪЕДИНИТЕЛЬ CABLE INSULATOR CABLE |
1 | discontinued |
| 12 | 70391 |
ВТУЛКА HANDLE BRACKET BUSHING HANDLE BRACKET |
1 | discontinued |
| 13 | 73784 |
ГАЙКА HANDLE BRACKET NUT HANDLE BRACKET |
1 | discontinued |
| 14 | 70571 |
КАБЕЛЬ THROTTLE ADVANCE [US-5805430/Australia-8068064/Belgium-9294810/Canada-7166327] & Below CABLE THROTTLE ADVANCE [US-5805430/Australia-8068064/Belgium-9294810/Canada-7166327] & Below |
1 | superseded |
| 14&15 | 92791 |
КАБЕЛЬ THROTTLE ADVANCE/ RETARD [US-5805431/Belgium-9294811/Canada-7166328] & Up CABLE THROTTLE ADVANCE/ RETARD [US-5805431/Belgium-9294811/Canada-7166328] & Up |
2 | discontinued |
| 15 | 70572 |
КАБЕЛЬ THROTTLE RETARD [US-5805430/Australia-8068064/Belgium-9294810/Canada-7166327] & Below CABLE THROTTLE RETARD [US-5805430/Australia-8068064/Belgium-9294810/Canada-7166327] & Below |
1 | superseded |
| 16 | 21825 |
ГАЙКА (0.250-28) THROTTLE CABLE NUT (.250-28) THROTTLE CABLE |
4 | |
| 17 | 37998 |
ШАЙБА THROTTLE CABLE WASHER THROTTLE CABLE |
4 | |
| 18 | 28655 |
РУКАВ STOP SWITCH HARNESS SLEEVE STOP SWITCH HARNESS |
1 | superseded |
| 2 | 70382 |
РУКОЯТКА HANDLE GRIP HANDLE |
1 | discontinued |
| 3 | 70383 |
ARM HANDLE ARM HANDLE |
1 | discontinued |
| 4 | 31433 |
ШАЙБА HANDLE WASHER HANDLE |
1 | discontinued |
| 5 | 70384 |
КОЛЬЦО Стопор HANDLE RING Retaining HANDLE |
1 | discontinued |
| 6 | 70386 |
ШКИВ STEERING HANDLE PULLEY STEERING HANDLE |
1 | discontinued |
| 7 | 70385 |
ВАЛ HANDLE SHAFT HANDLE |
1 | discontinued |
| 7A | 70671A1 |
ЖГУТ ПРОВОДОВ В СБОРЕ STOP SWITCH HARNESS ASSEMBLY STOP SWITCH |
1 | discontinued |
| 8 | 70389A2 |
КРОНШТЕЙН В СБОРЕ HANDLE BRACKET ASSEMBLY HANDLE |
1 | discontinued |
| 9 | 37978 |
ВИНТ (№10-32 x 0.750), нержавеющая сталь HANDLE BRACKET SCREW (#10-32 x .750) Stainless Steel HANDLE BRACKET |
2 |
