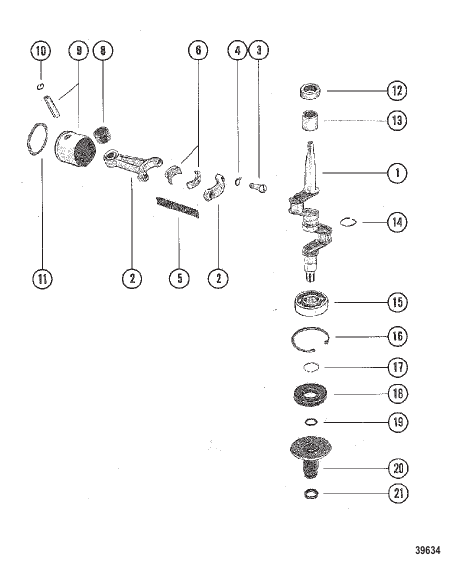

CRANKSHAFT, PISTON AND CONNECTING ROD
Parts (22)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 77586A78 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | discontinued |
| 1 | 5549 |
КОЛЕНЧАТЫЙ ВАЛ CRANKSHAFT |
1 | discontinued |
| 10 | 68950 |
СТОПОРНОЕ КОЛЬЦО PISTON LOCK RING PISTON |
4 | discontinued |
| 11 | 70175A12 |
НАБОР КОЛЕЦ Поршень RING SET Piston |
1 | discontinued |
| 12 | 30530 |
УПЛОТНЕНИЕ Масло CRANKSHAFT - UPPER SEAL Oil CRANKSHAFT - UPPER |
1 | discontinued |
| 13 | 78099 |
ПОДШИПНИК Ролик CRANKSHAFT - UPPER BEARING Roller CRANKSHAFT - UPPER |
1 | discontinued |
| 14 | 71841 |
КОЛЬЦО CRANKSHAFT RING CRANKSHAFT |
1 | discontinued |
| 15 | 69389 |
ПОДШИПНИК Шарик CRANKSHAFT - LOWER BEARING Ball CRANKSHAFT - LOWER |
1 | discontinued |
| 16 | 68952 |
КОЛЬЦО Стопор BALL BEARING -LARGE RING Retaining BALL BEARING -LARGE |
1 | discontinued |
| 17 | 27275 |
КОЛЬЦО Стопор BALL BEARING - SMALL RING Retaining BALL BEARING - SMALL |
1 | discontinued |
| 18 | 77494 |
УПЛОТНЕНИЕ Масло CRANKSHAFT SEAL Oil CRANKSHAFT |
1 | discontinued |
| 19 | 62706 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.426 x 0.070) CRANKSHAFT O-RING (.426 x .070) CRANKSHAFT |
1 | |
| 2 | 5547A5 |
СОЕДИНИТЕЛЬНЫЙ СТЕРЖЕНЬ В СБОРЕ CONNECTING ROD ASSEMBLY |
2 | discontinued |
| 20 | 70786A1 |
СОЕДИНИТЕЛЬНАЯ МУФТА В СБОРЕ CRANKSHAFT COUPLING ASSEMBLY CRANKSHAFT |
1 | discontinued |
| 21 | 76266 |
УПЛОТНЕНИЕ COUPLING SEAL COUPLING |
1 | discontinued |
| 3 | 72455 |
ВИНТ CONNECTING ROD SCREW CONNECTING ROD |
4 | discontinued |
| 4 | 72454 |
ЛЕПЕСТКОВАЯ ШАЙБА CONNECTING ROD SCREW TAB WASHER CONNECTING ROD SCREW |
4 | discontinued |
| 5 | 68944 |
ПОДШИПНИК Игла CONNECTING ROD BEARING Needle CONNECTING ROD |
50 | discontinued |
| 6 | 68953A1 |
ОТДЕЛКА В СБОРЕ CRANKPIN LINER ASSEMBLY CRANKPIN |
2 | discontinued |
| 8 | 68949 |
ПОДШИПНИК Ролик CONNECTING ROD - PISTON PIN BEARING Roller CONNECTING ROD - PISTON PIN |
2 | discontinued |
| 9 | 6248A2 |
ПОРШЕНЬ В СБОРЕ [US-5805430/Australia-8068064/Belgium-9294810/Canada-7166327] & Below PISTON ASSEMBLY [US-5805430/Australia-8068064/Belgium-9294810/Canada-7166327] & Below |
2 | superseded |
| 9 | 8076A2 |
ПОРШЕНЬ В СБОРЕ [US-5805431/Belgium-9294811/Canada-7166328] & Up PISTON ASSEMBLY [US-5805431/Belgium-9294811/Canada-7166328] & Up |
2 | discontinued |
