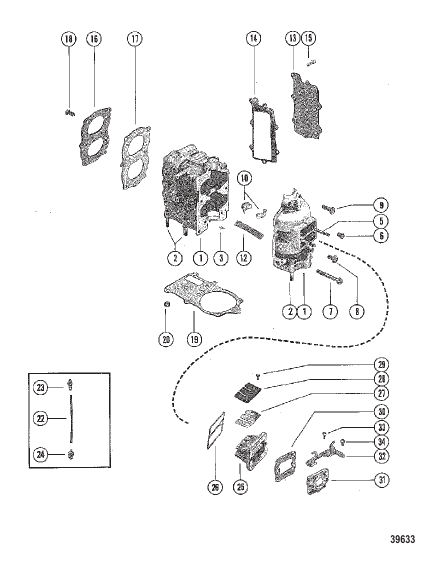

CYLINDER BLOCK AND CRANKCASE ASSEMBLY
Parts (33)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 77586A78 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | discontinued |
| - | 72530A78 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ POWERHEAD ASSEMBLY |
1 | discontinued |
| 1 | 7713A2 |
БЛОК ЦИЛИНДРА В СБОРЕ CYLINDER BLOCK ASSEMBLY |
1 | discontinued |
| 10 | 68953A1 |
ОТДЕЛКА В СБОРЕ CYLINDER BLOCK LINER ASSEMBLY CYLINDER BLOCK |
1 | discontinued |
| 12 | 71840 |
ПОДШИПНИК Игла CENTER MAIN BEARING Needle CENTER MAIN |
25 | discontinued |
| 13 | 77585 |
КРЫШКА EXHAUST MANIFOLD COVER EXHAUST MANIFOLD |
1 | discontinued |
| 14 | 77586 |
ПРОКЛАДКА EXHAUST MANIFOLD COVER GASKET EXHAUST MANIFOLD COVER |
1 | discontinued |
| 15 | 32228 |
ВИНТ (№10-32 x 0.625) EXHAUST MANIFOLD COVER SCREW (#10-32 x .625) EXHAUST MANIFOLD COVER |
10 | |
| 16 | 5546 |
КРЫШКА CYLINDER BLOCK COVER CYLINDER BLOCK |
1 | discontinued |
| 17 | 68942 |
ПРОКЛАДКА CYLINDER BLOCK COVER GASKET CYLINDER BLOCK COVER |
1 | discontinued |
| 18 | 32228 |
ВИНТ (№10-32 x 0.625) CYLINDER BLOCK COVER SCREW (#10-32 x .625) CYLINDER BLOCK COVER |
6 | |
| 19 | 68941 |
ПРОКЛАДКА BLOCK TO BOTTOM COWL GASKET BLOCK TO BOTTOM COWL |
1 | discontinued |
| 2 | 72809 |
ШПИЛЬКА (0.250-20/0.250-28 x 1.620) POWERHEAD STUD (.250-20/.250-28 x 1.620) POWERHEAD |
6 | superseded |
| 20 | 24652 |
ГАЙКА (0.250-28) POWERHEAD STUDS NUT (.250-28) POWERHEAD STUDS |
6 | discontinued |
| 22 | 5493576 |
ТРУБА BLEED TUBE BLEED |
1 | superseded |
| 23 | 65857 |
СОЕДИНИТЕЛЬ ADAPTOR CONNECTOR ADAPTOR |
1 | superseded |
| 24 | 64871A2 |
ОБРАТНЫЙ КЛАПАН CRANKCASE CHECK VALVE CRANKCASE |
1 | discontinued |
| 25 | 69498 |
БЛОК С ПЛАСТИНЧАТЫМИ КЛАПАНАМИ REED BLOCK |
1 | discontinued |
| 26 | 70415 |
ПРОКЛАДКА CRANKCASE TO REED BLOCK GASKET CRANKCASE TO REED BLOCK |
1 | discontinued |
| 27 | 69499A1 |
ПЛАСТИНЫ В СБОРЕ REED ASSEMBLY |
1 | discontinued |
| 28 | 69500 |
СТОП Пластинчатый клапан STOP Reed |
2 | discontinued |
| 29 | 28430 |
ВИНТ (№6-32 x 0.25) REED AND REED STOP SCREW (#6-32 x .25) REED AND REED STOP |
6 | |
| 3 | 85500 |
ШТИФТ Штифт (0.187 x 0.530) CYLINDER BLOCK PIN Dowel (.187 x .530) CYLINDER BLOCK |
2 | superseded |
| 30 | 70416 |
ПРОКЛАДКА REED BLOCK TO ADAPTOR GASKET REED BLOCK TO ADAPTOR |
1 | discontinued |
| 31 | 70420 |
ПЕРЕХОДНИК CARBURETOR TO REED BLOCK ADAPTER CARBURETOR TO REED BLOCK |
1 | discontinued |
| 32 | 79746 |
КРОНШТЕЙН CABLE MOUNTING BRACKET CABLE MOUNTING |
1 | discontinued |
| 33 | 69022 |
ВИНТ (№10-32 x 0.500), нержавеющая сталь BRACKET TO ADAPTOR SCREW (#10-32 x .500) Stainless Steel BRACKET TO ADAPTOR |
2 | |
| 34 | 20055 |
ВИНТ (№10-32 x 0.375) CABLE MOUNTING BRACKET SCREW (#10-32 x .375) CABLE MOUNTING BRACKET |
1 | discontinued |
| 5 | 20353 |
ШПИЛЬКА (0.250-28 x 1.750) REED BLOCK AND CARBURETOR STUD (.250-28 x 1.750) REED BLOCK AND CARBURETOR |
2 | discontinued |
| 6 | 56800 |
ПРОБКА Труба (0.0625-27) CYLINDER BLOCK PLUG Pipe (.0625-27) CYLINDER BLOCK |
1 | |
| 7 | 70732 |
ВИНТ (0.250-20 x 2.00) CRANKCASE TO CYLINDER BLOCK SCREW (.250-20 x 2.00) CRANKCASE TO CYLINDER BLOCK |
2 | |
| 8 | 28635 |
ВИНТ (0.250-20 x 0.620), нержавеющая сталь CRANKCASE TO CYLINDER BLOCK SCREW (.250-20 x .620) Stainless Steel CRANKCASE TO CYLINDER BLOCK |
2 | |
| 9 | 28667 |
ВИНТ (0.250-20 x 1.00), нержавеющая сталь CRANKCASE TO CYLINDER BLOCK SCREW (.250-20 x 1.00) Stainless Steel CRANKCASE TO CYLINDER BLOCK |
2 |
