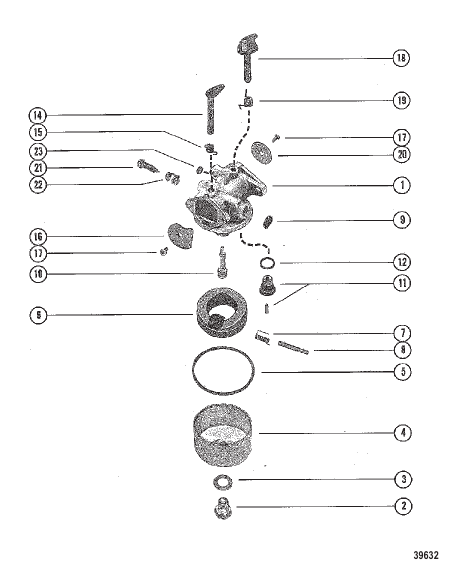

CARBURETOR ASSEMBLY
Parts (29)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 7262 |
КОМПЛЕКТ ПРОКЛАДОК Ремонт карбюратора GASKET SET Carburetor Repair |
1 | discontinued |
| - | 7263 |
РЕМОНТНЫЙ КОМПЛЕКТ ДЕТАЛЕЙ (LMO-3) REPAIR PARTS KIT (LMO-3) |
1 | discontinued |
| - | 8672 |
РЕМОНТНЫЙ КОМПЛЕКТ ДЕТАЛЕЙ (LMO-4) REPAIR PARTS KIT (LMO-4) |
1 | discontinued |
| -- | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО CAP PLUG, CARBURETOR NOT SOLD SEPARATE CAP PLUG, CARBURETOR |
2 | |
| 1 | 7069 |
КАРБЮРАТОР (LMO-3) CARBURETOR (LMO-3) |
1 | superseded |
| 1 | 8402 |
КАРБЮРАТОР (LMO-4) CARBURETOR (LMO-4) |
1 | discontinued |
| 10 | 5900 |
ШТУЦЕР (LMO-3) NOZZLE (LMO-3) |
1 | discontinued |
| 10 | 8671 |
ШТУЦЕР (LMO-4) NOZZLE (LMO-4) |
1 | discontinued |
| 11 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО INLET NEEDLE, SEAT AND GASKET NOT SOLD SEPARATE INLET NEEDLE, SEAT AND GASKET |
1 | |
| 12 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО GASKET, INLET NEEDLE AND SEAT NOT SOLD SEPARATE GASKET, INLET NEEDLE AND SEAT |
1 | |
| 14 | 5896 |
ВАЛ CHOKE SHAFT CHOKE |
1 | discontinued |
| 15 | 5905 |
ПРУЖИНА CHOKE RETURN SPRING CHOKE RETURN |
1 | discontinued |
| 16 | 5897 |
КЛАПАН CHOKE VALVE CHOKE |
1 | discontinued |
| 17 | 5902 |
ВИНТ (№6-32 x 0.187) VALVE SCREW (#6-32 x .187) VALVE |
2 | discontinued |
| 18 | 5894 |
ВАЛ THROTTLE SHAFT THROTTLE |
1 | discontinued |
| 19 | 5903 |
ПРУЖИНА THROTTLE RETURN SPRING THROTTLE RETURN |
1 | discontinued |
| 2 | 6043 |
ФИКСАТОР JET (.041) RETAINER JET (.041) |
1 | discontinued |
| 20 | 6480 |
КЛАПАН THROTTLE (LMO-3) VALVE THROTTLE (LMO-3) |
1 | superseded |
| 20 | 8670 |
КЛАПАН THROTTLE (LMO-4) VALVE THROTTLE (LMO-4) |
1 | discontinued |
| 21 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО IDLE NNEDLE NOT SOLD SEPARATE IDLE NNEDLE |
1 | |
| 22 | 6103 |
ПРУЖИНА IDLE NEEDLE SPRING IDLE NEEDLE |
1 | discontinued |
| 23 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО WLECH PLUG, CARBURETOR (5/16") NOT SOLD SEPARATE WLECH PLUG, CARBURETOR (5/16") |
1 | |
| 3 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО GASKET, JET RETAINER NOT SOLD SEPARATE GASKET, JET RETAINER |
2 | |
| 4 | 8155 |
КАМЕРА Топливо BOWL Fuel |
1 | discontinued |
| 5 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО GASKET, FUEL BOWL NOT SOLD SEPARATE GASKET, FUEL BOWL |
1 | |
| 6 | 5898 |
ПОПЛАВОК FLOAT |
1 | discontinued |
| 7 | 5904 |
ПРУЖИНА FLOAT SPRING FLOAT |
1 | discontinued |
| 8 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО FLOAT PIN NOT SOLD SEPARATE FLOAT PIN |
1 | |
| 9 | 4805 |
ЭКРАН FILTER SCREEN FILTER |
1 | discontinued |
