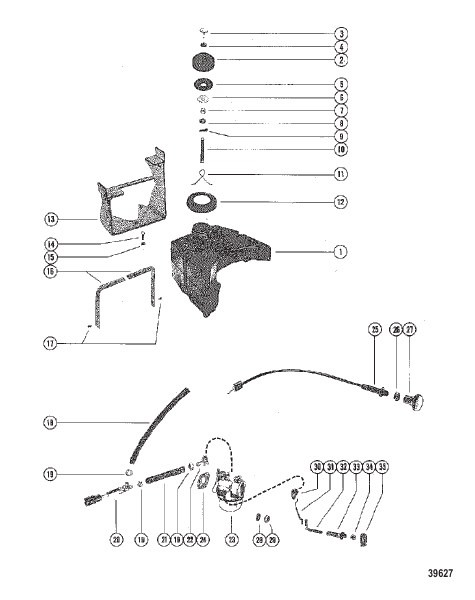

FUEL TANK, FUEL LINES AND CARBURETOR
Parts (40)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 93587 |
ВТУЛКА FUEL TANK BUSHING FUEL TANK |
1 | discontinued |
| - | 93588 |
КОЛЕНЧАТЫЙ FUEL TANK - W/ FILTER SCREEN ELBOW FUEL TANK - W/ FILTER SCREEN |
1 | discontinued |
| -- | 76623 |
КРОНШТЕЙН FUEL TANK (LONG SHAFT) BRACKET FUEL TANK (LONG SHAFT) |
1 | discontinued |
| 1 | 8083A2 |
БАК В СБОРЕ Топливо TANK ASSEMBLY Fuel |
1 | discontinued |
| 10 | 752373 |
ЦЕПЬ FUEL CAP CHAIN FUEL CAP |
1 | discontinued |
| 11 | 85767 |
ПРУЖИНА FUEL CAP - RETAINING SPRING FUEL CAP - RETAINING |
1 | discontinued |
| 12 | 78578 |
ПРОКЛАДКА FUEL TANK TO COWL GASKET FUEL TANK TO COWL |
1 | discontinued |
| 13 | 78579 |
КРОНШТЕЙН FUEL TANK AND IGNITION COIL BRACKET FUEL TANK AND IGNITION COIL |
1 | discontinued |
| 14 | 37571 |
ВИНТ (0.190-32 x 0.500) BRACKET TO CYLINDER BLOCK SCREW (.190-32 x .500) BRACKET TO CYLINDER BLOCK |
3 | discontinued |
| 15 | 45812 |
ГАЙКА (№10-32), нержавеющая сталь BRACKET SCREW NUT (#10-32) Stainless Steel BRACKET SCREW |
3 | superseded |
| 16 | 75689A1 |
СКОБА В СБОРЕ FUEL TANK ATTACHING STRAP ASSEMBLY FUEL TANK ATTACHING |
1 | discontinued |
| 17 | 26668 |
ВИНТ STRAP ASSEMBLY TO FUEL TANK BRACKET SCREW STRAP ASSEMBLY TO FUEL TANK BRACKET |
2 | discontinued |
| 18 | 31583109 |
ТРУБОПРОВОД Топливо FUEL TANK TO VALVE (8") LINE Fuel FUEL TANK TO VALVE (8") |
1 | superseded |
| 19 | 68424 |
ЗАЖИМ FUEL LINE ATTACHING CLAMP FUEL LINE ATTACHING |
4 | discontinued |
| 2 | 78573A1 |
ПРОБКА FUEL CAP FUEL |
1 | discontinued |
| 20 | 89398 |
КЛАПАН FUEL SHUT OFF VALVE FUEL SHUT OFF |
1 | discontinued |
| 21 | 31583109 |
ТРУБОПРОВОД Топливо VALVE TO CARBURETOR (4") LINE Fuel VALVE TO CARBURETOR (4") |
1 | superseded |
| 22 | 64704 |
ФИТИНГ CARBURETOR 90 Degree - Without Fuel Pump FITTING CARBURETOR 90 Degree - Without Fuel Pump |
1 | superseded |
| 22 | 96858 |
ФИТИНГ CARBURETOR 37 Degree - With Fuel Pump FITTING CARBURETOR 37 Degree - With Fuel Pump |
1 | discontinued |
| 23 | 7069 |
КАРБЮРАТОР (LMO-3) CARBURETOR (LMO-3) |
1 | superseded |
| 23 | 8402 |
КАРБЮРАТОР (LMO-4) CARBURETOR (LMO-4) |
1 | discontinued |
| 24 | 70417 |
ПРОКЛАДКА CARBURETOR MOUNTING GASKET CARBURETOR MOUNTING |
1 | discontinued |
| 25 | 70557 |
КАБЕЛЬ Обогатитель CABLE Choke |
1 | discontinued |
| 26 | 78045 |
ГАЙКА LOCKING - CHOKE CABLE NUT LOCKING - CHOKE CABLE |
1 | discontinued |
| 27 | 86874 |
КНОПКА CHOKE CABLE BUTTON CHOKE CABLE |
1 | discontinued |
| 28 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь CARBURETOR STUD WASHER (.281 x .500 x .060) Stainless Steel CARBURETOR STUD |
2 | superseded |
| 29 | 36069 |
ГАЙКА CARBURETOR STUD NUT CARBURETOR STUD |
2 | |
| 3 | 70298 |
ВИНТ VENT - FUEL CAP SCREW VENT - FUEL CAP |
1 | discontinued |
| 30 | 78049 |
РЫЧАГ IDLE ADJUSTMENT LEVER IDLE ADJUSTMENT |
1 | discontinued |
| 31 | 78046 |
СОЕДИНИТЕЛЬ IDLE ADJUSTMENT LINK IDLE ADJUSTMENT |
1 | discontinued |
| 32 | 78048 |
ВАЛ IDLE ADJUSTMENT SHAFT IDLE ADJUSTMENT |
1 | discontinued |
| 33 | 78047 |
РУКАВ IDLE ADJUSTMENT SLEEVE IDLE ADJUSTMENT |
1 | discontinued |
| 34 | 78045 |
ГАЙКА CHOKE KNOB NUT CHOKE KNOB |
1 | discontinued |
| 35 | 92434A2 |
РУЧКА CHOKE KNOB CHOKE |
1 | discontinued |
| 4 | 49221 |
ШАЙБА (0.187 x 0.500 x 0.062), неопрен VENT SCREW WASHER (.187 x .500 x .062) Neoprene VENT SCREW |
1 | superseded |
| 5 | 78577 |
ПРОКЛАДКА FUEL CAP GASKET FUEL CAP |
1 | discontinued |
| 6 | 38255 |
ШАЙБА FUEL CAP WASHER FUEL CAP |
1 | discontinued |
| 7 | 22227 |
ПРУЖИНА FUEL CAP SPRING FUEL CAP |
1 | discontinued |
| 8 | 57029 |
ШАЙБА FUEL CAP WASHER FUEL CAP |
1 | superseded |
| 9 | 21071 |
ШПЛИНТ FUEL CAP COTTER PIN FUEL CAP |
1 | superseded |
