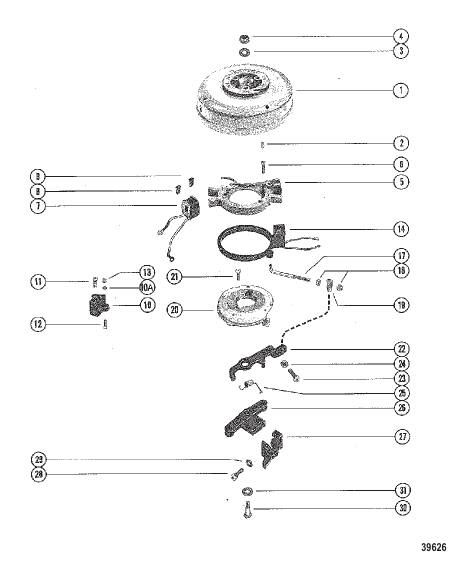

FLYWHEEL AND STATOR
Parts (31)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 7933A2 |
МАХОВИК В СБОРЕ FLYWHEEL ASSEMBLY |
1 | discontinued |
| 10 | 69348 |
КЛЕММНАЯ КОЛОДКА STATOR TERMINAL BLOCK STATOR |
1 | discontinued |
| 10A | 58308 |
СТОПОРНАЯ ШАЙБА Внутр. (№10) TERMINAL BLOCK LOCKWASHER Internal (#10) TERMINAL BLOCK |
1 | discontinued |
| 11 | 22654 |
ВИНТ (0.190-32 x 0.38) LEADS TO TERMINAL BLOCK SCREW (.190-32 x .38) LEADS TO TERMINAL BLOCK |
1 | discontinued |
| 12 | 69347 |
ВИНТ TERMINAL BLOCK TO STATOR (5/8") SCREW TERMINAL BLOCK TO STATOR (5/8") |
1 | discontinued |
| 13 | 46438 |
ГАЙКА (№10-32) TERMINAL BLOCK SCREW NUT (#10-32) TERMINAL BLOCK SCREW |
1 | |
| 14 | 70426A3 |
ТРИГГЕР В СБОРЕ TRIGGER ASSEMBLY |
1 | discontinued |
| 17 | 70414 |
СТЕРЖЕНЬ ТЯГИ TRIGGER TO SPARK LEVER LINK ROD TRIGGER TO SPARK LEVER |
1 | discontinued |
| 18 | 68219 |
ГАЙКА (№10-32), нержавеющая сталь ADJUSTING LINK ROD NUT (#10-32) Stainless Steel ADJUSTING LINK ROD |
2 | |
| 19 | 33973 |
ШАРНИР LINK ROD SWIVEL LINK ROD |
1 | discontinued |
| 2 | 20094 |
КЛЮЧ Сегментная шпонка FLYWHEEL RIVE KEY Woodruff FLYWHEEL RIVE |
1 | |
| 20 | 70428 |
КРОНШТЕЙН STATOR MOUNTING BRACKET STATOR MOUNTING |
1 | discontinued |
| 21 | 20512 |
ВИНТ STATOR MOUNTING BRACKET (7/16") SCREW STATOR MOUNTING BRACKET (7/16") |
2 | superseded |
| 22 | 70422 |
РЫЧАГ SPARK LEVER SPARK |
1 | discontinued |
| 23 | 62802 |
ВИНТ ADJUSTNG - SPARK LEVER (1 1/8") SCREW ADJUSTNG - SPARK LEVER (1 1/8") |
1 | discontinued |
| 24 | 21923 |
ГАЙКА (8-32) ADJUSTING SCREW NUT ( 8-32) ADJUSTING SCREW |
1 | superseded |
| 25 | 70418 |
ПРУЖИНА THROTTLE LEVER SPRING THROTTLE LEVER |
1 | discontinued |
| 26 | 70424 |
РЫЧАГ Дроссельная заслонка LEVER Throttle |
1 | discontinued |
| 27 | 70429 |
КУЛАЧОК Дроссельная заслонка CAM Throttle |
1 | discontinued |
| 28 | 38055 |
ВИНТ (0.190-32 x 0.620) THROTTLE CAM TO THROTTLE LEVER SCREW (.190-32 x .620) THROTTLE CAM TO THROTTLE LEVER |
1 | discontinued |
| 29 | 56681 |
ШАЙБА (0.203 x 0.500 x 0.032) THROTTLE CAM SCREW WASHER (.203 x .500 x .032) THROTTLE CAM SCREW |
1 | superseded |
| 3 | 25970 |
ШАЙБА FLYWHEEL WASHER FLYWHEEL |
1 | superseded |
| 30 | 38515 |
ВИНТ SHOULDER (7/8") SCREW SHOULDER (7/8") |
1 | discontinued |
| 31 | 21631 |
ШАЙБА (0.255 x 0.625 x 0.0312) SHOULDER SCREW WASHER (.255 x .625 x .0312) SHOULDER SCREW |
1 | superseded |
| 4 | 20509 |
ГАЙКА FLYWHEEL NUT FLYWHEEL |
1 | superseded |
| 5 | 5566A5 |
СТАТОР В СБОРЕ STATOR ASSEMBLY |
1 | discontinued |
| 6 | 66707 |
ВИНТ STATOR TO MOUNTING BRACKET (7/8") SCREW STATOR TO MOUNTING BRACKET (7/8") |
3 | discontinued |
| 7 | 5589A1 |
КАТУШКА В СБОРЕ (2 1/4" AND 4 1/4" LEADS) COIL ASSEMBLY (2 1/4" AND 4 1/4" LEADS) |
1 | discontinued |
| 7 | 5590A1 |
КАТУШКА В СБОРЕ (3 3/8" AND 4 3/8" LEADS) COIL ASSEMBLY (3 3/8" AND 4 3/8" LEADS) |
1 | discontinued |
| 8 | 59538 |
ЗАЖИМ COIL RETAINING CLIP COIL RETAINING |
2 | discontinued |
| 9 | 65927 |
ЗАЖИМ COIL RETAINING CLIP COIL RETAINING |
2 | discontinued |
