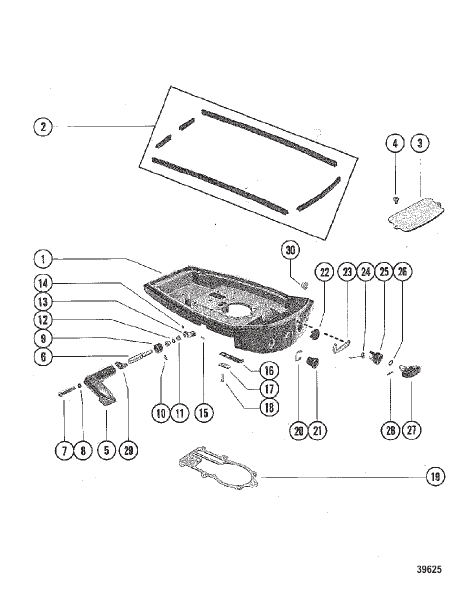

BOTTOM COWL
Parts (34)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 77586A78 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | discontinued |
| 1 | 7603 |
НИЖНИЙ КОЖУХ BOTTOM COWL |
1 | discontinued |
| 10 | 25905 |
ШТИФТ CAM TO SHIFT SHAFT PIN CAM TO SHIFT SHAFT |
1 | discontinued |
| 11 | 26856 |
ВТУЛКА SHIFT SHAFT BUSHING SHIFT SHAFT |
2 | |
| 12 | 20415 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО SHIFT SHAFT O-RING SHIFT SHAFT |
1 | superseded |
| 13 | 72733 |
ARM SHIFT ARM SHIFT |
1 | discontinued |
| 14 | 72734 |
УСТАНОВОЧНЫЙ ВИНТ (№10-32 x 0.310) SHIFT ARM SET SCREW (#10-32 x .310) SHIFT ARM |
1 | |
| 15 | 21071 |
ШПЛИНТ SHIFT SHAFT COTTER PIN SHIFT SHAFT |
1 | superseded |
| 16 | 39627 |
ПРУЖИНА DETENT SPRING DETENT |
1 | |
| 17 | 39601 |
ПЛАСТИНА DETENT SPRING PLATE DETENT SPRING |
1 | discontinued |
| 18 | 25764 |
ВИНТ (0.190-32 x 0.50) DETENT SPRING TO BOTTOM COWL SCREW (.190-32 x .50) DETENT SPRING TO BOTTOM COWL |
2 | |
| 19 | 68940 |
ПРОКЛАДКА DRIVESHAFT HSG./BOTTOM COWL [US-5805430/Australia-8068064/Belgium-9294810/Canada-7166327] & Below GASKET DRIVESHAFT HSG./BOTTOM COWL [US-5805430/Australia-8068064/Belgium-9294810/Canada-7166327] & Below |
1 | superseded |
| 19 | 92874 |
ПРОКЛАДКА DRIVESHAFT HSG./BOTTOM COWL [US-5805431/Belgium-9294811/Canada-7166328] & Up GASKET DRIVESHAFT HSG./BOTTOM COWL [US-5805431/Belgium-9294811/Canada-7166328] & Up |
1 | discontinued |
| 2 | 714933 |
ЛИТЬЕ BOTTOM COWL (2"-6 1/2" -15") MOLDING BOTTOM COWL (2"-6 1/2" -15") |
5 | discontinued |
| 20 | 72168 |
КОЛЬЦО RETAINER RING RETAINER |
1 | discontinued |
| 21 | 78303 |
ФИКСАТОР STARTER ROPE [US-5805430/Australia-8068064/Belgium-9294810/Canada-7166327] & Below RETAINER STARTER ROPE [US-5805430/Australia-8068064/Belgium-9294810/Canada-7166327] & Below |
1 | superseded |
| 21 | 70393 |
ФИКСАТОР STARTER ROPE [US-5805431/Belgium-9294811/Canada-7166328] & Up RETAINER STARTER ROPE [US-5805431/Belgium-9294811/Canada-7166328] & Up |
1 | discontinued |
| 22 | 74258 |
ПРОБКА BOTTOM COWL - FUEL ADAPTOR PLUG BOTTOM COWL - FUEL ADAPTOR |
1 | discontinued |
| 23 | 70462 |
ARM LATCH CRANK ARM LATCH CRANK |
1 | discontinued |
| 24 | 70459 |
ПРУЖИНА LATCH CRANK SPRING LATCH CRANK |
1 | discontinued |
| 25 | 75263 |
КОЛЕНЧАТЫЙ ВАЛ FRONT LATCH CRANK FRONT LATCH |
1 | discontinued |
| 26 | 34632 |
ШАЙБА LATCH HANDLE WASHER LATCH HANDLE |
2 | discontinued |
| 27 | 70460 |
РУКОЯТКА LATCH BOTTOM COWL [US-5805430/Australia-8068064/Belgium-9294810/Canada-7166327] & Below HANDLE LATCH BOTTOM COWL [US-5805430/Australia-8068064/Belgium-9294810/Canada-7166327] & Below |
1 | superseded |
| 27 | 92798 |
РУКОЯТКА LATCH BOTTOM COWL [US-5805431/Belgium-9294811/Canada-7166328] & Up HANDLE LATCH BOTTOM COWL [US-5805431/Belgium-9294811/Canada-7166328] & Up |
1 | discontinued |
| 28 | 38489 |
ШТИФТ Ролик LATCH HANDLE TO CRANK PIN Roll LATCH HANDLE TO CRANK |
1 | |
| 29 | 74802 |
СТОП SHIFT ARM STOP SHIFT ARM |
1 | discontinued |
| 3 | 70455 |
КРЫШКА BOTTOM COWL COVER BOTTOM COWL |
1 | discontinued |
| 30 | 93171 |
ВТУЛКА BOTTOM COWL BUSHING BOTTOM COWL |
1 | discontinued |
| 4 | 69079 |
ВИНТ (№10-16 x 0.440) COVER TO BOTTOM COWL SCREW (#10-16 x .440) COVER TO BOTTOM COWL |
2 | |
| 5 | 86055 |
РУКОЯТКА SHIFT HANDLE SHIFT |
1 | superseded |
| 6 | 86056A1 |
ВАЛ SHIFT SHAFT SHIFT |
1 | discontinued |
| 7 | 69560 |
ВИНТ (0.190-32 x 1.250) SHIFT HANDLE TO SHAFT SCREW (.190-32 x 1.250) SHIFT HANDLE TO SHAFT |
1 | |
| 8 | 26996 |
СТОПОРНАЯ ШАЙБА (№10), нержавеющая сталь SHIFT HANDLE SCREW LOCKWASHER (#10) Stainless Steel SHIFT HANDLE SCREW |
1 | |
| 9 | 66414 |
КУЛАЧОК SHIFT DETENT CAM SHIFT DETENT |
1 | discontinued |
