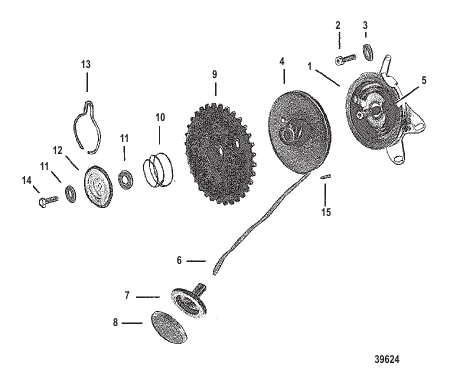

MANUAL STARTER
Parts (15)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 75764 |
КРОНШТЕЙН В СБОРЕ STARTER REWIND BRACKET ASSEMBLY STARTER REWIND |
1 | discontinued |
| 10 | 70288 |
ПРУЖИНА PINION SPRING PINION |
1 | discontinued |
| 11 | 90323 |
ШАЙБА PINION WASHER PINION |
2 | discontinued |
| 12 | 90322 |
ФИКСАТОР PINION SPRING RETAINER PINION SPRING |
1 | discontinued |
| 13 | 90321 |
ПРУЖИНА TORSION - PINION SPRING TORSION - PINION |
1 | discontinued |
| 14 | 79644 |
ВИНТ (0.190-32 x 0.880) SPRING RETAINER SCREW (.190-32 x .880) SPRING RETAINER |
1 | discontinued |
| 15 | 70180 |
ЗАКЛЕПКА STARTER SHEAVE RIVET STARTER SHEAVE |
2 | |
| 2 | 37571 |
ВИНТ (0.190-32 x 0.500) BRACKET TO CYLINDER BLOCK SCREW (.190-32 x .500) BRACKET TO CYLINDER BLOCK |
3 | discontinued |
| 3 | 30164 |
ШАЙБА (0.192 x 0.375 x 0.0312), нержавеющая сталь BRACKET TO CYLINDER BLOCK SCREW WASHER (.192 x .375 x .0312) Stainless Steel BRACKET TO CYLINDER BLOCK SCREW |
2 | |
| 4 | 77568 |
РОЛИК Стартер SHEAVE Starter |
1 | discontinued |
| 5 | 70167 |
ПРУЖИНА STARTER REWIND SPRING STARTER REWIND |
1 | discontinued |
| 6 | 90892A2 |
ТРОС В СБОРЕ Стартер (INCLUDES 2 RIVETS) ROPE ASSEMBLY Starter (INCLUDES 2 RIVETS) |
1 | |
| 7 | 70396 |
РУКОЯТКА STARTER ROPE HANDLE STARTER ROPE |
1 | discontinued |
| 8 | 70394 |
ПРОБКА STARTER HANDLE CAP STARTER HANDLE |
1 | discontinued |
| 9 | 90324 |
ПЕРЕДАЧА Шестерня STARTER REWIND GEAR Pinion STARTER REWIND |
1 | discontinued |
