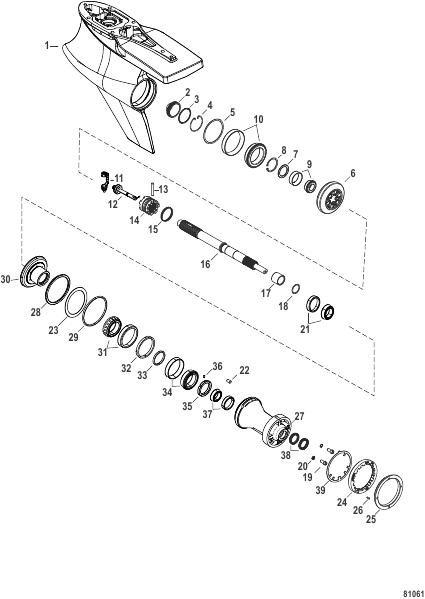

Gear Housing, Prop Shaft, Counter Rotation, Sport Master (1.60 Gear Ratio)
Parts (42)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0237828 |
GEAR HOUSING ASSEMBLY Complete SportMaster Counter Rotation, Short, 1.60, Camber, Silver GEAR HOUSING ASSEMBLY Complete SportMaster Counter Rotation, Short, 1.60, Camber, Silver |
1 | |
| - | 8M0166531 |
GEARCASE SEAL KIT GEARCASE SEAL KIT |
1 | |
| - | 8M0208545 |
GEAR SET 1.60 Rev/Fwd/Pinion GEAR SET 1.60 Rev/Fwd/Pinion |
1 | |
| 1 | 8M0168312 |
GEAR HOUSING ASSEMBLY Basic Sport Master Silver GEAR HOUSING ASSEMBLY Basic Sport Master Silver |
1 | |
| 10 | 8M0142836 |
ПОДШИПНИК Конический ролик BEARING Roller Taper (Cup/Cone) |
1 | |
| 11 | 8M0220880 |
CRANK, Shifter 1/4 Pivot Pin CRANK, Shifter 1/4 Pivot Pin |
1 | |
| 12 | 8M0235942 |
SPOOL SPOOL |
1 | |
| 13 | 8M0045493 |
ШТИФТ PIN Cross |
1 | |
| 14 | 8M0142871 |
МУФТА СЦЕПЛЕНИЯ Скользящий, 6-кулачковый CLUTCH Sliding 6 Jaw |
1 | |
| 15 | 8M0050575 |
ПРУЖИНА SPRING Cross |
1 | |
| 16 | 8M0156191 |
ВАЛ Гребной винт SHAFT Propeller |
1 | |
| 17 | 8M0064306 |
ПРОСТАВКА SPACER Thrust |
1 | |
| 18 | 8M0076745 |
НАБОР ПРОКЛАДОК SHIM SET |
1 | |
| 19 | 8M0071653 |
ВИНТ Специальный SCREW Special, .375-16 UNC |
2 | |
| 2 | 8M0157111 |
PLUG Torpedo PLUG Torpedo |
1 | |
| 20 | 8M0204693 |
SEAL Drain Plug SEAL Drain Plug |
2 | |
| 21 | 8M0148319 |
ПОДШИПНИК Стакан/конус BEARING Roller Taper Cup/Cone |
1 | |
| 22 | 8M0109164 |
ШТИФТ PIN 3/8 Dia x .625 LG |
1 | |
| 23 | 8M0242263 |
SHIM SET SHIM SET |
1 | |
| 24 | 8M0162798 |
RETAINER Bearing Carrier RETAINER Bearing Carrier |
1 | |
| 25 | 8M0180308 |
COVER KIT COVER KIT |
1 | |
| 26 | 8M0036819 |
УСТАНОВОЧНЫЙ ВИНТ (10-32) SET SCREW (10-32) |
1 | |
| 27 | 8M0199860 |
BEARING CARRIER ASSEMBLY BEARING CARRIER ASSEMBLY |
1 | |
| 28 | 8M0161546 |
THRUST RING THRUST RING |
1 | |
| 29 | 8M0000190 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (4.475 x 0.210) O-RING (4.475 x .210) |
1 | |
| 3 | 8M0142854 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING (2.175 x .103) |
1 | |
| 30 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Forward Gear NOT SOLD SEPARATE Forward Gear |
1 | |
| 31 | 8M0199861 |
BEARING Roller Taper (Cup/Cone) BEARING Roller Taper (Cup/Cone) |
1 | |
| 32 | 8M0199862 |
SPACER Bearing Cup SPACER Bearing Cup |
1 | |
| 33 | 8M0199863 |
SPACER SPACER |
1 | |
| 34 | 8M0199864 |
BEARING Roller Taper (Cup/Cone) BEARING Roller Taper (Cup/Cone) |
1 | |
| 35 | 8M0064178 |
КОНТРГАЙКА LOCK NUT |
1 | |
| 36 | 8M0233826 |
SCREW-HALF DOG POINT SET SCREW-HALF DOG POINT SET |
1 | |
| 37 | 8M0148319 |
ПОДШИПНИК Стакан/конус BEARING Roller Taper Cup/Cone |
1 | |
| 38 | 8M0204700 |
SEAL Oil SEAL Oil |
2 | |
| 39 | 8M0191587 |
WASHER Tab WASHER Tab |
1 | |
| 4 | 880719 |
КОЛЬЦО Стопор RING Retaining |
1 | |
| 5 | 8M0063270 |
НАБОР ПРОКЛАДОК SHIM SET |
1 | |
| 6 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Reverse Gear NOT SOLD SEPARATE Reverse Gear |
1 | |
| 7 | 8M0053823 |
УПОРНАЯ ШАЙБА WASHER Thrust, (1.50 ID x 2.046 OD) |
1 | |
| 8 | 8M0051043 |
СТОПОРНОЕ КОЛЬЦО RING Retaining |
1 | |
| 9 | 8M0142835 |
ПОДШИПНИК Конический ролик BEARING Roller Taper (Cup/Cone) |
1 |
