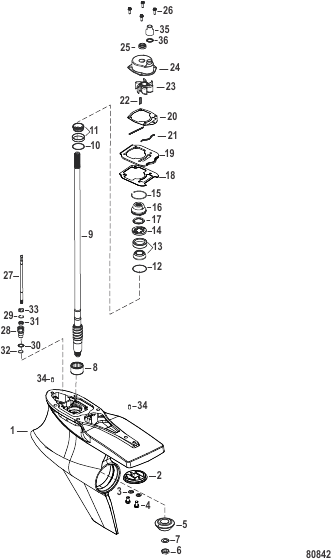

Gear Housing Driveshaft, Sport Master (1.75 Gear Ratio)
Parts (46)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0237830 |
GEAR HOUSING ASSEMBLY Sport Master, Standard Rotation, Short, Camber, 1.75, Silver GEAR HOUSING ASSEMBLY Sport Master, Standard Rotation, Short, Camber, 1.75, Silver |
1 | |
| - | 8M0237831 |
GEAR HOUSING ASSEMBLY Sport Master, Standard Rotation, Short, 1.75, Silver GEAR HOUSING ASSEMBLY Sport Master, Standard Rotation, Short, 1.75, Silver |
1 | |
| - | 8M0237832 |
GEAR HOUSING ASSEMBLY Sport Master, Counter Rotation, Short, 1.75, Silver GEAR HOUSING ASSEMBLY Sport Master, Counter Rotation, Short, 1.75, Silver |
1 | |
| - | 8M0185160 |
IMPELLER REPAIR KIT IMPELLER REPAIR KIT |
1 | |
| - | 8M0166531 |
GEARCASE SEAL KIT GEARCASE SEAL KIT |
1 | |
| - | 8M0078258 |
НАБОР ШЕСТЕРЕН 12/21(1.75:1) GEAR SET 12/21(1.75:1) |
1 | |
| - | 8M0204764 |
CARRIER ASSEMBLY Bearing CARRIER ASSEMBLY Bearing |
1 | |
| - | 8M0146676 |
ПЕРЕДАЧА Задняя GEAR ASSEMBLY Reverse |
1 | |
| - | 8M0240769 |
GEAR SET 1.75, Counter Rotaion GEAR SET 1.75, Counter Rotaion |
1 | |
| 1 | 8M0168313 |
GEAR HOUSING ASSEMBLY Basic Sport Master Camber Skeg Silver GEAR HOUSING ASSEMBLY Basic Sport Master Camber Skeg Silver |
1 | |
| 1 | 8M0168312 |
GEAR HOUSING ASSEMBLY Basic Sport Master Silver GEAR HOUSING ASSEMBLY Basic Sport Master Silver |
1 | |
| 10 | 8M0063268 |
НАБОР ПРОКЛАДОК SHIM SET |
1 | |
| 11 | 8M0146553 |
БЛОК ПОДШИПНИКА Стакан/конус BEARING ASSEMBLY Cup/Cone |
1 | |
| 12 | 8M0063267 |
НАБОР ПРОКЛАДОК SHIM SET |
1 | |
| 13 | 8M0146566 |
БЛОК ПОДШИПНИКА Стакан/конус BEARING ASSEMBLY Cup/Cone |
1 | |
| 14 | 8245191 |
ФИКСАТОР RETAINER |
1 | |
| 15 | 880719 |
КОЛЬЦО Стопор RING Retaining |
1 | |
| 16 | 8M0161436 |
OIL SEAL CARRIER ASSEMBLY OIL SEAL CARRIER ASSEMBLY |
1 | |
| 17 | 8M0142854 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING (2.175 x .103) |
1 | |
| 18 | 8M0146938 |
ПРОКЛАДКА Основание водяного насоса GASKET Water Pump Base |
1 | |
| 19 | 8M0174560 |
COVER Gearcase Housing COVER Gearcase Housing |
1 | |
| 2 | 847635001 |
АНОД ANODE |
1 | |
| 20 | 8M0168838 |
GASKET Faceplate GASKET Faceplate |
1 | |
| 21 | 8M0142659 |
УПЛОТНЕНИЕ SEAL Formed, Actuator |
2 | |
| 22 | 8M0204723 |
KEY KEY |
1 | |
| 23 | 43026Q02 |
КРЫЛЬЧАТКА IMPELLER |
1 | |
| 24 | 817275A10 |
КОМПЛЕКТ КОРПУСА Водяной насос Water Pump Housing HOUSING KIT Water Pump Water Pump Housing |
1 | |
| 25 | 8M0142851 |
КОЛЬЦЕВОЕ УПЛОТНЕНИЕ V-ОБРАЗНОГО СЕЧЕНИЯ Торцевое уплотнение VRING Face Seal |
1 | |
| 26 | 8M0204706 |
SCREW M6 x 20 Hex SCREW M6 x 20 Hex |
4 | |
| 27 | 8M0164968 |
SHIFT SHAFT Long SHIFT SHAFT Long |
1 | |
| 28 | 8M0164967 |
BUSHING Shift Shaft BUSHING Shift Shaft |
1 | |
| 29 | 8M0046563 |
СТОПОРНОЕ КОЛЬЦО RING Retaining |
1 | |
| 3 | 8M0036047 |
ВИНТ (0.375 x 0.62) SCREW (.375 x .62) |
2 | |
| 30 | 8M0142860 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING .706 x .097 |
1 | |
| 31 | 8M0204708 |
SEAL Oil SEAL Oil |
1 | |
| 32 | 8M0142866 |
КОЛЬЦО Стопор RING Retaining |
1 | |
| 33 | 77674 |
ШАЙБА WASHER (.35 x .75 x .12) |
1 | |
| 34 | 8M0084244 |
ШТИФТ Штифт PIN Dowel, .375 x .620 |
2 | |
| 35 | 8M0237821 |
COUPLING Water Pump COUPLING Water Pump |
1 | |
| 36 | 8M0204645 |
O-RING (.796 x .139) O-RING (.796 x .139) |
1 | |
| 4 | 841388 |
ШАЙБА (0.410 x 0.810 x 0.050), нержавеющая сталь WASHER (.410 x .810 x .050) Stainless Steel |
2 | |
| 5 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Pinion NOT SOLD SEPARATE Pinion |
1 | |
| 6 | 8M0239133 |
NUT Hex, .625-18 NUT Hex, .625-18 |
1 | |
| 7 | 8M0062703 |
ШАЙБА WASHER |
1 | |
| 8 | 8M0045676 |
ПОДШИПНИК Ролик BEARING Roller |
1 | |
| 9 | 8M0237836 |
DRIVESHAFT ASSEMBLY Short DRIVESHAFT ASSEMBLY Short |
1 |
