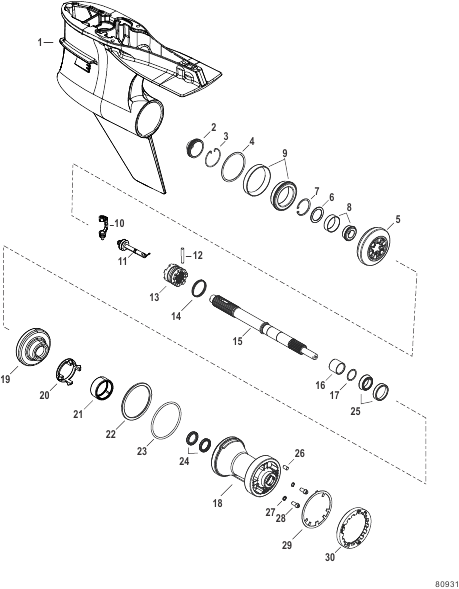

Gear Housing Prop Shaft, Standard Rotation,Torque Master (1.75 Gear Ratio)
Parts (35)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0237829 |
GEAR HOUSING ASSEMBLY Torque Master, Standard Rotation, 1.75, Short, Silver GEAR HOUSING ASSEMBLY Torque Master, Standard Rotation, 1.75, Short, Silver |
1 | |
| - | 8M0142979 |
КОМПЛЕКТ УПЛОТНЕНИЙ SEAL KIT |
1 | |
| - | 8M0146696 |
НАБОР ШЕСТЕРЕН Передняя шестерня 12/21 GEAR SET Forward Pinion 12/21 |
1 | |
| - | 8M0205802 |
REPAIR KIT Water Pump Mercury REPAIR KIT Water Pump Mercury |
1 | |
| - | 8M0205803 |
REPAIR KIT Water Pump QuickSilver REPAIR KIT Water Pump QuickSilver |
1 | |
| 1 | 8M0228039 |
GEAR HOUSING ASSEMBLY Basic, Silver (Torque Master) GEAR HOUSING ASSEMBLY Basic, Silver (Torque Master) |
1 | |
| 10 | 8M0220880 |
CRANK, Shifter 1/4 Pivot Pin CRANK, Shifter 1/4 Pivot Pin |
1 | |
| 11 | 8M0235942 |
SPOOL SPOOL |
1 | |
| 12 | 8M0045493 |
ШТИФТ PIN Cross |
1 | |
| 13 | 8M0142849 |
МУФТА СЦЕПЛЕНИЯ Скользящий CLUTCH Sliding |
1 | |
| 14 | 8M0050575 |
ПРУЖИНА SPRING Cross |
1 | |
| 15 | 8M0142838 |
ВАЛ ГРЕБНОГО ВИНТА PROPELLER SHAFT |
1 | |
| 16 | 8M0064306 |
ПРОСТАВКА SPACER Thrust |
1 | |
| 17 | 8M0076745 |
НАБОР ПРОКЛАДОК SHIM SET |
1 | |
| 18 | 8M0142839 |
СТАКАН ПОДШИПНИКА BEARING CARRIER |
1 | |
| 19 | 8M0142841 |
ПЕРЕДАЧА Задняя GEAR Reverse |
1 | |
| 2 | 8M0157111 |
PLUG Torpedo PLUG Torpedo |
1 | |
| 20 | 8M0142846 |
УПОР ШЕСТЕРНИ RETAINER GEAR |
1 | |
| 21 | 8M0142843 |
ИГОЛЬЧАТЫЙ ПОДШИПНИК BEARING NEEDLE |
1 | |
| 22 | 880699 |
УПОРНОЕ КОЛЬЦО THRUST RING |
1 | |
| 23 | 8M0142840 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (3,85 x 0,210) O-RING (3.85 x 0.210) |
1 | |
| 24 | 8M0204700 |
SEAL Oil SEAL Oil |
2 | |
| 25 | 8M0148319 |
ПОДШИПНИК Стакан/конус BEARING Roller Taper Cup/Cone |
1 | |
| 26 | 8M0109164 |
ШТИФТ PIN 3/8 Dia x .625 LG |
1 | |
| 27 | 8M0204693 |
SEAL Drain Plug SEAL Drain Plug |
2 | |
| 28 | 8M0071653 |
ВИНТ Специальный SCREW Special, .375-16 UNC |
2 | |
| 29 | 8M0142855 |
ЛЕПЕСТКОВАЯ ШАЙБА TAB WASHER |
1 | |
| 3 | 880719 |
КОЛЬЦО Стопор RING Retaining |
1 | |
| 30 | 8M0168577 |
RETAINER Bearing Carrier RETAINER Bearing Carrier |
1 | |
| 4 | 8M0063270 |
НАБОР ПРОКЛАДОК SHIM SET |
1 | |
| 5 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Forward Gear NOT SOLD SEPARATE Forward Gear |
1 | |
| 6 | 8M0053823 |
УПОРНАЯ ШАЙБА WASHER Thrust, (1.50 ID x 2.046 OD) |
1 | |
| 7 | 8M0051043 |
СТОПОРНОЕ КОЛЬЦО RING Retaining |
1 | |
| 8 | 8M0142835 |
ПОДШИПНИК Конический ролик BEARING Roller Taper (Cup/Cone) |
1 | |
| 9 | 8M0142836 |
ПОДШИПНИК Конический ролик BEARING Roller Taper (Cup/Cone) |
1 |
