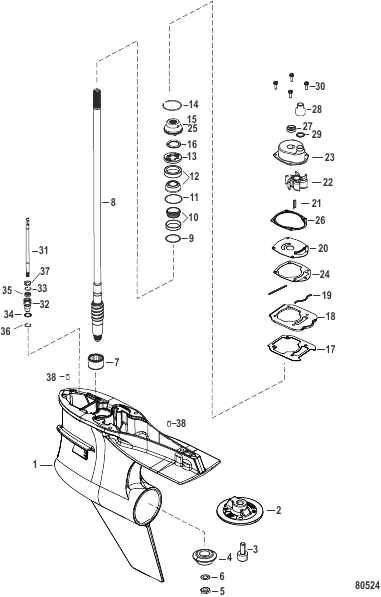

Gear Housing Driveshaft, Torque Master (1.75 Gear Ratio)
Parts (43)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0237829 |
GEAR HOUSING ASSEMBLY Torque Master, Standard Rotation, 1.75, Short, Silver GEAR HOUSING ASSEMBLY Torque Master, Standard Rotation, 1.75, Short, Silver |
1 | |
| - | 8M0142979 |
КОМПЛЕКТ УПЛОТНЕНИЙ SEAL KIT |
1 | |
| - | 8M0146696 |
НАБОР ШЕСТЕРЕН Передняя шестерня 12/21 GEAR SET Forward Pinion 12/21 |
1 | |
| - | 8M0205802 |
REPAIR KIT Water Pump Mercury REPAIR KIT Water Pump Mercury |
1 | |
| - | 8M0205803 |
REPAIR KIT Water Pump QuickSilver REPAIR KIT Water Pump QuickSilver |
1 | |
| 1 | 8M0228039 |
GEAR HOUSING ASSEMBLY Basic, Silver (Torque Master) GEAR HOUSING ASSEMBLY Basic, Silver (Torque Master) |
1 | |
| 10 | 8M0146553 |
БЛОК ПОДШИПНИКА Стакан/конус BEARING ASSEMBLY Cup/Cone |
1 | |
| 11 | 8M0063267 |
НАБОР ПРОКЛАДОК SHIM SET |
1 | |
| 12 | 8M0146566 |
БЛОК ПОДШИПНИКА Стакан/конус BEARING ASSEMBLY Cup/Cone |
1 | |
| 13 | 8245191 |
ФИКСАТОР RETAINER |
1 | |
| 14 | 880719 |
КОЛЬЦО Стопор RING Retaining |
1 | |
| 15 | 8M0046297 |
ОПОРА МАСЛЯНОГО УПЛОТНЕНИЯ В СБОРЕ OIL SEAL CARRIER ASSEMBLY |
1 | |
| 16 | 8M0142854 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING (2.175 x .103) |
1 | |
| 17 | 8M0146938 |
ПРОКЛАДКА Основание водяного насоса GASKET Water Pump Base |
1 | |
| 18 | 8M0174560 |
COVER Gearcase Housing COVER Gearcase Housing |
1 | |
| 19 | 8M0142659 |
УПЛОТНЕНИЕ SEAL Formed, Actuator |
2 | |
| 2 | 8M0142847 |
ПЛАСТИНА Анодный PLATE Anodic |
1 | |
| 20 | 8M0204709 |
FACEPLATE FACEPLATE |
1 | |
| 21 | 8M0204723 |
KEY KEY |
1 | |
| 22 | 43026T2 |
КРЫЛЬЧАТКА IMPELLER |
1 | |
| 23 | 817275A1 |
КОМПЛЕКТ КОРПУСА Водяной насос HOUSING KIT Water Pump |
1 | |
| 24 | 8M0142616 |
ПРОКЛАДКА Торцевая пластина к редуктору GASKET Face Plate to Gearcase |
1 | |
| 25 | 8M0142854 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING (2.175 x .103) |
1 | |
| 26 | 8172771 |
ПРОКЛАДКА GASKET Water Pump, Upper |
1 | |
| 27 | 8M0142851 |
КОЛЬЦЕВОЕ УПЛОТНЕНИЕ V-ОБРАЗНОГО СЕЧЕНИЯ Торцевое уплотнение VRING Face Seal |
1 | |
| 28 | 8M0237821 |
COUPLING Water Pump COUPLING Water Pump |
1 | |
| 29 | 8M0204645 |
O-RING (.796 x .139) O-RING (.796 x .139) |
1 | |
| 3 | 8M0142850 |
ВИНТ (M10 X 25) SCREW (M10 X 25) |
1 | |
| 30 | 8M0204706 |
SCREW M6 x 20 Hex SCREW M6 x 20 Hex |
4 | |
| 31 | 8M0164968 |
SHIFT SHAFT Long SHIFT SHAFT Long |
1 | |
| 32 | 8M0164967 |
BUSHING Shift Shaft BUSHING Shift Shaft |
1 | |
| 33 | 8M0046563 |
СТОПОРНОЕ КОЛЬЦО RING Retaining |
1 | |
| 34 | 8M0142860 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING .706 x .097 |
1 | |
| 35 | 8M0204708 |
SEAL Oil SEAL Oil |
1 | |
| 36 | 8M0142866 |
КОЛЬЦО Стопор RING Retaining |
1 | |
| 37 | 77674 |
ШАЙБА WASHER (.35 x .75 x .12) |
1 | |
| 38 | 8M0084244 |
ШТИФТ Штифт PIN Dowel, .375 x .620 |
2 | |
| 4 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Pinion NOT SOLD SEPARATE Pinion |
1 | |
| 5 | 8M0071654 |
ГАЙКА (0.625-18, ШЕСТИГР.) NUT (.625-18 HX) |
1 | |
| 6 | 92721 |
ШАЙБА WASHER (.965 x .630) |
1 | |
| 7 | 42647A1 |
БЛОК ПОДШИПНИКА Ролик BEARING ASSEMBLY Roller |
1 | |
| 8 | 8M0237837 |
DRIVESHAFT ASSEMBLY Short DRIVESHAFT ASSEMBLY Short |
1 | |
| 9 | 8M0063268 |
НАБОР ПРОКЛАДОК SHIM SET |
1 |
