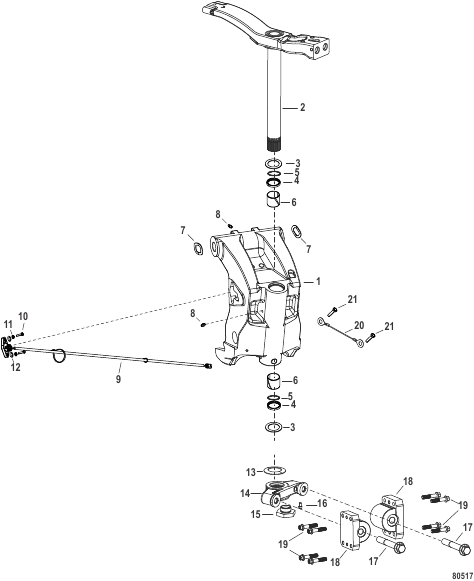

Swivel Bracket and Steering Arm
Parts (21)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0237796 |
SWIVEL BRACKET SWIVEL BRACKET |
1 | |
| 10 | 852368 |
ВИНТ (№10-24 x 0.750) SCREW (#10-24 x .750) |
2 | |
| 11 | 400255 |
СТОПОРНАЯ ШАЙБА (M5) LOCKWASHER (M5) |
2 | |
| 12 | 89302 |
ШАЙБА (0.203 x 0.406 x 0.040) WASHER (.203 x .406 x .040) |
2 | |
| 13 | 8M0237863 |
WASHER Bellville WASHER Bellville |
1 | |
| 14 | 8M0237853 |
YOKE YOKE |
1 | |
| 15 | 8M0237856 |
BOLT Yoke BOLT Yoke |
1 | |
| 16 | 8M0041100 |
ВИНТ (M5 x 10) SCREW (M5 x 10) |
1 | |
| 17 | 8M0230598 |
SCREW (M14 x 2 x 100 HX FLG) SCREW (M14 x 2 x 100 HX FLG) |
2 | |
| 18 | 8M0237862 |
MOUNT Lower MOUNT Lower |
2 | |
| 19 | 8M0084475 |
ВИНТ (M8 x 40) SCREW (M8 x 40) |
8 | |
| 2 | 8M0237851 |
SWIVEL PIN SWIVEL PIN |
1 | |
| 20 | 8M0160545 |
CABLE ASSEMBLY 10 IN Swivel Bracket to Driveshaft Housing CABLE ASSEMBLY 10 IN Swivel Bracket to Driveshaft Housing |
1 | |
| 21 | 8M0103804 |
ВИНТ (M6 x 12 мм), нержавеющая сталь SCREW (M6 x 12 MM) Stainless Steel |
2 | |
| 3 | 847728 |
ПОДШИПНИК BEARING |
2 | |
| 4 | 8M0242099 |
RING Sealing RING Sealing |
2 | |
| 5 | 8M0204681 |
O-RING 1.424 x .103, Special O-RING 1.424 x .103, Special |
2 | |
| 6 | 8M0042131 |
ПОДШИПНИК BEARING |
2 | |
| 7 | 88750 |
ШАЙБА WASHER Wave (1.62 x 1.05) |
2 | |
| 8 | 8M0169589 |
FITTING Grease FITTING Grease |
2 | |
| 9 | 8M0142805 |
ДАТЧИК ПОЛОЖЕНИЯ ПОДЪЕМНИКА TRIM POSITION SENSOR |
1 |
