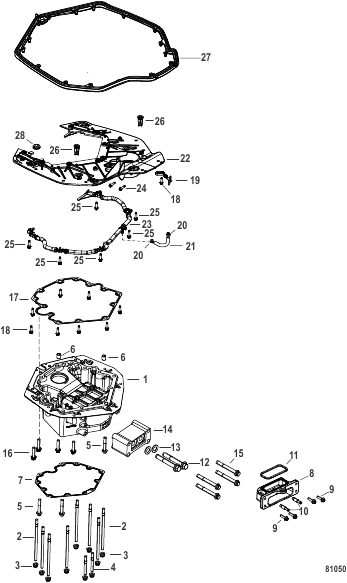

Adapter Plate
Parts (29)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0149551 |
НАБОР ПРОКЛАДОК СИЛОВОЙ ГОЛОВКИ POWERHEAD GASKET SET |
1 | |
| 1 | 8M0149576 |
СОЕДИНИТЕЛЬНАЯ ПЛАСТИНА ADAPTER PLATE |
1 | |
| 10 | 8M0038205 |
ФИТИНГ Прямой FITTING Straight |
2 | |
| 11 | 8M0142745 |
УПЛОТНЕНИЕ Верхний кронштейн крепления SEAL Upper Mount Bracket |
1 | |
| 12 | 8M0179996 |
SCREW (M16) SCREW (M16) |
2 | |
| 13 | 8M0179998 |
WASHER (31.7 mm x 17.38 mm x 1.6 mm) WASHER (31.7 mm x 17.38 mm x 1.6 mm) |
2 | |
| 14 | 8M0237815 |
MOUNT Upper, Solid MOUNT Upper, Solid |
1 | |
| 15 | 8M0149600 |
ВИНТ (M10 x 1,5 x 80) SCREW (M10 x 1.5 x 80) |
4 | |
| 16 | 8M0103823 |
ВИНТ SCREW (M10 x 45 Hex Flange) |
4 | |
| 17 | 8M0205773 |
GASKET Adapter Plate Adapter Plate to Cylinder Block GASKET Adapter Plate Adapter Plate to Cylinder Block |
1 | |
| 18 | 8M0142708 |
ВИНТ (M6) SCREW (M6) |
9 | |
| 19 | 8M0142748 |
ФИТИНГ Tell Tale FITTING Tell Tale |
1 | |
| 2 | 8M0142744 |
ШПИЛЬКА (M10 x 185) STUD (M10 x 185) |
8 | |
| 20 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
2 | |
| 21 | 8M0142618 |
РУКАВ HOSE Mount Cooler Out |
1 | |
| 22 | 8M0232951 |
CHAP PLATE ASSEMBLY CHAP PLATE ASSEMBLY |
1 | |
| 23 | 8M0146171 |
ШЛАНГ В СБОРЕ Распылитель HOSE ASSEMBLY Sprayer |
1 | |
| 24 | 88552535 |
ВИНТ (M6 x 35 мм), нержавеющая сталь SCREW (M6 x 35 MM) Stainless Steel |
2 | |
| 25 | 8M0103805 |
ВИНТ (M6 x 16 ММ), нержавеющая сталь SCREW (M6 x 16mm) Stainless Steel |
5 | |
| 26 | 8M0142710 |
СЛИВ Кожух DRAIN Cowl |
2 | |
| 27 | 8M0142917 |
УПЛОТНЕНИЕ Соединительная пластина SEAL Adapter Plate |
1 | |
| 28 | 8M0058484 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | |
| 3 | 8M0142743 |
ГАЙКА (M10 x 1.5) NUT (M10 x 1.5) |
10 | |
| 4 | 8M0158595 |
STUD (M10) STUD (M10) |
2 | |
| 5 | 8M0069690 |
ВИНТ (M10 x 1.5 x 60) SCREW (M10 X 1.5 X 60) |
3 | |
| 6 | 821327 |
ШТИФТ Штифт PIN Dowel |
2 | |
| 7 | 8M0142275 |
ПРОКЛАДКА Adapter Plate to Driveshaft Housing GASKET Adapter Plate to Driveshaft Housing |
1 | |
| 8 | 8M0239528 |
BRACKET Mount Retainer Steering Arm BRACKET Mount Retainer Steering Arm |
1 | |
| 9 | 8M0231451 |
SCREW M8 x 30 HEX FLG SCREW M8 x 30 HEX FLG |
4 |
