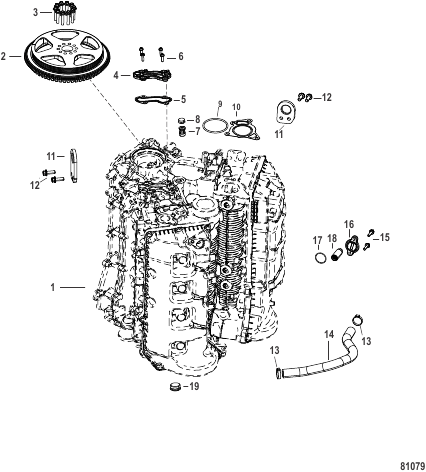

Long Block Assembly Components ROS Models
Parts (20)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0245172 |
LONG BLOCK ASSEMBLY LONG BLOCK ASSEMBLY |
1 | |
| 10 | 8M0142537 |
ПРОКЛАДКА Выхлопной коллектор GASKET Exhaust Manifold |
1 | |
| 11 | 8M0200019 |
LIFTING EYE Starboard LIFTING EYE Starboard |
1 | |
| 11 | 8M0200020 |
LIFTING EYE Port LIFTING EYE Port |
1 | |
| 12 | 8M0200018 |
SCREW M10 x 30 HEX FLG HD SCREW M10 x 30 HEX FLG HD |
4 | |
| 13 | 855228 |
ЗАЖИМ CLAMP |
2 | |
| 14 | 8M0142472 |
РУКАВ Левый борт к сапуну правого борта HOSE Port to Starboard Breather |
1 | |
| 15 | 8M0103807 |
ВИНТ (M6 x 25 мм), нержавеющая сталь SCREW (M6 x 25 mm) Stainless Steel |
2 | |
| 16 | 8M0237592 |
END CAP Cam Tensioner END CAP Cam Tensioner |
1 | |
| 17 | 8M0237361 |
O-RING O-RING |
1 | |
| 18 | 8M0231253 |
TENSIONER ASSEMBLY Timing Chain TENSIONER ASSEMBLY Timing Chain |
1 | |
| 19 | 8M0087454 |
ПРОБКА (30 ММ) PLUG (30 MM) |
1 | |
| 2 | 8M0175394 |
FLYWHEEL FLYWHEEL |
1 | |
| 3 | 8M0142384 |
ВИНТ (M8 x 42) ГОЛОВКА ШЕСТИГР. ФЛАНЦА SCREW (M8 x 42) Hx Flg Head |
10 | |
| 4 | 8M0142349 |
КРЫШКА COVER Cylinder Block |
1 | |
| 5 | 8M0142348 |
ПРОКЛАДКА Крышка GASKET Cover Plate |
1 | |
| 6 | 8M0080651 |
ВИНТ (M6 x 20) SCREW (M6 x 20) |
4 | |
| 7 | 8M0142352 |
ПРОБКА 18 мм PLUG 18 MM |
1 | |
| 8 | 8M0142353 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0,614 x 0,070) O-RING (0.614 x 0.070) |
1 | |
| 9 | 8M0142368 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (230 2,484 x 0,139) O-RING (230 2.484 x .139) |
1 |
