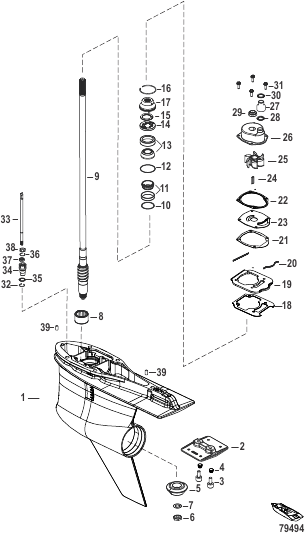

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0142293 |
GEAR HOUSING ASSEMBLY Black (Standard Long) (1.85)
|
1 |
superseded
|
| - |
8M0142295 |
GEAR HOUSING ASSEMBLY Black (Standard X-Long) (1.85)
|
1 |
superseded
|
| - |
8M0228010 |
GEAR HOUSING ASSEMBLY Silver (Standard Long) (1.85)
|
1 |
superseded
|
| - |
8M0228011 |
GEAR HOUSING ASSEMBLY Silver (Standard X-Long) (1.85)
|
1 |
superseded
|
| - |
8M0142297 |
GEAR HOUSING ASSEMBLY Black (Counter Rotation X-Long) (1.85)
|
1 |
superseded
|
| - |
8M0228012 |
GEAR HOUSING ASSEMBLY Silver (Counter Rotation X-Long) (1.85)
|
1 |
superseded
|
| - |
8M0205803 |
REPAIR KIT Water Pump
|
1 |
|
| - |
8M0142979 |
SEAL KIT
|
1 |
|
| - |
8M0146697 |
GEAR SET Forward Pinion 13/24 Standard Rotation
|
1 |
|
| - |
8M0237501 |
GEAR SET Counter Rotation
|
1 |
|
| - |
8M0237498 |
BEARING CARRIER KIT Counter Rotation
|
1 |
|
| 1 |
8M0142886 |
GEAR HOUSING ASSEMBLY Basic, Black (4.8)
|
1 |
|
| 1 |
8M0228041 |
GEAR HOUSING ASSEMBLY Basic, Silver (4.8)
|
1 |
|
| 10 |
8M0063268 |
SHIM SET
|
1 |
|
| 11 |
8M0146553 |
BEARING ASSEMBLY Cup/Cone
|
1 |
|
| 12 |
8M0063267 |
SHIM SET
|
1 |
|
| 13 |
8M0146566 |
BEARING ASSEMBLY Cup/Cone
|
1 |
|
| 14 |
8245191 |
RETAINER
|
1 |
|
| 15 |
8M0142854 |
O-RING (2.175 x .103)
|
1 |
|
| 16 |
880719 |
RING Retaining
|
1 |
|
| 17 |
8M0046297 |
OIL SEAL CARRIER ASSEMBLY
|
1 |
|
| 18 |
8M0146938 |
GASKET Water Pump Base
|
1 |
|
| 19 |
8M0174560 |
COVER Gearcase Housing
|
1 |
|
| 2 |
8M0137814 |
ANODE Antivent Plate (Aluminum)
|
1 |
|
| 2 |
8M0200103 |
ANODE Antivent Plate (Magnesium)
|
AR |
|
| 20 |
8M0142659 |
SEAL Formed, Actuator
|
2 |
|
| 21 |
8M0142616 |
GASKET Face Plate to Gearcase
|
2 |
|
| 22 |
8172771 |
GASKET Water Pump, Upper
|
1 |
|
| 23 |
8M0204709 |
FACEPLATE
|
1 |
|
| 24 |
8M0204723 |
KEY
|
1 |
|
| 25 |
43026T2 |
IMPELLER
|
1 |
|
| 26 |
817275A1 |
HOUSING KIT Water Pump
|
1 |
|
| 27 |
8M0142435 |
COUPLING Water Pump
|
1 |
|
| 28 |
8M0204645 |
O-RING (.796 x .139)
|
1 |
|
| 29 |
8M0142851 |
VRING Face Seal
|
1 |
|
| 3 |
8M0142850 |
SCREW (M10 X 25)
|
2 |
|
| 30 |
8M0142712 |
O-RING (0.796 x 0.139)
|
1 |
|
| 31 |
8M0204706 |
SCREW M6 x 20 Hex
|
4 |
|
| 32 |
8M0164968 |
SHIFT SHAFT Long
|
1 |
|
| 32 |
8M0164969 |
SHIFT SHAFT XLong
|
1 |
|
| 33 |
8M0142866 |
RING Retaining
|
1 |
|
| 34 |
8M0164967 |
BUSHING Shift Shaft
|
1 |
|
| 35 |
8M0142860 |
O-RING .706 x .097
|
1 |
|
| 36 |
8M0046563 |
RING Retaining
|
1 |
|
| 37 |
8M0204708 |
SEAL Oil
|
1 |
|
| 38 |
77674 |
WASHER (.35 x .75 x .12)
|
1 |
|
| 39 |
8M0084244 |
PIN Dowel, .375 x .620
|
2 |
|
| 4 |
8M0142878 |
PLUG Screw
|
2 |
|
| 5 |
NSS |
NOT SOLD SEPARATE Pinion
|
1 |
|
| 6 |
8M0071654 |
NUT (.625-18 HX)
|
1 |
|
| 7 |
92721 |
WASHER (.965 x .630)
|
1 |
|
| 8 |
42647A1 |
BEARING ASSEMBLY Roller
|
1 |
|
| 9 |
8M0168203 |
DRIVESHAFT KIT Long
|
1 |
|
| 9 |
8M0168206 |
DRIVESHAFT KIT X-Long
|
1 |
|
