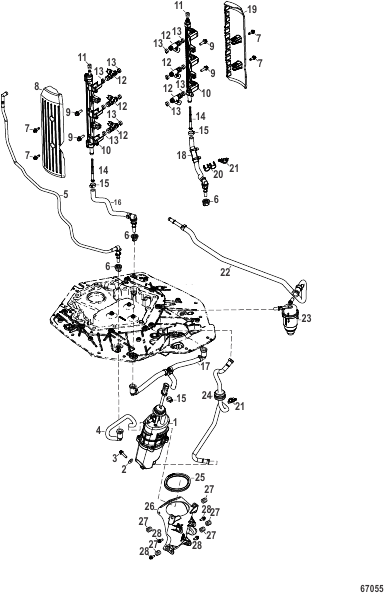

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0161584 |
FUEL SUPPLY MODULE
|
1 |
|
| 10 |
8M0219775 |
FUEL RAIL ASSEMBLY Port
|
1 |
|
| 10 |
8M0219770 |
FUEL RAIL ASSEMBLY Starboard
|
1 |
|
| 11 |
8M0046566 |
CAP Valve
|
2 |
|
| 12 |
8M0142264 |
FUEL INJECTOR
|
6 |
|
| 13 |
8M0221321 |
ORING KIT Contains 6 Upper and Lower Orings
|
1 |
|
| 14 |
8M0090809 |
SCREEN Fuel Rail
|
2 |
|
| 15 |
8M0142585 |
CLAMP (16.2 x 7 x .6 MM)
|
3 |
|
| 16 |
8M0142442 |
HOSE ASSEMBLY FSM To Port Rail
|
1 |
|
| 17 |
8M0142437 |
HOSE ASSEMBLY FSM To Fuel Rail
|
1 |
|
| 18 |
8M0142444 |
HOSE ASSEMBLY FSM To Starboard Rail
|
1 |
|
| 19 |
8M0142605 |
COVER Fuel Rail, Starboard
|
1 |
|
| 2 |
65567 |
WASHER (.265 x .750 x .048) Stainless Steel
|
1 |
|
| 20 |
8M0142445 |
CLIP
|
1 |
|
| 21 |
899145 |
CLIP Tie Strap
|
2 |
|
| 22 |
8M0142446 |
HOSE ASSEMBLY Cowl to FSM
|
1 |
|
| 23 |
8M0106635 |
FUEL FILTER Mercury
|
1 |
|
| 23 |
8M0176313 |
FUEL FILTER Quicksilver
|
1 |
|
| 24 |
8M0203776 |
HOSE Fuel Filter to Fuel Supply Module
|
1 |
|
| 25 |
8M0037209 |
GROMMET FSM Retainer
|
1 |
|
| 26 |
8M0142722 |
BRACKET FSM
|
1 |
|
| 27 |
8M0142724 |
GROMMET
|
5 |
|
| 28 |
8M0103805 |
SCREW (M6 x 16mm) Stainless Steel
|
4 |
|
| 3 |
8M0103807 |
SCREW (M6 x 25 mm) Stainless Steel
|
1 |
|
| 4 |
8M0142432 |
HOSE Intake to FSM
|
1 |
superseded
|
| 5 |
8M0203775 |
HOSE Manifold Reference, Upper
|
1 |
|
| 6 |
884546 |
GROMMET
|
3 |
|
| 7 |
8M0005773 |
SCREW (M6 x 14) Shoulder HEX FLG SS
|
4 |
|
| 8 |
8M0142604 |
COVER Fuel Rail, Port
|
1 |
|
| 9 |
8M0142830 |
SCREW (M6 x 20)
|
4 |
|
