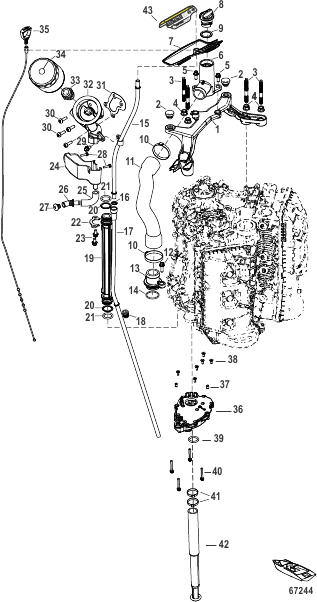

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0142971 |
GASKET SET Powerhead
|
1 |
|
| 1 |
8M0142467 |
BRACKET Oil Fill
|
1 |
|
| 10 |
8M6001459 |
CLAMP (45.5)
|
2 |
|
| 11 |
8M0190557 |
HOSE Oil Fill
|
1 |
|
| 12 |
8M0103806 |
SCREW (M6 x 20 MM) Stainless Steel
|
1 |
|
| 13 |
8M0142468 |
TUBE Oil Fill
|
1 |
|
| 14 |
8M0044601 |
O-RING
|
1 |
|
| 15 |
8M0142480 |
TUBE Dipstick- Upper
|
1 |
|
| 16 |
8M0142481 |
O-RING (0.362 x 0.103)
|
1 |
|
| 17 |
8M0142602 |
TUBE Dipstick
|
1 |
superseded
|
| 18 |
8M0178207 |
GROMMET
|
1 |
|
| 19 |
8M0158594 |
TUBE Oil
|
1 |
|
| 2 |
8M0096302 |
GROMMET
|
2 |
|
| 20 |
8M0142452 |
O-RING (70 Durometer)
|
2 |
|
| 21 |
8M0171370 |
SEAL Oil Tube Square and White
|
2 |
|
| 22 |
8M0142484 |
BRACKET Oil FIlter
|
1 |
|
| 23 |
8M0142485 |
SCREW (M6) HX FLG
|
2 |
|
| 24 |
8M0142454 |
OIL DRIP TRAY
|
1 |
|
| 25 |
8M0142457 |
HOSE Drip tray
|
1 |
|
| 26 |
8M0142456 |
FITTING
|
1 |
|
| 27 |
8M0143229 |
PLUG Drip Tray
|
1 |
|
| 28 |
895054 |
SCREW (M4 x 16 MM)
|
2 |
|
| 29 |
8M0103804 |
SCREW (M6 x 12 MM) Stainless Steel
|
1 |
|
| 3 |
8M0022161 |
STUD (M8 x 71.5)
|
4 |
|
| 30 |
8M0080651 |
SCREW (M6 x 20)
|
4 |
|
| 31 |
8M0142482 |
GASKET Adapter
|
1 |
|
| 32 |
8M0156635 |
ADAPTER Oil Filter
|
1 |
|
| 33 |
8M0142453 |
FITTING Oil FIlter
|
1 |
|
| 34 |
8M0123025 |
OIL FILTER Mercury
|
1 |
|
| 34 |
8M0176312 |
OIL FILTER QuickSilver
|
1 |
|
| 35 |
8M0142601 |
DIPSTICK
|
1 |
|
| 36 |
8M0142403 |
OIL PUMP ASSEMBLY
|
1 |
|
| 37 |
8M0142408 |
DOWEL Pin
|
2 |
|
| 38 |
8M0142407 |
SCREW (M6) HEX SOCKET FLAT X 16 LG
|
6 |
|
| 39 |
8M6001577 |
O-RING M6 X 46
|
1 |
|
| 4 |
826365 |
NUT (M8)
|
4 |
|
| 40 |
8M0142401 |
SCREW (M6) HX FL REDUCED HEAD
|
4 |
|
| 41 |
8M0187146 |
CLAMP
|
2 |
|
| 42 |
8M0142402 |
OIL PICK UP ASSEMBLY
|
1 |
|
| 43 |
8M0142570 |
DECAL Check Engine Oil
|
1 |
|
| 5 |
8M0103805 |
SCREW (M6 x 16mm) Stainless Steel
|
2 |
|
| 6 |
8M0142478 |
NECK Oil Fill
|
1 |
|
| 7 |
8M0142470 |
GROMMET
|
1 |
|
| 8 |
8M0142290 |
CAP Oil
|
1 |
|
| 9 |
8M0204673 |
O-Ring .921 x .139
|
1 |
|
