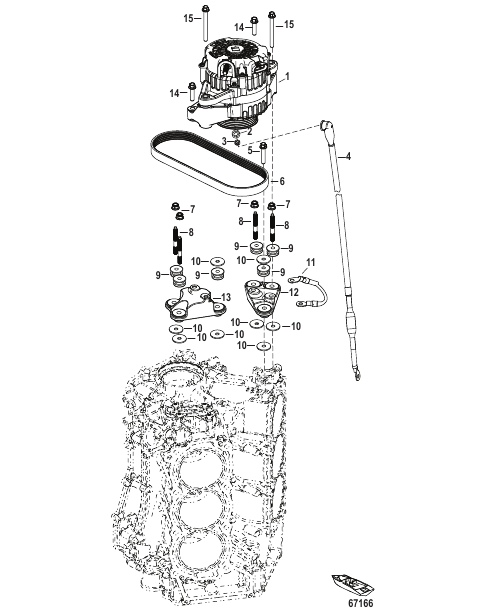

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0205479 |
ALTERNATOR 85 AMP
|
1 |
|
| 1 |
8M0176702 |
UPGRADE KIT Alternator 115 AMP
|
1 |
|
| 10 |
8M0142674 |
WASHER Plain
|
8 |
|
| 11 |
8M0142678 |
CABLE ASSEMBLY Ground
|
1 |
|
| 12 |
8M0142673 |
BRACKET Alternator Starboard
|
1 |
|
| 13 |
8M0142672 |
BRACKET Alternator Port
|
1 |
|
| 14 |
8M0142460 |
SCREW (M8 x 45) Hex Flg
|
2 |
|
| 15 |
8M0142677 |
SCREW (M8 x 85)
|
2 |
|
| 2 |
8M0151156 |
SPACER
|
1 |
|
| 3 |
401388 |
NUT (M8) Stainless Steel
|
1 |
|
| 4 |
8M0142675 |
CABLE ASSEMBLY Fusable Link
|
1 |
superseded
|
| 5 |
8M0142460 |
SCREW (M8 x 45) Hex Flg
|
2 |
|
| 6 |
8M0142251 |
BELT
|
1 |
superseded
|
| 7 |
826365 |
NUT (M8)
|
4 |
|
| 8 |
8M0022161 |
STUD (M8 x 71.5)
|
4 |
|
| 9 |
8M0142676 |
MOUNT
|
6 |
superseded
|
