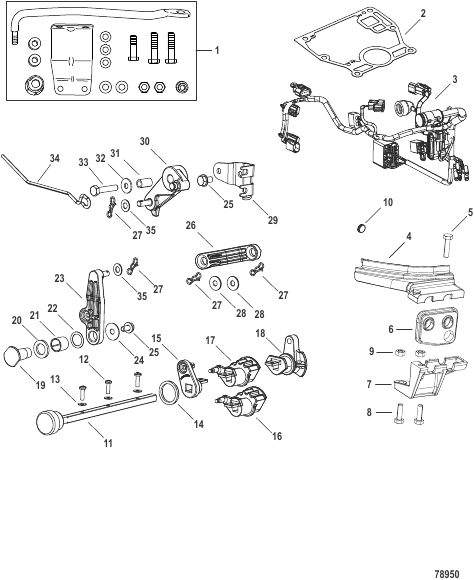

Conversion Kit Tiller Handle Models to Remote Control Models 8M0227954
Parts (36)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0227954 |
CONVERSION KIT Tiller Handle Models to Remote Control Models CONVERSION KIT Tiller Handle Models to Remote Control Models |
1 | |
| 1 | 17024A03 |
КОМПЛЕКТ КРЕПЕЖА Стержень тяги рулевого механизма STEER LINK ROD ATTACHING KIT |
1 | |
| 10 | 16226 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | |
| 11 | 8M0223419 |
SHIFT LEVER SHAFT SHIFT LEVER SHAFT |
1 | |
| 12 | 855544014 |
ВИНТ SCREW |
3 | |
| 13 | 16335 |
ШАЙБА WASHER |
3 | |
| 14 | 16219003 |
УПЛОТНЕНИЕ SEAL |
1 | |
| 15 | 8M0223421 |
SHIFT ARM SHIFT ARM |
1 | |
| 16 | 802971002 |
ФИКСАТОР ПЕРЕДАЧИ Command Thrust SHIFT DETENT Command Thrust |
1 | |
| 17 | 803768003 |
ФИКСАТОР ПЕРЕДАЧИ Standard SHIFT DETENT Standard |
1 | |
| 18 | 8M0223420 |
LEVER LEVER |
1 | |
| 19 | 17640001 |
ВИНТ С БУРТИКОМ SHOULDER SCREW |
1 | |
| 2 | 8M0223377 |
GASKET Engine Base GASKET Engine Base |
1 | |
| 20 | 16219 |
УПЛОТНЕНИЕ SEAL |
1 | |
| 21 | 16220 |
ВТУЛКА BUSHING |
1 | |
| 22 | 16221 |
ВОЛНИСТАЯ ШАЙБА WAVE WASHER |
1 | |
| 23 | 8M0223422 |
SHIFT LEVER SHIFT LEVER |
1 | |
| 24 | 161404 |
ШАЙБА WASHER |
1 | |
| 25 | 8M0155474 |
ВИНТ SCREW |
2 | |
| 26 | 8M0223423 |
SHIFT LEVER ROD SHIFT LEVER ROD |
1 | |
| 27 | 8M0021224 |
ЗАЖИМ Нос – тяга CLIP Bow-Tie |
4 | |
| 28 | 898101218 |
ШАЙБА Пластик WASHER Plastic |
2 | |
| 29 | 8M0223418 |
BRACKET Throttle Wire BRACKET Throttle Wire |
1 | |
| 3 | 8M0223438 |
HARNESS Engine HARNESS Engine |
1 | superseded |
| 30 | 8M0223414 |
THROTTLE LEVER THROTTLE LEVER |
1 | |
| 31 | 8M0223415 |
COLLAR COLLAR |
1 | |
| 32 | 953921 |
ШАЙБА Нержавеющая сталь WASHER Stainless Steel |
1 | |
| 33 | 8M0174563 |
SHOULDER BOLT SHOULDER BOLT |
1 | |
| 34 | 8M0223416 |
THROTTLE ROD Remote Control THROTTLE ROD Remote Control |
1 | |
| 35 | 8M0186817 |
WASHER WASHER |
2 | |
| 4 | 8M0223496 |
COVER Cable Stay COVER Cable Stay |
1 | |
| 5 | 823042 |
БОЛТ BOLT |
1 | |
| 6 | 8M0223485 |
GROMMET GROMMET |
1 | |
| 7 | 8M0223494 |
CABLE STAY CABLE STAY |
1 | |
| 8 | 167051 |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
2 | |
| 9 | 400212 |
ГАЙКА (M6), нержавеющая сталь NUT (M6) Stainless Steel |
2 |
