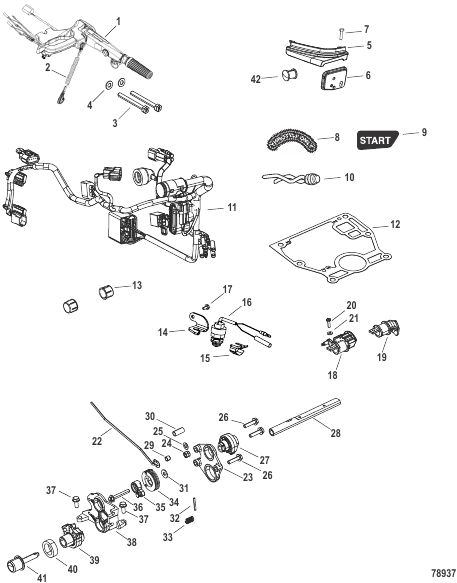

Conversion Kit Remote Control Models to Tiller Handle Models 8M0226901
Parts (46)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0226901 |
CONVERSION KIT Remote Control Models to Tiller Models PT Switch included CONVERSION KIT Remote Control Models to Tiller Models PT Switch included |
1 | |
| - | 8M0227805 |
ELECTRIC START KIT ELECTRIC START KIT |
1 | |
| - | 8M0227810 |
POWERHEAD GASKET SET POWERHEAD GASKET SET |
1 | |
| 1 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Tiller Handle Assembly NOT SOLD SEPARATE Tiller Handle Assembly |
1 | |
| 10 | 853820A02 |
ПЕРЕКЛЮЧАТЕЛЬ В СБОРЕ Пуск SWITCH ASSEMBLY Start |
1 | |
| 11 | 8M0223437 |
HARNESS Engine HARNESS Engine |
1 | superseded |
| 12 | 8M0223377 |
GASKET Engine Base GASKET Engine Base |
1 | |
| 13 | 85372214 |
НАКИДНАЯ ГАЙКА CAP NUT |
2 | |
| 14 | 8M0223483 |
BRACKET Neutral Switch BRACKET Neutral Switch |
1 | |
| 15 | 8M0223484 |
ACTUATOR Neutral Switch ACTUATOR Neutral Switch |
1 | |
| 16 | 8M0226903 |
SWITCH Neutral SWITCH Neutral |
1 | |
| 17 | 8M0155474 |
ВИНТ SCREW |
2 | |
| 18 | 803768002 |
ФИКСАТОР ПЕРЕДАЧИ Standard SHIFT DETENT Standard |
1 | |
| 18 | 802971001 |
ФИКСАТОР ПЕРЕДАЧИ Command Thrust SHIFT DETENT Command Thrust |
1 | |
| 19 | 8M0223426 |
LEVER LEVER |
1 | |
| 2 | 8M0164892 |
LANYARD ASSEMBLY 54 Inches LANYARD ASSEMBLY 54 Inches |
1 | discontinued |
| 20 | 855544014 |
ВИНТ SCREW |
1 | |
| 21 | 16335 |
ШАЙБА WASHER |
1 | |
| 22 | 8M0223417 |
THROTTLE ROD Tiller THROTTLE ROD Tiller |
1 | |
| 23 | 895159 |
ПЛАСТИНА ШЕСТЕРНИ GEAR PLATE |
1 | |
| 24 | 8537227 |
ГАЙКА Нейлон NUT Nylon |
1 | |
| 25 | 16826 |
ШАЙБА Нержавеющая сталь WASHER Stainless Steel |
1 | |
| 26 | 823042 |
БОЛТ BOLT |
3 | |
| 27 | 895101400 |
GEAR Drive GEAR Drive |
1 | |
| 28 | 8M0223425 |
SHAFT SHAFT |
1 | |
| 29 | 895126 |
ВТУЛКА (6 мм) COLLAR (6 mm) |
1 | |
| 3 | 8M0226905 |
BOLT BOLT |
2 | |
| 30 | 895162001 |
COLLAR Steel COLLAR Steel |
1 | |
| 31 | 953921 |
ШАЙБА Нержавеющая сталь WASHER Stainless Steel |
1 | |
| 32 | 16085003 |
ШТИФТ PIN |
1 | |
| 33 | 813028003 |
ПРУЖИНА SPRING |
1 | |
| 34 | 895101401 |
БАК Дроссельная заслонка DRUM Throttle |
1 | |
| 35 | 8M0223424 |
THROTTLE OPENER THROTTLE OPENER |
1 | |
| 36 | 8M0102279 |
БОЛТ BOLT |
1 | |
| 37 | 8248324 |
ВИНТ (M6 x 16) SCREW (M6 x 16) |
2 | |
| 38 | 895158 |
ПЛАСТИНА ШЕСТЕРНИ GEAR PLATE |
1 | |
| 39 | 895161 |
ПЕРЕДАЧА Ведомый GEAR Driven |
1 | |
| 4 | 879194340 |
ШАЙБА WASHER |
2 | |
| 40 | 8M0223427 |
SEAL RING SEAL RING |
1 | |
| 41 | 892772 |
РУЧКА KNOB |
1 | |
| 42 | 162284 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | |
| 5 | 8M0223495 |
COVER Shift Lever Bracket COVER Shift Lever Bracket |
1 | |
| 6 | 8M0223486 |
GROMMET GROMMET |
1 | |
| 7 | 823042 |
БОЛТ BOLT |
1 | |
| 8 | 859278003 |
НАКЛЕЙКА Только дроссельная заслонка DECAL Throttle Only |
1 | |
| 9 | 8M0225039 |
DECAL Start DECAL Start |
1 |
