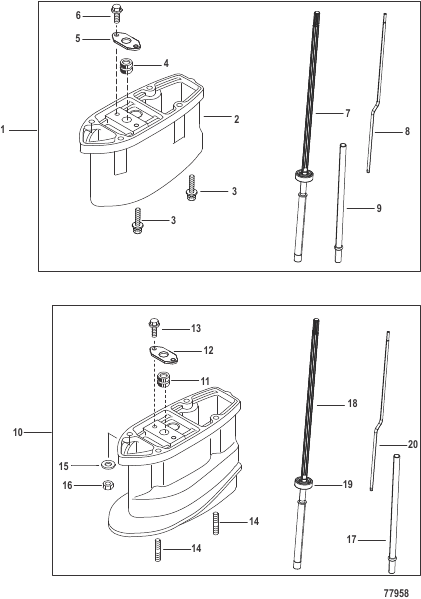

Driveshaft Housing Extension Kit Standard and Command Thrust
Parts (20)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0229983 |
DRIVESHAFT HOUSING KIT XLong Extension Standard DRIVESHAFT HOUSING KIT XLong Extension Standard |
1 | |
| 10 | 853783A05 |
КОМПЛЕКТ КОРПУСА Сверхдлинный удлинитель Command Thrust DRIVESHAFT HOUSING KIT X-Long Extension Command Thrust |
1 | |
| 11 | 811214001 |
ВТУЛКА BUSHING |
1 | |
| 12 | 16121001 |
СТОПОР STOPPER |
1 | |
| 13 | 8M0155474 |
ВИНТ SCREW |
2 | |
| 14 | 879194301 |
БОЛТ И ШПИЛЬКА STUD BOLT |
4 | |
| 15 | 8M0135942 |
Шайба WASHER |
4 | |
| 16 | 400213 |
ГАЙКА (M8), нержавеющая сталь NUT (M8) Stainless Steel |
4 | |
| 17 | 803755T11 |
ТРУБА Вода TUBE Water |
1 | |
| 18 | 803738T10 |
ВЕДУЩИЙ ВАЛ DRIVESHAFT |
1 | |
| 19 | 16132T05 |
ПОДШИПНИК Шарик BEARING Ball |
1 | |
| 2 | 853783T |
КОРПУС Сверхдлинный удлинитель HOUSING X-Long Extension |
1 | |
| 20 | 803760011 |
ШТОК Кулачок ROD Cam |
1 | |
| 3 | 8M0186820 |
BOLT BOLT |
4 | |
| 4 | 811214001 |
ВТУЛКА BUSHING |
1 | |
| 5 | 16121001 |
СТОПОР STOPPER |
1 | |
| 6 | 8M0155474 |
ВИНТ SCREW |
2 | |
| 7 | 8M0158629 |
Driveshaft XLong Driveshaft XLong |
1 | |
| 8 | 16186008 |
ШТОК Эксцентрик – XL ROD Cam - X-Long |
1 | |
| 9 | 16170008 |
ТРУБА Вода TUBE Water |
1 |
