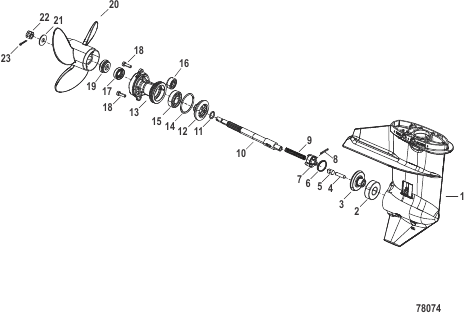

Gear Housing Propeller Shaft Command Thrust
Parts (34)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0082884 |
GASKET SET GASKET SET |
1 | |
| - | 8M0082880 |
КОМПЛЕКТ УПЛОТНЕНИЙ Сливная пробка SEAL KIT Drain Plug |
3 | |
| 1 | 8M0070884 |
GEAR HOUSING ASSEMBLY Complete, Long GEAR HOUSING ASSEMBLY Complete, Long |
1 | |
| 1 | 8M0070895 |
GEAR HOUSING ASSEMBLY Complete, X-Long GEAR HOUSING ASSEMBLY Complete, X-Long |
1 | |
| 1 | 8M0070873 |
GEAR HOUSING ASSEMBLY Basic GEAR HOUSING ASSEMBLY Basic |
1 | |
| 10 | 8M0223455 |
PROPELLER SHAFT PROPELLER SHAFT |
1 | |
| 11 | 803742 |
ШАЙБА WASHER |
1 | |
| 12 | 803741T03 |
GEAR Reverse GEAR Reverse |
1 | |
| 13 | 8M0070877 |
CARRIER-BEARING CARRIER-BEARING |
1 | |
| 14 | 8M0087846 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 15 | 16132T01 |
ПОДШИПНИК Шарик BEARING Ball |
1 | |
| 16 | 803734 |
ПОДШИПНИК Игла BEARING Needle |
1 | |
| 17 | 161622 |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | |
| 18 | 167051 |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
2 | |
| 19 | 8M0143215 |
THRUST HOLDER THRUST HOLDER |
1 | |
| 2 | 16132T01 |
ПОДШИПНИК Шарик BEARING Ball |
1 | |
| 20 | 8M0228896 |
PROPELLER ASSEMBLY 8.7 x 5 5 Pitch 4 Blade, 9.9 ProKicker Silver PROPELLER ASSEMBLY 8.7 x 5 5 Pitch 4 Blade, 9.9 ProKicker Silver |
1 | |
| 20 | 812954A10 |
BLACK MAX PROPELLER 8.7 x 5 5 Pitch, 4 Blade, 9.9 HP ProKicker Black BLACK MAX PROPELLER 8.7 x 5 5 Pitch, 4 Blade, 9.9 HP ProKicker Black |
OPT | |
| 20 | 812950A10 |
ГРЕБНОЙ ВИНТ BLACK MAX 7 Pitch, 4 Blade, 9.9 HP Black BLACK MAX PROPELLER 10 x 7 7 Pitch, 4 Blade, 9.9 HP Black |
1 | |
| 20 | 812948A10 |
ГРЕБНОЙ ВИНТ BLACK MAX 7 Pitch, 4 Blade, 9.9 HP Silver BLACK MAX PROPELLER 10 x 7 7 Pitch, 4 Blade, 9.9 HP Silver |
1 | |
| 20 | 897748A11 |
BLACK MAX PROPELLER 9.5 x 8 8 Pitch, 3 Blade, 9.9 HP Black BLACK MAX PROPELLER 9.5 x 8 8 Pitch, 3 Blade, 9.9 HP Black |
OPT | |
| 20 | 897750A11 |
ГРЕБНОЙ ВИНТ BLACK MAX 9 Pitch, 3 Blade, 9.9 HP Black BLACK MAX PROPELLER 9.25 x 9 9 Pitch, 3 Blade, 9.9 HP Black |
OPT | |
| 20 | 897752A11 |
ГРЕБНОЙ ВИНТ BLACK MAX 10 Pitch, 3 Blade, 9.9 HP Black BLACK MAX PROPELLER 9.25 x 10 10 Pitch, 3 Blade, 9.9 HP Black |
OPT | |
| 20 | 897754A11 |
BLACK MAX PROPELLER 9.25 x 11.5 11.5 Pitch, 3 Blade, 9.9 HP Black BLACK MAX PROPELLER 9.25 x 11.5 11.5 Pitch, 3 Blade, 9.9 HP Black |
OPT | |
| 21 | 161402 |
ШАЙБА WASHER |
1 | |
| 22 | 161471 |
ГАЙКА ГРЕБНОГО ВИНТА PROP NUT |
1 | |
| 23 | 8150264 |
ШПЛИНТ COTTER PIN |
1 | |
| 3 | 8M0183177 |
FORWARD GEAR FORWARD GEAR |
1 | |
| 4 | 803747 |
ШТОК ТОЛКАТЕЛЯ PUSH ROD |
1 | |
| 5 | 853764003 |
ФИКСАТОР RETAINER |
1 | |
| 6 | 803746 |
ПРУЖИНА SPRING |
1 | |
| 7 | 803745 |
МУФТА СЦЕПЛЕНИЯ CLUTCH |
1 | |
| 8 | 160851 |
ШТИФТ Clutch PIN Clutch |
1 | |
| 9 | 176672 |
ПРУЖИНА SPRING |
1 |
