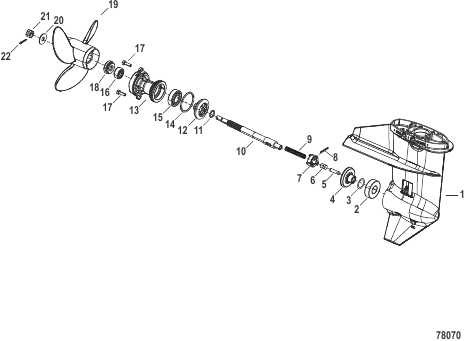

Gear Housing Propeller Shaft, Standard
Parts (28)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 803743Q02 |
PROP HARDWARE KIT PROP HARDWARE KIT |
1 | |
| - | 8M0130156 |
КОМПЛЕКТ ПРОКЛАДОК Lower Unit GASKET SET Lower Unit |
1 | |
| 1 | 8M0229974 |
GEAR HOUSING ASSEMBLY Complete, Short GEAR HOUSING ASSEMBLY Complete, Short |
1 | |
| 1 | 8M0229976 |
GEAR HOUSING ASSEMBLY Complete, Long GEAR HOUSING ASSEMBLY Complete, Long |
1 | |
| 1 | 8M0158623 |
GEAR HOUSING ASSEMBLY Complete, Basic GEAR HOUSING ASSEMBLY Complete, Basic |
1 | |
| 10 | 8M0070782 |
PROPELLER SHAFT PROPELLER SHAFT |
1 | |
| 11 | 16140 |
ШАЙБА WASHER |
1 | |
| 12 | 8M0156178 |
BEVEL GEAR C BEVEL GEAR C |
1 | |
| 13 | 8M0070876 |
CARRIER-BEARING CARRIER-BEARING |
1 | |
| 14 | 16131 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 15 | 16128 |
ПОДШИПНИК Шарик BEARING Ball |
1 | |
| 16 | 16130 |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | |
| 17 | 167051 |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
2 | |
| 18 | 8M0131240 |
THRUST HOLDER THRUST HOLDER |
1 | |
| 19 | 897614A10 |
ГРЕБНОЙ ВИНТ BLACK MAX (7.5) 7.5 Pitch, 3 Blade, 8 HP BLACK MAX PROPELLER 7.5 Pitch, 3 Blade, 8 HP |
1 | |
| 19 | 897618A10 |
BLACK MAX PROPELLER 8.5 Pitch, 3 Blade, 8/9.9 HP BLACK MAX PROPELLER 8.5 Pitch, 3 Blade, 8/9.9 HP |
1 | |
| 2 | 8037331 |
ПОДШИПНИК Шарик BEARING Ball |
1 | |
| 20 | 16146 |
ШАЙБА WASHER |
1 | |
| 21 | 16147 |
ГАЙКА ГРЕБНОГО ВИНТА PROP NUT |
1 | |
| 22 | 815026 |
ШПЛИНТ COTTER PIN |
1 | |
| 3 | 16141 |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА (0.1) SHIM (0.1) |
AR | |
| 3 | 813277 |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА (0.15) SHIM (0.15) |
AR | |
| 4 | 8M0156174 |
BEVEL GEAR ASSEMBLY BEVEL GEAR ASSEMBLY |
1 | |
| 5 | 16152 |
ТОЛКАТЕЛЬ Кулачок FOLLOWER Cam |
1 | |
| 6 | 8537642 |
ФИКСАТОР RETAINER |
1 | |
| 7 | 8037451 |
МУФТА СЦЕПЛЕНИЯ CLUTCH |
1 | |
| 8 | 16150 |
ШТИФТ Муфта сцепления PIN Clutch |
1 | |
| 9 | 892777002 |
ПРУЖИНА (58 мм) SPRING (58 mm) |
1 |
