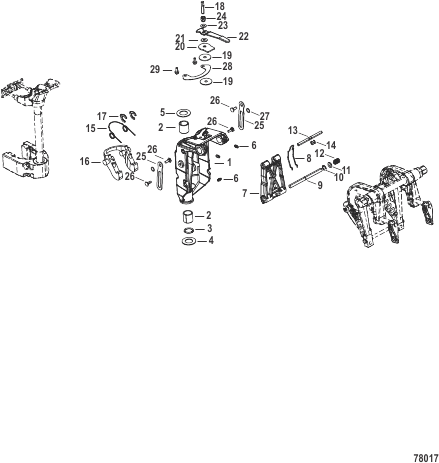

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0228441 | CO PILOT KIT | 1 | |
| 1 | 813029T20 | SWIVEL BRACKET Standard | 1 | |
| 1 | 813029T21 | SWIVEL BRACKET Command Thrust | 1 | |
| 10 | 16057005 | E RING | 1 | |
| 11 | 895168 | WASHER | 1 | |
| 12 | 892777005 | SPRING | 1 | |
| 13 | 815094002 | SHAFT | 1 | |
| 14 | 160572 | E RING | 2 | |
| 15 | 804905001 | SPRING | 1 | |
| 16 | 8M0075731 | HOOK Reverse | 1 | |
| 17 | 8M0075116 | CLIP Reverse Lock Hook | 2 | |
| 18 | 895140002 | BOLT | 1 | |
| 19 | 8M0145395 | DISC | 2 | |
| 2 | 163363 | BUSHING | 2 | |
| 20 | 895146002 | WASHER | 1 | |
| 21 | 895146001 | WASHER | 1 | |
| 22 | 895171 | HANDLE | 1 | |
| 23 | 16192 | WASHER | 1 | |
| 24 | 95374 | NUT Nylon | 1 | |
| 25 | 895169 | TILT STRAP | 2 | |
| 26 | 895170 | BOLT | 4 | |
| 27 | 8537232 | WAVE WASHER | 2 | |
| 28 | 895172 | PLATE | 1 | |
| 29 | 8248324 | SCREW (M6 x 16) | 2 | |
| 3 | 161091 | O-RING | 1 | |
| 4 | 803774 | THRUST PLATE | 1 | |
| 5 | 8M0223476 | THRUST PLATE | 1 | |
| 6 | 824969 | FITTING Grease | 3 | |
| 7 | 803780001 | CARRIER Trim Pin | 1 | |
| 8 | 892777003 | SPRING | 1 | |
| 9 | 815094A03 | STOPPER KIT Tilt | 1 |
