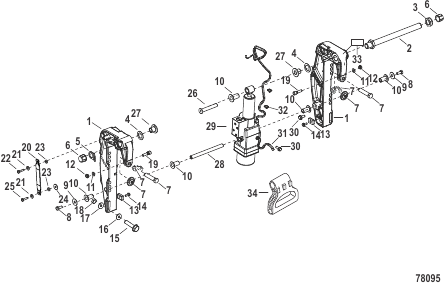

| # | Part Number | Description | Qty | Status |
|---|
| - |
896297A01 |
KICKER STRAP KIT ProKicker Models Only
|
1 |
|
| - |
8M0226901 |
CONVERSION KIT Remote Control Models to Tiller Models
|
1 |
|
| - |
8M0228441 |
CO PILOT KIT
|
1 |
|
| - |
8M0227353 |
SERVICE KIT 8 - 9.9 EFI (300 Hour)
|
1 |
|
| - |
8M0227355 |
SERVICE KIT 8 - 9.9 EFI Command Thrust (300 Hour)
|
1 |
|
| - |
92729A49 |
HARDWARE KIT Transom Mounting
|
1 |
|
| 1 |
815030T05 |
CLAMP BRACKET Starboard
|
1 |
|
| 1 |
815031T03 |
CLAMP BRACKET Port
|
1 |
|
| 10 |
16176008 |
BUSHING
|
5 |
|
| 11 |
8M0135942 |
WASHER
|
2 |
|
| 12 |
95374001 |
NUT Nylon
|
2 |
|
| 13 |
875208 |
ANODE
|
2 |
|
| 14 |
8248324 |
SCREW (M6 x 16)
|
2 |
|
| 15 |
8M0094877 |
SCREW (8 x 85mm
|
2 |
|
| 16 |
16192 |
WASHER
|
2 |
|
| 17 |
16140012 |
WASHER
|
2 |
|
| 18 |
879194337 |
NUT
|
2 |
|
| 19 |
815051001 |
PIN Trim Lock
|
2 |
|
| 2 |
898101191 |
TILT TUBE ASSEMBLY
|
1 |
|
| 20 |
896297001 |
STRAP ASSEMBLY
|
2 |
|
| 21 |
953921 |
WASHER Stainless Steel
|
6 |
|
| 22 |
8M0204707 |
SCREW M6 x 25 HX HD CAP SS
|
2 |
|
| 23 |
855545003 |
COLLAR
|
4 |
|
| 24 |
898101937 |
WASHER
|
2 |
|
| 25 |
898103117 |
BOLT
|
2 |
|
| 26 |
8M0091498 |
PIN Cylinder
|
1 |
|
| 27 |
16176009 |
BUSHING
|
2 |
|
| 28 |
851874005 |
PIN
|
1 |
|
| 29 |
8M0223477 |
POWER TRIM ASSEMBLY
|
1 |
|
| 3 |
853722029 |
NUT Nylon
|
1 |
|
| 30 |
8M0155474 |
SCREW
|
2 |
|
| 31 |
898101089 |
WIRE Ground
|
1 |
|
| 32 |
69356 |
TIE STRAP (8.18 Inches)
|
2 |
|
| 33 |
823701004 |
DECAL Co-Pilot
|
1 |
|
| 34 |
815082002 |
HANDLE Carrying
|
1 |
|
| 4 |
95375001 |
WASHER
|
2 |
|
| 5 |
895163002 |
PLATE
|
1 |
|
| 6 |
85372214 |
CAP NUT
|
2 |
|
| 7 |
8M0176080 |
CLAMP SCREW KIT
|
2 |
|
| 8 |
8M0223480 |
BOLT
|
2 |
|
| 9 |
95375 |
WASHER
|
2 |
|
