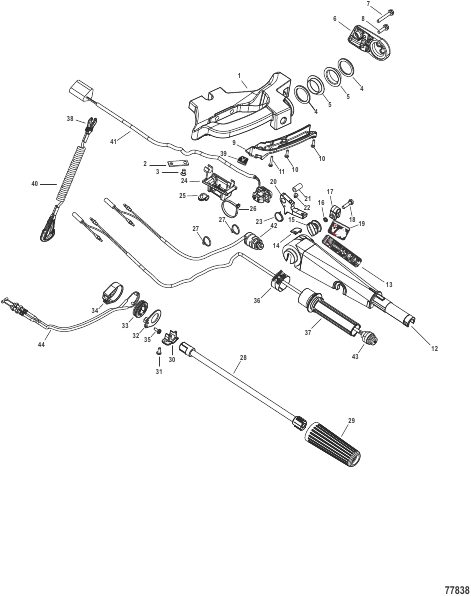

Tiller Handle
Parts (45)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0226901 |
CONVERSION KIT Remote Control Models to Tiller Models CONVERSION KIT Remote Control Models to Tiller Models |
1 | |
| 1 | 8M0228419 |
BRACKET Steering BRACKET Steering |
1 | |
| 10 | 4001987 |
ВИНТ (M4 x 16) SCREW (M4 x 16) |
2 | |
| 11 | 8M0051395 |
SCREW SCREW |
1 | |
| 12 | 8M0051374 |
РУМПЕЛЬНАЯ РУКОЯТКА Bare TILLER HANDLE Bare |
1 | |
| 13 | 8M0228423 |
DECAL Start Procedure DECAL Start Procedure |
1 | |
| 14 | 8M0051375 |
ПРОБКА Колпачок PLUG Cap |
1 | |
| 15 | 8M0051383 |
ГАЙКА NUT |
1 | |
| 16 | 8M0051384 |
ПРУЖИНА Нержавеющая сталь SPRING Stainless Steel |
1 | |
| 17 | 8M0051382 |
ЗАЖИМ Трение – газ CLAMP Friction - Throttle |
1 | |
| 18 | 8M0204707 |
SCREW M6 x 25 HX HD CAP SS SCREW M6 x 25 HX HD CAP SS |
1 | |
| 19 | 8M0228424 |
DECAL Attach Lanyard DECAL Attach Lanyard |
1 | |
| 2 | 8M0151054 |
HOLDER / PLATE Power Tilt Models Only HOLDER / PLATE Power Tilt Models Only |
1 | |
| 20 | 8M0051396 |
РЫЧАГ Фиксатор положения румпеля – из нержавеющей стали LEVER Tiller Lock - Stainless Steel |
1 | |
| 21 | 8M0051397 |
ВТУЛКА Нержавеющая сталь COLLAR Stainless Steel |
1 | |
| 22 | 8M0051399 |
СТОПОР STOPPER |
1 | |
| 23 | 8M0051398 |
ПРУЖИНА Нержавеющая сталь SPRING Stainless Steel |
1 | |
| 24 | 8M0151038 |
HOUSING-SWITCH Power Tilt Models Only HOUSING-SWITCH Power Tilt Models Only |
1 | |
| 25 | 22740 |
ЗАЖИМ Power Tilt Models Only CLIP Power Tilt Models Only |
1 | |
| 26 | 850181 |
ЛЕНТОЧНЫЙ ХОМУТ (11.750") Power Tilt Models Only TIE STRAP (11.750 Inches) Power Tilt Models Only |
1 | |
| 27 | 56762 |
ЛЕНТОЧНЫЙ ХОМУТ (4.00") TIE STRAP (4.00 Inches) |
2 | |
| 28 | 8M0051379 |
ВАЛ Дроссельная заслонка SHAFT Throttle |
1 | |
| 29 | 8M0221732 |
GRIP OUTER GRIP OUTER |
1 | |
| 3 | 8M0162938 |
SCREW Power Tilt Models Only SCREW Power Tilt Models Only |
1 | |
| 30 | 8M0051380 |
КРОНШТЕЙН BRACKET |
1 | |
| 31 | 8M0051381 |
ВИНТ SCREW |
2 | |
| 32 | 8M0051388 |
КРЫШКА COVER |
1 | |
| 33 | 8M0051386 |
ШКИВ PULLEY |
1 | |
| 34 | 8M0051387 |
КОРПУС HOUSING |
1 | |
| 35 | 878608 |
ВИНТ (№10-16 x 0.500) SCREW (#10-16 x .500) |
1 | |
| 36 | 8M0228421 |
DECAL Shift DECAL Shift |
1 | |
| 37 | 8M0051377 |
РУКОЯТКА GRIP |
1 | |
| 38 | 8M0138447 |
ЗАЖИМ Вилка троса, запасная CLIP Lanyard Fork, Spare |
1 | |
| 39 | 8M0228554 |
DECAL Spare Clip DECAL Spare Clip |
1 | |
| 4 | 8M0051404 |
ШАЙБА Резина WASHER Rubber |
2 | |
| 40 | 8M0164892 |
LANYARD ASSEMBLY 54 Inches LANYARD ASSEMBLY 54 Inches |
1 | discontinued |
| 41 | 8M0229972 |
SWITCH Power Trim Power Tilt Models Only SWITCH Power Trim Power Tilt Models Only |
1 | |
| 42 | 8M0228417 |
STOP SWITCH ASSEMBLY STOP SWITCH ASSEMBLY |
1 | |
| 43 | 8M0051405 |
ПЕРЕКЛЮЧАТЕЛЬ В СБОРЕ Стоп SWITCH ASSEMBLY Stop |
1 | |
| 44 | 8M0228418 |
CABLE Throttle CABLE Throttle |
2 | |
| 5 | 8M0051403 |
ВТУЛКА Пластик BUSHING Plastic |
2 | |
| 6 | 8M0051400 |
КРЫШКА COVER |
1 | |
| 7 | 8M0051402 |
БОЛТ Нержавеющая сталь BOLT Stainless Steel |
1 | |
| 8 | 823042 |
БОЛТ BOLT |
1 | |
| 9 | 8M0228416 |
COVER Tiller Handle COVER Tiller Handle |
1 |
