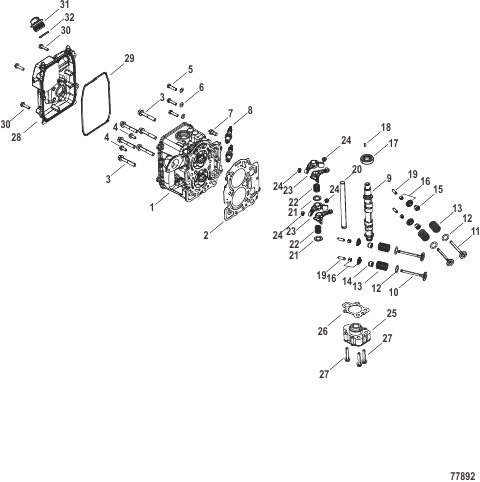

Cylinder Head
Parts (36)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0223364 |
ENGINE LONG BLOCK ENGINE LONG BLOCK |
1 | |
| - | 8M0227810 |
POWERHEAD GASKET SET POWERHEAD GASKET SET |
1 | |
| - | 8M0227353 |
SERVICE KIT 8 - 9.9 EFI (300 Hour) SERVICE KIT 8 - 9.9 EFI (300 Hour) |
1 | |
| - | 8M0227355 |
SERVICE KIT 8 - 9.9 EFI Command Thrust (300 Hour) SERVICE KIT 8 - 9.9 EFI Command Thrust (300 Hour) |
1 | |
| 1 | 8M0223370 |
CYLINDER HEAD CYLINDER HEAD |
1 | |
| 10 | 850838T01 |
КЛАПАН Впуск VALVE Intake |
2 | |
| 11 | 850839T01 |
КЛАПАН Выхлоп VALVE Exhaust |
2 | |
| 12 | 855959001 |
СИДЕНЬЕ SEAT |
4 | |
| 13 | 803554005 |
ПРУЖИНА Клапан SPRING Valve |
4 | |
| 14 | 822647001 |
УПЛОТНЕНИЕ Впуск – черный SEAL Intake - Black |
2 | |
| 15 | 822647002 |
УПЛОТНЕНИЕ Выхлоп – зеленый SEAL Exhaust - Green |
2 | |
| 16 | 8M0152418 |
ФИКСАТОР В СБОРЕ RETAINER ASSEMBLY |
4 | |
| 17 | 825455001 |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | |
| 18 | 95229 |
КЛЮЧ KEY |
1 | |
| 19 | 825046001 |
ВИНТ Регулировка SCREW Adjusting |
4 | |
| 2 | 8M0223373 |
GASKET Cylinder Head GASKET Cylinder Head |
1 | |
| 20 | 8M0135584 |
ВАЛ Рычаг коромысла SHAFT Rocker Arm |
1 | |
| 21 | 895118001 |
ШАЙБА WASHER |
2 | |
| 22 | 825452001 |
ПРУЖИНА SPRING |
2 | |
| 23 | 8M0186926 |
ROCKER ARM ROCKER ARM |
4 | |
| 24 | 826150001 |
ГАЙКА Регулировка NUT Adjusting |
4 | |
| 25 | 834967T03 |
НАСОС В СБОРЕ Масло PUMP ASSEMBLY Oil |
1 | |
| 26 | 8M0223372 |
GASKET Oil Pump GASKET Oil Pump |
1 | |
| 27 | 8M0147119 |
BOLT BOLT |
3 | |
| 28 | 8M0223376 |
COVER Cylinder Head Cover COVER Cylinder Head Cover |
1 | |
| 29 | 803508017 |
ПРОКЛАДКА GASKET |
1 | |
| 3 | 8M0223366 |
BOLT BOLT |
6 | |
| 30 | 823042 |
БОЛТ BOLT |
4 | |
| 31 | 8M0135589 |
ПРОБКА Заливка масла CAP Oil Fill |
1 | |
| 32 | 803513007 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 4 | 8248324 |
ВИНТ (M6 x 16) SCREW (M6 x 16) |
2 | |
| 5 | 8M0139438 |
БОЛТ BOLT |
3 | |
| 6 | 16826 |
ШАЙБА Нержавеющая сталь WASHER Stainless Steel |
3 | |
| 7 | 8M0186989 |
SENSOR Engine Temperature SENSOR Engine Temperature |
1 | |
| 8 | 8M0204682 |
SPARK PLUG SPARK PLUG |
2 | superseded |
| 9 | 8M0223371 |
CAMSHAFT ASSEMBLY CAMSHAFT ASSEMBLY |
1 |
