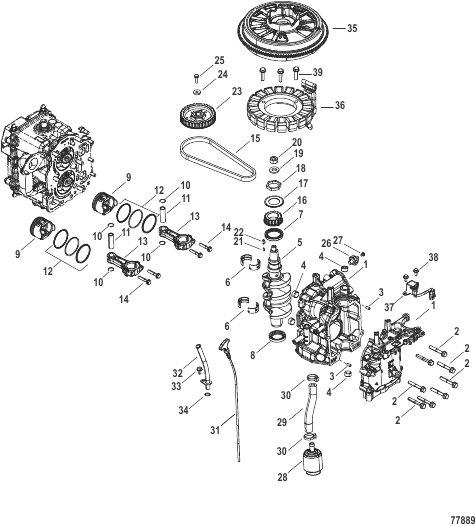

Cylinder Block
Parts (43)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0223364 |
ENGINE LONG BLOCK ENGINE LONG BLOCK |
1 | |
| - | 8M0227805 |
ELECTRIC START KIT ELECTRIC START KIT |
1 | |
| - | 8M0227808 |
BATTERY CHARGING KIT BATTERY CHARGING KIT |
1 | |
| 1 | 8M0223365 |
CYLINDER BLOCK CYLINDER BLOCK |
1 | |
| 10 | 16057 |
ЗАЖИМ CLIP |
4 | |
| 11 | 825713002 |
ШТИФТ Поршень PIN Piston |
2 | |
| 12 | 803678T05 |
НАБОР КОЛЕЦ Поршень RING SET Piston |
2 | |
| 13 | 8M0125694 |
CONNECTING ROD ASSEMBLY CONNECTING ROD ASSEMBLY |
2 | |
| 14 | 8035092 |
БОЛТ BOLT |
4 | |
| 15 | 8M0223381 |
BELT TIMING BELT TIMING |
1 | |
| 16 | 8M0186929 |
DRIVE PULLEY DRIVE PULLEY |
1 | |
| 17 | 8M0223380 |
GUIDE BELT GUIDE BELT |
1 | |
| 18 | 855679004 |
ГАЙКА NUT |
1 | |
| 19 | 8M0186812 |
WASHER WASHER |
1 | |
| 2 | 8M0229968 |
BOLT BOLT |
8 | |
| 20 | 16071 |
ГАЙКА NUT |
1 | |
| 21 | 95229 |
КЛЮЧ KEY |
1 | |
| 22 | 825666001 |
КЛЮЧ KEY |
1 | |
| 23 | 8M0186930 |
GEAR Driven GEAR Driven |
1 | |
| 24 | 895118 |
ШАЙБА WASHER |
1 | |
| 25 | 803858001 |
БОЛТ BOLT |
1 | |
| 26 | 8M0163139 |
SWITCH ASSEMBLY Oil Pressure SWITCH ASSEMBLY Oil Pressure |
1 | |
| 27 | 898101957 |
ВИНТ SCREW |
1 | |
| 28 | 8M0229970 |
OIL STRAINER OIL STRAINER |
1 | |
| 29 | 8M0206068 |
HOSE HOSE |
1 | |
| 3 | 16119 |
ШТИФТ Штифт PIN Dowel |
2 | |
| 30 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
2 | |
| 31 | 8M0223378 |
GAUGE OIL LEVEL Dipstick GAUGE OIL LEVEL Dipstick |
1 | |
| 32 | 8M0223379 |
GUIDE OIL LEVEL Dipstick Tube GUIDE OIL LEVEL Dipstick Tube |
1 | |
| 33 | 8M0155474 |
ВИНТ SCREW |
1 | |
| 34 | 804840007 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 35 | 8M0223429 |
FLYWHEEL ASSEMBLY FLYWHEEL ASSEMBLY |
1 | |
| 36 | 8M0223430 |
ALTERNATOR Manual Start Models Only ALTERNATOR Manual Start Models Only |
1 | |
| 36 | 8M0134470 |
ГЕНЕРАТОР Electric Start Models Only ALTERNATOR Electric Start Models Only |
1 | |
| 37 | 8M0135822 |
КАТУШКА Генератор импульсов COIL Pulsar |
1 | |
| 38 | 823042067 |
ВИНТ SCREW |
2 | |
| 39 | 823042 |
БОЛТ BOLT |
3 | |
| 4 | 8M0186780 |
PLUG Taper PLUG Taper |
4 | |
| 5 | 8M0223369 |
CRANKSHAFT CRANKSHAFT |
1 | |
| 6 | 8M0054681 |
BEARING- 1 PAIR BEARING- 1 PAIR |
2 | |
| 7 | 898103114 |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | |
| 8 | 855681001 |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | |
| 9 | 834963A02 |
ПОРШЕНЬ В СБОРЕ PISTON ASSEMBLY |
2 |
