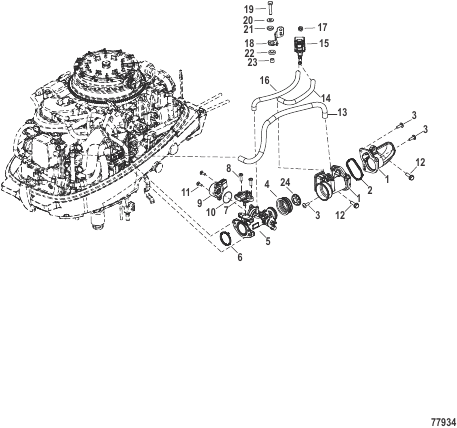

Intake System
Parts (26)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0227810 |
POWERHEAD GASKET SET POWERHEAD GASKET SET |
1 | |
| 1 | 8M0223384 |
INTAKE SILENCER ASSEMBLY INTAKE SILENCER ASSEMBLY |
1 | |
| 10 | 8M0199276 |
ORING ORING |
1 | |
| 11 | 8M0153617 |
ВИНТ SCREW |
2 | |
| 12 | 167051 |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
2 | |
| 13 | 8M0223386 |
BREATHER HOSE Crankcase Ventiliation BREATHER HOSE Crankcase Ventiliation |
1 | discontinued |
| 14 | 8M0223409 |
HOSE HOSE |
1 | |
| 15 | 8M0223411 |
IAC VALVE IAC VALVE |
1 | |
| 16 | 8M0223410 |
HOSE HOSE |
1 | |
| 17 | 400212 |
ГАЙКА (M6), нержавеющая сталь NUT (M6) Stainless Steel |
1 | |
| 18 | 8M0223412 |
BRACKET IAC BRACKET IAC |
1 | |
| 19 | 8M0223408 |
BOLT BOLT |
1 | |
| 2 | 8M0223388 |
GASKET GASKET |
1 | |
| 20 | 953921 |
ШАЙБА Нержавеющая сталь WASHER Stainless Steel |
1 | |
| 21 | 953924 |
ШАЙБА (Резина) WASHER (Rubber) |
1 | |
| 22 | 953923 |
ШАЙБА Резина WASHER Rubber |
1 | |
| 23 | 952868 |
ВТУЛКА COLLAR |
1 | |
| 24 | 8M6014783 |
RESTRICTOR 6 HP RESTRICTOR 6 HP |
1 | |
| 24 | 8M0229966 |
RESTRICTOR 8 HP RESTRICTOR 8 HP |
1 | |
| 3 | 8M0229964 |
SCREW Tapping SCREW Tapping |
3 | |
| 4 | 8M0223385 |
GASKET Intake SIlencer Grommet, Intake GASKET Intake SIlencer Grommet, Intake |
1 | |
| 5 | 8M0223382 |
THROTTLE BODY THROTTLE BODY |
1 | |
| 6 | 8M0223383 |
GASKET Throttle Body GASKET Throttle Body |
1 | |
| 7 | 8M0132303 |
ДАТЧИК TMAP SENSOR TMAP |
1 | |
| 8 | 8M0137307 |
ВИНТ SCREW |
2 | |
| 9 | 8M0191652 |
SENSOR Throttle Position SENSOR Throttle Position |
1 |
