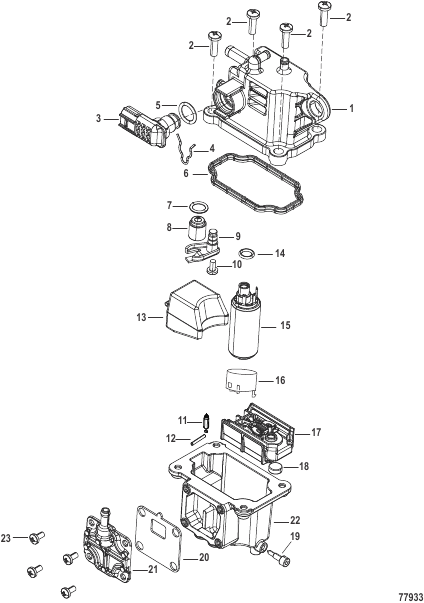

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0223390 |
VAPOR SEPERATOR
|
1 |
|
| 1 |
8M0190952 |
VAPOR SEPERATOR Upper
|
1 |
|
| 10 |
855544013 |
SCREW
|
1 |
|
| 11 |
8M0135598 |
FLOAT VALVE ASSEMBLY
|
1 |
|
| 12 |
8M0135599 |
FLOAT ARM PIN
|
1 |
|
| 13 |
8M0135600 |
FLOAT
|
1 |
|
| 14 |
8M0135605 |
ORING
|
1 |
|
| 15 |
8M0134464 |
FUEL FEED PUMP
|
1 |
|
| 16 |
8M0135603 |
CAP
|
1 |
|
| 17 |
8M0135602 |
FILTER Inlet
|
1 |
|
| 18 |
8M0135601 |
GROMMET
|
1 |
|
| 19 |
8M0135596 |
SCREW Drain
|
1 |
|
| 2 |
8M0137307 |
SCREW
|
4 |
|
| 20 |
8M0223393 |
SEAL
|
1 |
|
| 21 |
8M0223392 |
COVER
|
1 |
|
| 22 |
8M0223391 |
BODY Vapor Seperator
|
1 |
|
| 23 |
855544014 |
SCREW
|
4 |
|
| 3 |
8M0137305 |
VST CONNECTOR
|
1 |
|
| 4 |
8M0137306 |
CLIP
|
1 |
|
| 5 |
8M0135606 |
ORING
|
1 |
|
| 6 |
8M0135597 |
GASKET
|
1 |
|
| 7 |
8M0135607 |
ORING
|
1 |
|
| 8 |
8M0134465 |
FUEL REGULATOR
|
1 |
|
| 9 |
8M0135604 |
HOLDER Regulator
|
1 |
|
