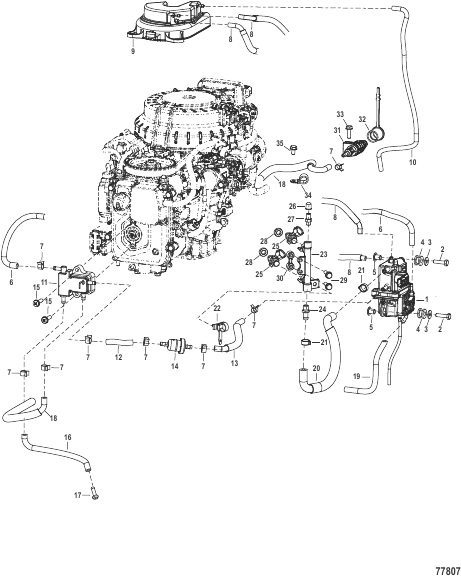

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0238935 |
SEAL KIT Seals and O-rings for two injectors
|
1 |
|
| 1 |
8M0223390 |
VAPOR SEPERATOR
|
1 |
|
| 10 |
8M0223404 |
FUEL HOSE Vapor Hose
|
1 |
|
| 11 |
803529T07 |
PUMP ASSEMBLY Fuel-Complete Only
|
1 |
|
| 12 |
8M0229584 |
HOSE Fuel, Low Permeation
|
1 |
|
| 13 |
8M0229586 |
HOSE Fuel
|
1 |
|
| 14 |
8M0157133 |
FILTER Fuel
|
1 |
|
| 15 |
855544021 |
SCREW (M6 x 25 MM)
|
2 |
|
| 16 |
8M0223482 |
HOSE
|
1 |
|
| 17 |
8M0057111 |
NIPPLE
|
1 |
|
| 18 |
8M0229960 |
HOSE Fuel
|
1 |
|
| 19 |
8M0223395 |
HOSE
|
1 |
|
| 2 |
8M0204707 |
SCREW M6 x 25 HX HD CAP SS
|
4 |
|
| 20 |
8M0223394 |
FUEL HOSE
|
1 |
|
| 21 |
898101237 |
CLAMP
|
2 |
|
| 22 |
8M0155470 |
RETAINER
|
1 |
|
| 23 |
8M0223387 |
FUEL RAIL ASSEMBLY
|
1 |
|
| 24 |
8M0223389 |
NIPPLE
|
1 |
|
| 25 |
8M0186939 |
FUEL INJECTOR ASSEMBLY
|
2 |
|
| 26 |
805515001 |
CAP Valve
|
1 |
|
| 27 |
8M0225719 |
VALVE
|
1 |
|
| 28 |
8M0186940 |
SEAL RING
|
2 |
|
| 29 |
823042 |
BOLT
|
2 |
|
| 3 |
953921 |
WASHER Stainless Steel
|
4 |
|
| 30 |
8M0134460 |
INSULATOR
|
1 |
|
| 31 |
8M0187743 |
FUEL CONNECTOR Body
|
1 |
|
| 32 |
8M0189960 |
PROTECTOR Fuel Connector
|
1 |
|
| 33 |
167051 |
BOLT (M6 x 20)
|
1 |
|
| 34 |
953951 |
CLAMP
|
1 |
|
| 35 |
8M0155474 |
SCREW
|
1 |
|
| 4 |
8M0135593 |
MOUNT Rubber
|
4 |
|
| 5 |
8M0137298 |
COLLAR
|
4 |
|
| 6 |
8M0223396 |
WATER HOSE
|
1 |
|
| 7 |
8M0129429 |
HOSE CLAMP
|
8 |
|
| 8 |
8M0223403 |
VENT HOSE
|
2 |
|
| 9 |
8M0223413 |
COVER Belt
|
1 |
|
