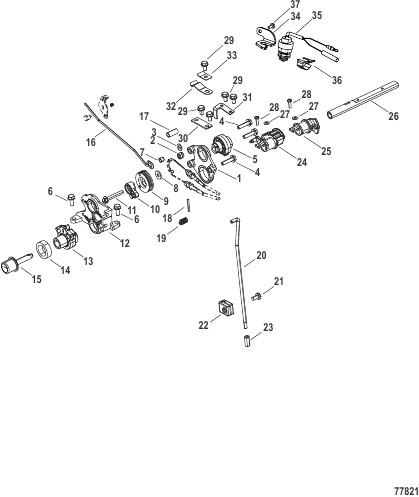

Shifting System Tiller
Parts (42)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0226901 |
CONVERSION KIT Remote Control Models to Tiller Models CONVERSION KIT Remote Control Models to Tiller Models |
1 | |
| - | 8M0227805 |
ELECTRIC START KIT ELECTRIC START KIT |
1 | |
| 1 | 895159 |
ПЛАСТИНА ШЕСТЕРНИ GEAR PLATE |
1 | |
| 10 | 8M0223424 |
THROTTLE OPENER THROTTLE OPENER |
1 | |
| 11 | 8M0102279 |
БОЛТ BOLT |
1 | |
| 12 | 895158 |
ПЛАСТИНА ШЕСТЕРНИ GEAR PLATE |
1 | |
| 13 | 895161 |
ПЕРЕДАЧА Ведомый GEAR Driven |
1 | |
| 14 | 8M0223427 |
SEAL RING SEAL RING |
1 | |
| 15 | 892772 |
РУЧКА KNOB |
1 | |
| 16 | 8M0223417 |
THROTTLE ROD Tiller THROTTLE ROD Tiller |
1 | |
| 17 | 895162001 |
COLLAR Steel COLLAR Steel |
1 | |
| 18 | 16085003 |
ШТИФТ PIN |
1 | |
| 19 | 813028003 |
ПРУЖИНА SPRING |
1 | |
| 2 | 8537227 |
ГАЙКА Нейлон NUT Nylon |
1 | |
| 20 | 8M0229576 |
SHIFT SHAFT Upper SHIFT SHAFT Upper |
1 | |
| 21 | 16827 |
ВИНТ SCREW |
1 | |
| 22 | 804906001 |
ЗАМОК Задняя LOCK Reverse |
1 | |
| 23 | 803767002 |
МУФТА COUPLER |
1 | |
| 24 | 803768002 |
ФИКСАТОР ПЕРЕДАЧИ Standard SHIFT DETENT Standard |
1 | |
| 24 | 802971001 |
ФИКСАТОР ПЕРЕДАЧИ Command Thrust SHIFT DETENT Command Thrust |
1 | |
| 25 | 8M0223426 |
LEVER LEVER |
1 | |
| 26 | 8M0223425 |
SHAFT SHAFT |
1 | |
| 27 | 16335 |
ШАЙБА Standard WASHER Standard |
1 | |
| 27 | 16335 |
ШАЙБА Command Thrust WASHER Command Thrust |
1 | |
| 28 | 855544014 |
ВИНТ Standard SCREW Standard |
1 | |
| 28 | 855544014 |
ВИНТ Command Thrust SCREW Command Thrust |
1 | |
| 29 | 8M0155474 |
ВИНТ SCREW |
5 | |
| 3 | 16826 |
ШАЙБА Нержавеющая сталь WASHER Stainless Steel |
1 | |
| 30 | 895157 |
КРОНШТЕЙН BRACKET |
1 | |
| 31 | 8M0230557 |
BRACKET Stop BRACKET Stop |
1 | |
| 32 | 8M0155407 |
SPRING Shift Detent SPRING Shift Detent |
1 | |
| 33 | 8M0135810 |
СТОПОР Рычаг переключения передач SHIFT DETENT Supporter |
1 | |
| 34 | 8M0223483 |
BRACKET Neutral Switch BRACKET Neutral Switch |
1 | |
| 35 | 8M0226903 |
SWITCH Neutral SWITCH Neutral |
1 | |
| 36 | 8M0223484 |
ACTUATOR Neutral Switch ACTUATOR Neutral Switch |
1 | |
| 37 | 8M0155474 |
ВИНТ SCREW |
1 | |
| 4 | 823042 |
БОЛТ BOLT |
3 | |
| 5 | 895101400 |
GEAR Drive GEAR Drive |
1 | |
| 6 | 8248324 |
ВИНТ (M6 x 16) SCREW (M6 x 16) |
2 | |
| 7 | 895126 |
ВТУЛКА (6 мм) COLLAR (6 mm) |
1 | |
| 8 | 953921 |
ШАЙБА Нержавеющая сталь WASHER Stainless Steel |
1 | |
| 9 | 895101401 |
БАК Дроссельная заслонка DRUM Throttle |
1 |
