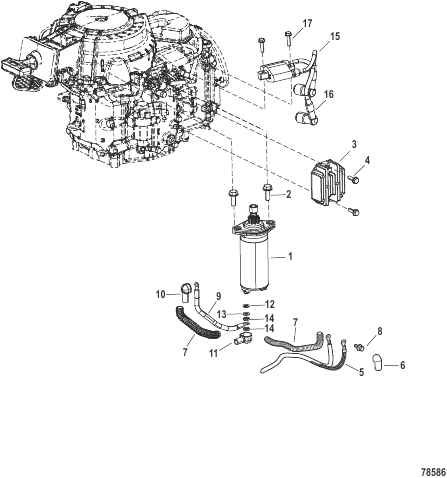

Starting Starter Motor, Rectifier, Ignition Coil
Parts (19)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0227805 |
ELECTRIC START KIT ELECTRIC START KIT |
1 | |
| - | 8M0227808 |
BATTERY CHARGING KIT BATTERY CHARGING KIT |
1 | |
| 1 | 8M0223446 |
STARTER MOTOR STARTER MOTOR |
1 | |
| 10 | 853816004 |
ЧЕХОЛ Красный BOOT Red |
1 | |
| 11 | 853816003 |
ЧЕХОЛ Красный BOOT Red |
1 | |
| 12 | 400256 |
СТОПОРНАЯ ШАЙБА (M6) LOCKWASHER (M6) |
1 | |
| 13 | 16826 |
ШАЙБА Нержавеющая сталь WASHER Stainless Steel |
1 | |
| 14 | 853722026 |
ГАЙКА NUT |
2 | |
| 15 | 8M0223444 |
IGNITION COIL IGNITION COIL |
1 | |
| 16 | 8M0223445 |
CAP PLUG CAP PLUG |
2 | |
| 17 | 823042 |
БОЛТ BOLT |
2 | |
| 2 | 823042073 |
ВИНТ SCREW |
2 | |
| 3 | 8M0134477 |
ВЫПРЯМИТЕЛЬ RECTIFIER |
1 | |
| 4 | 167051 |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
2 | |
| 5 | 898101T06 |
КАБЕЛЬ В СБОРЕ Аккумулятор CABLE ASSEMBLY Battery |
1 | |
| 6 | 853741001 |
ПРОБКА Клемма CAP Terminal |
1 | |
| 7 | 8M0223447 |
PROTECTOR PROTECTOR |
2 | |
| 8 | 8M0155474 |
ВИНТ SCREW |
1 | |
| 9 | 8M0069818 |
CABLE Ground CABLE Ground |
1 |
