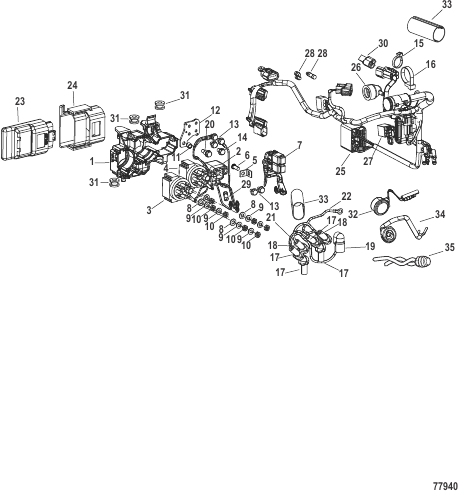

Electrical ECU and Engine Harness
Parts (41)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0226901 |
CONVERSION KIT Remote Control Models to Tiller Models CONVERSION KIT Remote Control Models to Tiller Models |
1 | |
| - | 8M0227805 |
ELECTRIC START KIT ELECTRIC START KIT |
1 | |
| - | 8M0227954 |
CONVERSION KIT Tiller Handle Models to Remote Control Models CONVERSION KIT Tiller Handle Models to Remote Control Models |
1 | |
| 1 | 8M0223431 |
BRACKET Electric BRACKET Electric |
1 | |
| 10 | 853722026 |
ГАЙКА NUT |
7 | |
| 11 | 8M0223432 |
COLLAR COLLAR |
1 | |
| 12 | 8M0223433 |
BRACKET BRACKET |
1 | |
| 13 | 823042059 |
БОЛТ BOLT |
5 | |
| 14 | 8M0155474 |
ВИНТ SCREW |
1 | |
| 15 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
1 | |
| 16 | 8M0186819 |
BAND Cable Tie BAND Cable Tie |
1 | |
| 17 | 853816004 |
ЧЕХОЛ Красный BOOT Red |
4 | |
| 18 | 8538161 |
ПРОБКА CAP |
2 | |
| 19 | 853741001 |
ПРОБКА Клемма CAP Terminal |
1 | |
| 2 | 8M0186993 |
STARTER SOLENOID STARTER SOLENOID |
1 | |
| 20 | 167051 |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
1 | |
| 21 | 8M0223439 |
SOLENOID SWITCH HARNESS SOLENOID SWITCH HARNESS |
1 | |
| 22 | 8M0228894 |
SWITCH Solenoid SWITCH Solenoid |
1 | |
| 23 | 8M0237320 |
ECU 6 HP ECU 6 HP |
1 | |
| 23 | 8M0223434 |
ECU 8 HP ECU 8 HP |
1 | |
| 23 | 8M0223435 |
ECU 9.9 HP ECU 9.9 HP |
1 | |
| 24 | 8M0223436 |
HOLDER ECU HOLDER ECU |
1 | |
| 25 | 8M0223437 |
HARNESS Engine Tiller Handle Models Only HARNESS Engine Tiller Handle Models Only |
1 | superseded |
| 25 | 8M0223438 |
HARNESS Engine Remote Control Models Only HARNESS Engine Remote Control Models Only |
1 | superseded |
| 26 | 8M0106928 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | |
| 27 | 8M0135546 |
ВТУЛКА BUSHING |
1 | |
| 28 | 853994 |
ПРОБКА PLUG |
4 | |
| 29 | 8M0137324 |
КОЛПАЧОК КЛЕММЫ TERMINAL COVER |
2 | |
| 3 | 8518391 |
ЭЛЕКТРОМАГНИТНЫЙ ПЕРЕКЛЮЧАТЕЛЬ SOLENOID SWITCH |
1 | |
| 30 | 8M0137325 |
КОЛПАЧОК КЛЕММЫ TERMINAL COVER |
1 | |
| 31 | 8M0135593 |
КРЕПЛЕНИЕ Резина MOUNT Rubber |
3 | |
| 32 | 802808A1 |
ЗУММЕР В СБОРЕ Перегрев Alarm BUZZER ASSEMBLY Overheat Alarm |
1 | |
| 33 | 8M0223443 |
PROTECTOR PROTECTOR |
2 | |
| 34 | 804057001 |
СИГНАЛЬНАЯ ЛАМПА Warning Light PILOT LAMP Warning Light |
1 | |
| 35 | 853820A02 |
ПЕРЕКЛЮЧАТЕЛЬ В СБОРЕ Пуск Start Button SWITCH ASSEMBLY Start Start Button |
1 | |
| 4 | 851839 |
ЭЛЕКТРОМАГНИТНЫЙ ПЕРЕКЛЮЧАТЕЛЬ SOLENOID SWITCH |
1 | |
| 5 | 892779 |
КРОНШТЕЙН BRACKET |
1 | |
| 6 | 16257003 |
ВИНТ Нарезной – нержавеющая сталь SCREW Tapping - Stainless Steel |
1 | |
| 7 | 8M0223440 |
FUSE WIRE ASSEMBLY FUSE WIRE ASSEMBLY |
1 | |
| 8 | 16826 |
ШАЙБА Нержавеющая сталь WASHER Stainless Steel |
4 | |
| 9 | 400256 |
СТОПОРНАЯ ШАЙБА (M6) LOCKWASHER (M6) |
7 |
