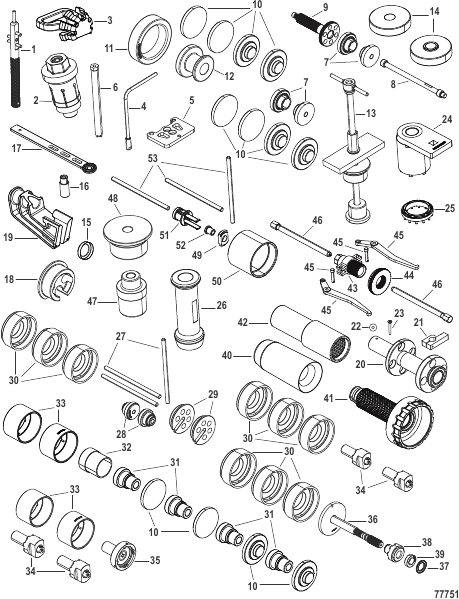

Tools Gearcase
Parts (60)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0230657 |
TOOL Front Cup Puller TOOL Front Cup Puller |
1 | |
| 1 | 8M0222236 |
TOOL Nose Cap Installation Install Nosecap TOOL Nose Cap Installation Install Nosecap |
1 | |
| 10 | 8M0222241 |
TOOL Mandrel Front Gear Install Front Gear Cone TOOL Mandrel Front Gear Install Front Gear Cone |
1 | |
| 10 | 8M0222241 |
TOOL Mandrel Front Gear Install Front Gear Retaining Ring TOOL Mandrel Front Gear Install Front Gear Retaining Ring |
1 | |
| 10 | 8M0222241 |
TOOL Mandrel Front Gear Needle Bearing Rear Gear/Cones and Spacers Rear Gear TOOL Mandrel Front Gear Needle Bearing Rear Gear/Cones and Spacers Rear Gear |
1 | |
| 11 | 8M0222242 |
TOOL Guide Snap Ring Installation Install Front Gear Retaining Ring TOOL Guide Snap Ring Installation Install Front Gear Retaining Ring |
1 | |
| 12 | 8M0222243 |
TOOL Driver Snap Ring Installation Install Front Gear Retaining Ring TOOL Driver Snap Ring Installation Install Front Gear Retaining Ring |
1 | |
| 13 | 8M0222244 |
TOOL Installation Pinion Bearing Pinion Bearing Tools TOOL Installation Pinion Bearing Pinion Bearing Tools |
1 | |
| 14 | 8M0222245 |
TOOL Driver Driveshaft Bearing Driveshaft Bearing TOOL Driver Driveshaft Bearing Driveshaft Bearing |
1 | |
| 15 | 8M0224205 |
TOOL Guide Clutch Spring Pinion Nut and Clutch Spring TOOL Guide Clutch Spring Pinion Nut and Clutch Spring |
1 | |
| 16 | 8M0222246 |
TOOL Coupler Driveshaft Spline Pinion Nut and Clutch Spring TOOL Coupler Driveshaft Spline Pinion Nut and Clutch Spring |
1 | |
| 17 | 8M0222247 |
TOOL Wrench Lower Pinion Nut Pinion Nut and Clutch Spring TOOL Wrench Lower Pinion Nut Pinion Nut and Clutch Spring |
1 | |
| 18 | 8M0222248 |
TOOL Plate Holder Pinion Wrench Pinion Nut and Clutch Spring TOOL Plate Holder Pinion Wrench Pinion Nut and Clutch Spring |
1 | |
| 19 | 8M0224206 |
TOOL Propshaft Holder Pinion Nut and Clutch Spring TOOL Propshaft Holder Pinion Nut and Clutch Spring |
1 | |
| 2 | 8M0222269 |
TOOL Mandrel Prop Bushing Install Prop-Hub Bushing TOOL Mandrel Prop Bushing Install Prop-Hub Bushing |
1 | |
| 20 | 8M0222250 |
TOOL Pinion Height Gage Pinion Height/Backlash Flag TOOL Pinion Height Gage Pinion Height/Backlash Flag |
1 | |
| 21 | 8M0222251 |
TOOL Backlash Indicator Pinion Height/Backlash Flag TOOL Backlash Indicator Pinion Height/Backlash Flag |
1 | |
| 22 | 35044 |
ШАЙБА (0.281 x 0.625 x 0.065), нержавеющая сталь Pinion Height/Backlash Flag WASHER (.281 x .625 x .065) Stainless Steel Pinion Height/Backlash Flag |
1 | |
| 23 | 865648 |
ВИНТ ГОЛОВКА С УГЛУБЛЕНИЕМ ПОД КЛЮЧ 0.250-20X1.75 Pinion Height/Backlash Flag SCREW .250-20X1.75 SOCKET HEAD Pinion Height/Backlash Flag |
1 | |
| 24 | 8M0222252 |
TOOL Retainer Bearing/Seal Carrier Driveshaft Bearing Nut TOOL Retainer Bearing/Seal Carrier Driveshaft Bearing Nut |
1 | |
| 25 | 8M0224207 |
TOOL Bearing Retainer Install Driveshaft Bearing Nut TOOL Bearing Retainer Install Driveshaft Bearing Nut |
1 | |
| 26 | 8M0222253 |
TOOL Driver Pump Face Seal Pump V Seal TOOL Driver Pump Face Seal Pump V Seal |
1 | |
| 27 | 37323 |
ИНСТРУМЕНТ ДЛЯ ШТОКА ВЫКОЛОТКИ Игольчатые подшипники Real Seal and Cup Bearing Carrier DRIVER ROD TOOL Needle Bearings Real Seal and Cup Bearing Carrier |
1 | |
| 28 | 8M0222254 |
TOOL Driver Rear Carrier Seal/Cup Real Seal and Cup Bearing Carrier TOOL Driver Rear Carrier Seal/Cup Real Seal and Cup Bearing Carrier |
1 | |
| 29 | 8M0222255 |
TOOL Guide Plate Bearing Carrier Real Seal and Cup Bearing Carrier TOOL Guide Plate Bearing Carrier Real Seal and Cup Bearing Carrier |
1 | |
| 3 | 8M0224204 |
TOOL Pilot Torp Plug Mandrel Install Torpedo Plug TOOL Pilot Torp Plug Mandrel Install Torpedo Plug |
1 | |
| 30 | 8M0222256 |
TOOL Stand Bearing Carrier Real Seal and Cup Bearing Carrier TOOL Stand Bearing Carrier Real Seal and Cup Bearing Carrier |
1 | |
| 30 | 8M0222256 |
TOOL Stand Bearing Carrier Rear Gear Assembly Into Carrier TOOL Stand Bearing Carrier Rear Gear Assembly Into Carrier |
1 | |
| 30 | 8M0222256 |
TOOL Stand Bearing Carrier Rear Gear Rolling Torque TOOL Stand Bearing Carrier Rear Gear Rolling Torque |
1 | |
| 31 | 8M0222257 |
TOOL Driver Needle Bearing Rear Gear Needle Bearing Rear Gear/Cones and Spacers Rear Gear TOOL Driver Needle Bearing Rear Gear Needle Bearing Rear Gear/Cones and Spacers Rear Gear |
1 | |
| 32 | 8M0222258 |
TOOL Driver Cones/Spacers Rear Gear Needle Bearing Rear Gear/Cones and Spacers Rear Gear TOOL Driver Cones/Spacers Rear Gear Needle Bearing Rear Gear/Cones and Spacers Rear Gear |
1 | |
| 33 | 8M0224303 |
TOOL Preload Driver Needle Bearing Rear Gear/Cones and Spacers Rear Gear TOOL Preload Driver Needle Bearing Rear Gear/Cones and Spacers Rear Gear |
1 | |
| 33 | 8M0224303 |
TOOL Preload Driver Torque Nut Rear Gear Bearings TOOL Preload Driver Torque Nut Rear Gear Bearings |
1 | |
| 34 | 8M0222260 |
TOOL Back Gear Holder/Rolling Torque Torque Nut Rear Gear Bearings TOOL Back Gear Holder/Rolling Torque Torque Nut Rear Gear Bearings |
1 | |
| 34 | 8M0222260 |
TOOL Back Gear Holder/Rolling Torque Rear Gear Rolling Torque TOOL Back Gear Holder/Rolling Torque Rear Gear Rolling Torque |
1 | |
| 35 | 8M0224208 |
TOOL Nut Driver Rear Gear Torque Nut Rear Gear Bearings TOOL Nut Driver Rear Gear Torque Nut Rear Gear Bearings |
1 | |
| 36 | 8M0142983 |
НЕСУЩИЙ КОРПУС ПОДШИПНИКА ВАЛА В СБОРЕ Rear Gear Assembly Into Carrier SHAFT TOOL Bearing Carrier Assembly Rear Gear Assembly Into Carrier |
1 | |
| 37 | 861792 |
ИНСТРУМЕНТ Блок подшипника Rear Gear Assembly Into Carrier BEARING Thrust Rear Gear Assembly Into Carrier |
1 | |
| 38 | 8M0222259 |
TOOL Threaded Clutch Assembly Rear Gear Assembly Into Carrier TOOL Threaded Clutch Assembly Rear Gear Assembly Into Carrier |
1 | |
| 39 | 8M0142974 |
ФИКСАТОР ПРИСПОСОБЛЕНИЯ ДЛЯ СЖАТИЯ Rear Gear Assembly Into Carrier RETAINER PRESS FIXTURE Rear Gear Assembly Into Carrier |
1 | |
| 4 | 8M0142973 |
ИНСТРУМЕНТ ДЛЯ РУКОЯТКИ ВАЛА ПЕРЕКЛЮЧЕНИЯ ПЕРЕДАЧ Install Shift-Shaft Components SHIFT SHAFT HANDLE TOOL Install Shift-Shaft Components |
1 | |
| 40 | 8M0222261 |
TOOL Guide Bearing Carrier Seal Seal Saver TOOL Guide Bearing Carrier Seal Seal Saver |
1 | |
| 41 | 8M0222262 |
TOOL Retainer Nut Bearing Carrier Bearing Carrier Nut TOOL Retainer Nut Bearing Carrier Bearing Carrier Nut |
1 | |
| 42 | 8M0222263 |
TOOL Propshaft Coupler Roll Propshaft Spline Coupler TOOL Propshaft Coupler Roll Propshaft Spline Coupler |
1 | |
| 43 | 8M0222264 |
TOOL Cross Block Bearing Carrier Bearing Carrier Removal TOOL Cross Block Bearing Carrier Bearing Carrier Removal |
1 | |
| 44 | 8M0222265 |
TOOL Cone Puller Jaws Bearing Carrier Removal TOOL Cone Puller Jaws Bearing Carrier Removal |
1 | |
| 45 | 8M0224292 |
TOOL Puller Jaw Assembly Bearing Carrier Removal TOOL Puller Jaw Assembly Bearing Carrier Removal |
1 | |
| 46 | 85716 |
БОЛТ-СЪЕМНИК Стакан подшипника Bearing Carrier Removal PULLER BOLT TOOL Bearing Carrier Bearing Carrier Removal |
1 | discontinued |
| 47 | 8M0222266 |
TOOL Driver Pinion Bearing Removal Pinion Bearing Removal TOOL Driver Pinion Bearing Removal Pinion Bearing Removal |
1 | |
| 48 | 8M0224210 |
TOOL Guide Pinion Bearing Pinion Bearing Removal TOOL Guide Pinion Bearing Pinion Bearing Removal |
1 | discontinued |
| 49 | 8M0222267 |
TOOL Driver Remove Carrier Gear Remove Rear Gear from Carrier TOOL Driver Remove Carrier Gear Remove Rear Gear from Carrier |
1 | |
| 5 | 8M0222237 |
TOOL Guide Plate Shift Install Shift-Shaft Components TOOL Guide Plate Shift Install Shift-Shaft Components |
1 | |
| 50 | 8M0222268 |
TOOL Mandrel Remove Bearings/Gear Remove Rear Gear from Carrier TOOL Mandrel Remove Bearings/Gear Remove Rear Gear from Carrier |
1 | |
| 51 | 8M0224209 |
TOOL Rear Carrier Alignment Remove Rear Gear from Carrier TOOL Rear Carrier Alignment Remove Rear Gear from Carrier |
1 | |
| 52 | 36569T |
ИНСТРУМЕНТ ДЛЯ ГОЛОВКИ ВЫКОЛОТКИ Remove Rear Gear from Carrier DRIVE HEAD TOOL Remove Rear Gear from Carrier |
1 | |
| 53 | 37323 |
ИНСТРУМЕНТ ДЛЯ ШТОКА ВЫКОЛОТКИ Игольчатые подшипники Remove Rear Gear from Carrier DRIVER ROD TOOL Needle Bearings Remove Rear Gear from Carrier |
1 | |
| 6 | 8M0142969 |
ИНСТРУМЕНТ ВАЛА ПЕРЕКЛЮЧЕНИЯ ПЕРЕДАЧ Install Shift-Shaft Components SHIFT SHAFT TOOL Install Shift-Shaft Components |
1 | |
| 7 | 8M0222239 |
TOOL Bearing Driver Front Outer Cup/Cone Install Front Gear Cup/Cone TOOL Bearing Driver Front Outer Cup/Cone Install Front Gear Cup/Cone |
1 | |
| 8 | 8M0222238 |
TOOL Rod Bearing Driver Front Outer Cup Install Front Gear Cup TOOL Rod Bearing Driver Front Outer Cup Install Front Gear Cup |
1 | |
| 9 | 8M0222240 |
TOOL Driver Propshaft Preload Install Front Gear Cup TOOL Driver Propshaft Preload Install Front Gear Cup |
1 |
