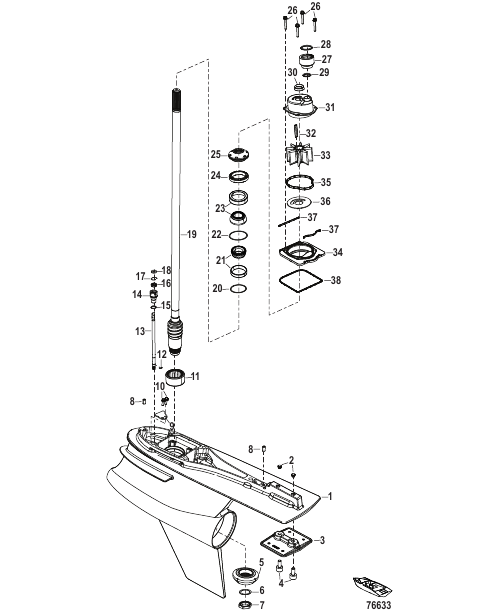

Gear Housing, Driveshaft, R-Drive Sport 1.60
Parts (68)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0219802 |
GEAR HOUSING ASSEMBLY (Standard, Long) Graphite Grey 1.60 GEAR HOUSING ASSEMBLY (Standard, Long) Graphite Grey 1.60 |
1 | superseded |
| - | 8M0219808 |
GEAR HOUSING ASSEMBLY Right Camber, Graphite Grey 1.60 GEAR HOUSING ASSEMBLY Right Camber, Graphite Grey 1.60 |
1 | superseded |
| - | 8M0219804 |
GEAR HOUSING ASSEMBLY (Standard, X-Long) Graphite Grey 1.60 GEAR HOUSING ASSEMBLY (Standard, X-Long) Graphite Grey 1.60 |
1 | superseded |
| - | 8M0219806 |
GEAR HOUSING ASSEMBLY (Standard, XX-Long) Graphite Grey 1.60 GEAR HOUSING ASSEMBLY (Standard, XX-Long) Graphite Grey 1.60 |
1 | superseded |
| - | 8M0219809 |
GEAR HOUSING ASSEMBLY (Standard, XXX-Long) Graphite Grey 1.60 GEAR HOUSING ASSEMBLY (Standard, XXX-Long) Graphite Grey 1.60 |
1 | |
| - | 8M0219803 |
GEAR HOUSING ASSEMBLY (Counter Rotation, Long) Graphite Grey 1.60 GEAR HOUSING ASSEMBLY (Counter Rotation, Long) Graphite Grey 1.60 |
1 | superseded |
| - | 8M0219805 |
GEAR HOUSING ASSEMBLY (Counter Rotation, X-Long) Graphite Grey 1.60 GEAR HOUSING ASSEMBLY (Counter Rotation, X-Long) Graphite Grey 1.60 |
1 | superseded |
| - | 8M0219807 |
GEAR HOUSING ASSEMBLY (Counter Rotation, XX-Long) Graphite Grey 1.60 GEAR HOUSING ASSEMBLY (Counter Rotation, XX-Long) Graphite Grey 1.60 |
1 | superseded |
| - | 8M0219810 |
GEAR HOUSING ASSEMBLY (Counter Rotation, XXX-Long) Graphite Grey 1.60 GEAR HOUSING ASSEMBLY (Counter Rotation, XXX-Long) Graphite Grey 1.60 |
1 | |
| - | 8M0219811 |
GEAR HOUSING ASSEMBLY (Standard, Long) Cold Fusion White 1.60 GEAR HOUSING ASSEMBLY (Standard, Long) Cold Fusion White 1.60 |
1 | superseded |
| - | 8M0219817 |
GEAR HOUSING ASSEMBLY Right Camber, Long, Cold Fusion White 1.60 GEAR HOUSING ASSEMBLY Right Camber, Long, Cold Fusion White 1.60 |
1 | |
| - | 8M0219813 |
GEAR HOUSING ASSEMBLY (Standard, X-Long) Cold Fusion White 1.60 GEAR HOUSING ASSEMBLY (Standard, X-Long) Cold Fusion White 1.60 |
1 | |
| - | 8M0219815 |
GEAR HOUSING ASSEMBLY (Standard, XX-Long) Cold Fusion White 1.60 GEAR HOUSING ASSEMBLY (Standard, XX-Long) Cold Fusion White 1.60 |
1 | superseded |
| - | 8M0219818 |
GEAR HOUSING ASSEMBLY (Standard, XXX-Long) Cold Fusion White 1.60 GEAR HOUSING ASSEMBLY (Standard, XXX-Long) Cold Fusion White 1.60 |
1 | |
| - | 8M0219812 |
GEAR HOUSING ASSEMBLY (Counter Rotation, Long) Cold Fusion White 1.60 GEAR HOUSING ASSEMBLY (Counter Rotation, Long) Cold Fusion White 1.60 |
1 | superseded |
| - | 8M0219814 |
GEAR HOUSING ASSEMBLY (Counter Rotation, X-Long) Cold Fusion White 1.60 GEAR HOUSING ASSEMBLY (Counter Rotation, X-Long) Cold Fusion White 1.60 |
1 | |
| - | 8M0219816 |
GEAR HOUSING ASSEMBLY (Counter Rotation, XX-Long) Cold Fusion White 1.60 GEAR HOUSING ASSEMBLY (Counter Rotation, XX-Long) Cold Fusion White 1.60 |
1 | |
| - | 8M0219819 |
GEAR HOUSING ASSEMBLY (Counter Rotation, XXX-Long) Cold Fusion White 1.60 GEAR HOUSING ASSEMBLY (Counter Rotation, XXX-Long) Cold Fusion White 1.60 |
1 | |
| - | 8M0200136 |
IMPELLER REPAIR KIT IMPELLER REPAIR KIT |
1 | |
| - | 8M0200118 |
SEAL KIT Plate SEAL KIT Plate |
1 | |
| 1 | 8M0219308 |
GEAR HOUSING ASSEMBLY Basic, Standard, Graphite Grey GEAR HOUSING ASSEMBLY Basic, Standard, Graphite Grey |
1 | |
| 1 | 8M0219309 |
GEAR HOUSING ASSEMBLY Basic, Standard, Cold Fusion White GEAR HOUSING ASSEMBLY Basic, Standard, Cold Fusion White |
1 | |
| 1 | 8M0219310 |
GEAR HOUSING ASSEMBLY Basic, Graphite Grey, Right Camber GEAR HOUSING ASSEMBLY Basic, Graphite Grey, Right Camber |
1 | |
| 1 | 8M0219311 |
GEAR HOUSING ASSEMBLY Basic, Cold Fusion White, Right Camber GEAR HOUSING ASSEMBLY Basic, Cold Fusion White, Right Camber |
1 | |
| 10 | 8M0204706 |
SCREW M6 x 20 Hex SCREW M6 x 20 Hex |
2 | |
| 11 | 8M0210530 |
BEARING Needle BEARING Needle |
1 | |
| 12 | 8M0142866 |
КОЛЬЦО Стопор RING Retaining |
1 | |
| 13 | 8M0210538 |
SHIFT SHAFT Long SHIFT SHAFT Long |
1 | |
| 13 | 8M0210553 |
SHIFT SHAFT X-Long SHIFT SHAFT X-Long |
1 | |
| 13 | 8M0210555 |
SHIFT SHAFT XX-Long SHIFT SHAFT XX-Long |
1 | |
| 13 | 8M0210557 |
SHIFT SHAFT XXX-Long SHIFT SHAFT XXX-Long |
1 | |
| 14 | 8M0210549 |
BUSHING Shift Shaft BUSHING Shift Shaft |
1 | |
| 15 | 8M0210550 |
O-RING O-RING |
1 | |
| 16 | 8M0204708 |
SEAL Oil SEAL Oil |
1 | |
| 17 | 8M0046563 |
СТОПОРНОЕ КОЛЬЦО RING Retaining |
1 | |
| 18 | 77674 |
ШАЙБА WASHER (.35 x .75 x .12) |
1 | |
| 19 | 8M0210516 |
DRIVESHAFT Long DRIVESHAFT Long |
1 | |
| 19 | 8M0210552 |
DRIVESHAFT X-Long DRIVESHAFT X-Long |
1 | |
| 19 | 8M0210554 |
DRIVESHAFT XX-Long DRIVESHAFT XX-Long |
1 | |
| 19 | 8M0210556 |
DRIVESHAFT XXX-Long DRIVESHAFT XXX-Long |
1 | |
| 2 | 8M0142878 |
ПРОБКА Винт PLUG Screw |
2 | |
| 20 | 8M0206004 |
SHIM SET 2.008 x 2.208 x (.010 - .030) SHIM SET 2.008 x 2.208 x (.010 - .030) |
1 | |
| 21 | 8M0210524 |
BEARING BEARING |
1 | |
| 22 | 8M0232460 |
GEAR SET Forward Gear/Pinion 15/24 GEAR SET Forward Gear/Pinion 15/24 |
1 | |
| 23 | 8M0210519 |
BEARING BEARING |
1 | |
| 24 | 8M0210541 |
RETAINER-BEARING Bearing Elongated D Markings On Part RETAINER-BEARING Bearing Elongated D Markings On Part |
1 | |
| 25 | 8M0210548 |
OIL SEAL CARRIER Elongated D Markings On Part OIL SEAL CARRIER Elongated D Markings On Part |
1 | discontinued |
| 26 | 8M0103809 |
ВИНТ (M6 x 40 мм), нержавеющая сталь SCREW (M6 x 40 mm) Stainless Steel |
4 | |
| 27 | 8M0200112 |
COUPLING Water Pump COUPLING Water Pump |
1 | |
| 28 | 8M0200181 |
O-RING 1.296 x .139 O-RING 1.296 x .139 |
1 | |
| 29 | 8M0204645 |
O-RING (.796 x .139) O-RING (.796 x .139) |
1 | |
| 3 | 8M0137814 |
АНОД ПРОТИВОВЕНТИЛЯЦИОННАЯ ПЛАСТИНА ANODE Antivent Plate (Aluminum) |
1 | |
| 3 | 8M0200103 |
ANODE Antivent Plate (Magnesium) (Not Included in Complete Gear Housing Assembly) ANODE Antivent Plate (Magnesium) (Not Included in Complete Gear Housing Assembly) |
1 | |
| 30 | 8M0200113 |
FACE SEAL FACE SEAL |
1 | |
| 31 | 8M0200111 |
WATER PUMP HOUSING WATER PUMP HOUSING |
1 | |
| 32 | 8M0200114 |
KEY Impeller KEY Impeller |
1 | |
| 33 | 8M0200115 |
IMPELLER Water Pump IMPELLER Water Pump |
1 | |
| 34 | 8M0200117 |
COVER Housing COVER Housing |
1 | |
| 35 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Seal NOT SOLD SEPARATE Seal |
1 | |
| 36 | 8M0200116 |
FACEPLATE FACEPLATE |
1 | |
| 37 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Seal NOT SOLD SEPARATE Seal |
1 | |
| 38 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Seal NOT SOLD SEPARATE Seal |
1 | |
| 4 | 8M0142850 |
ВИНТ (M10 X 25) SCREW (M10 X 25) |
2 | |
| 5 | 8M0232460 |
GEAR SET Forward Gear/Pinion 15/24 GEAR SET Forward Gear/Pinion 15/24 |
1 | |
| 6 | 8M0210540 |
WASHER WASHER |
1 | |
| 7 | 8M0210539 |
NUT NUT |
1 | |
| 8 | 8M0084244 |
ШТИФТ Штифт PIN Dowel, .375 x .620 |
2 | |
| 9 | 8M0215071 |
PLATE PLATE |
1 |
