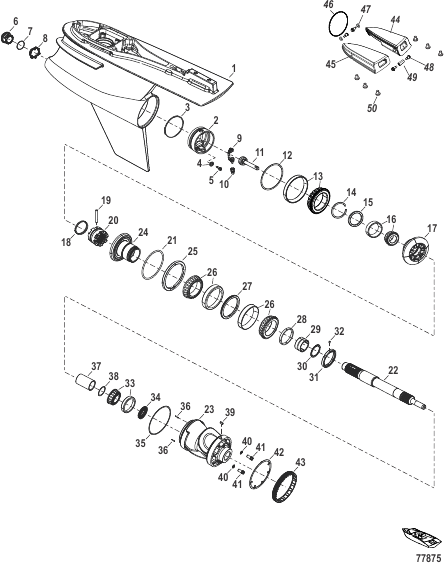

Gear Housing, Joystick Piloting Prop Shaft - Counter Rotation, R-Drive 1.60
Parts (62)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0224402 |
GEAR HOUSING ASSEMBLY Counter, Long, Graphite Grey, Right Camber GEAR HOUSING ASSEMBLY Counter, Long, Graphite Grey, Right Camber |
1 | |
| - | 8M0224404 |
GEAR HOUSING ASSEMBLY Counter, X-Long, Graphite Grey, Right Camber GEAR HOUSING ASSEMBLY Counter, X-Long, Graphite Grey, Right Camber |
1 | superseded |
| - | 8M0224406 |
GEAR HOUSING ASSEMBLY Counter, XX-Long, Graphite Grey, Right Camber GEAR HOUSING ASSEMBLY Counter, XX-Long, Graphite Grey, Right Camber |
1 | superseded |
| - | 8M0224408 |
GEAR HOUSING ASSEMBLY Counter, XXX-Long, Graphite Grey, Right Camber GEAR HOUSING ASSEMBLY Counter, XXX-Long, Graphite Grey, Right Camber |
1 | |
| - | 8M0224411 |
GEAR HOUSING ASSEMBLY Counter, Long, Cold Fusion White, Right Camber GEAR HOUSING ASSEMBLY Counter, Long, Cold Fusion White, Right Camber |
1 | |
| - | 8M0224413 |
GEAR HOUSING ASSEMBLY Counter, X-Long, Cold Fusion White, Right Camber GEAR HOUSING ASSEMBLY Counter, X-Long, Cold Fusion White, Right Camber |
1 | |
| - | 8M0224415 |
GEAR HOUSING ASSEMBLY Counter, XX-Long, Cold Fusion White, Right Camber GEAR HOUSING ASSEMBLY Counter, XX-Long, Cold Fusion White, Right Camber |
1 | |
| - | 8M0224417 |
GEAR HOUSING ASSEMBLY Counter, XXX-Long, Cold Fusion White, Right Camber GEAR HOUSING ASSEMBLY Counter, XXX-Long, Cold Fusion White, Right Camber |
1 | |
| 1 | 8M0225057 |
GEAR HOUSING ASSEMBLY Basic, Left Camber, Graphite Grey GEAR HOUSING ASSEMBLY Basic, Left Camber, Graphite Grey |
1 | |
| 1 | 8M0225058 |
GEAR HOUSING ASSEMBLY Basic, Right Camber, Graphite Grey GEAR HOUSING ASSEMBLY Basic, Right Camber, Graphite Grey |
1 | |
| 1 | 8M0225061 |
GEAR HOUSING ASSEMBLY Basic, Left Camber, Cold Fusion White GEAR HOUSING ASSEMBLY Basic, Left Camber, Cold Fusion White |
1 | |
| 1 | 8M0225062 |
GEAR HOUSING ASSEMBLY Basic, Right Camber, Cold Fusion White GEAR HOUSING ASSEMBLY Basic, Right Camber, Cold Fusion White |
1 | |
| 10 | 8M0210515 |
BUSHING Shift BUSHING Shift |
1 | |
| 11 | 8M0232475 |
SPOOL ASSEMBLY SPOOL ASSEMBLY |
1 | superseded |
| 12 | 8M0232465 |
SHIM SET SHIM SET |
1 | |
| 13 | 8M0210527 |
BEARING BEARING |
1 | |
| 14 | 8M0200142 |
RETAINING Ring RETAINING Ring |
1 | |
| 15 | 8M0200143 |
WASHER Thrust WASHER Thrust |
1 | |
| 16 | 8M0200144 |
BEARING Roller Taper (Cup/Cone) BEARING Roller Taper (Cup/Cone) |
1 | |
| 17 | 8M0232459 |
GEAR SET GEAR SET |
1 | |
| 18 | 8M0219228 |
SPRING Clutch Pin SPRING Clutch Pin |
1 | |
| 19 | 8M0239527 |
PIN Cross PIN Cross |
1 | |
| 2 | 8M0210511 |
PLUG Torpedo PLUG Torpedo |
1 | |
| 20 | 8M0200147 |
CLUTCH CLUTCH |
1 | |
| 21 | 8M0232468 |
SHIM SET SHIM SET |
1 | |
| 22 | 8M0220160 |
PROPELLER SHAFT PROPELLER SHAFT |
1 | |
| 23 | 8M0210544 |
BEARNG CARRIER ASSEMBLY BEARNG CARRIER ASSEMBLY |
1 | |
| 24 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gear Set NOT SOLD SEPARATE Gear Set |
1 | |
| 25 | 8M0219431 |
RING Thrust RING Thrust |
1 | |
| 26 | 8M0200161 |
BEARING ASSEMBLY Roller Taper (Cup/Cone) BEARING ASSEMBLY Roller Taper (Cup/Cone) |
2 | |
| 27 | 8M0219432 |
SPACER Cup SPACER Cup |
1 | |
| 28 | 8M0200163 |
SPACER Cone SPACER Cone |
1 | |
| 29 | 8M0219433 |
BEARING-NEEDLE Needle BEARING-NEEDLE Needle |
1 | |
| 3 | 8M0210514 |
QUAD RING QUAD RING |
1 | |
| 30 | 8M0219434 |
RETAINING RING RETAINING RING |
1 | |
| 31 | 8M0200164 |
NUT Lock, 2.625-16 NUT Lock, 2.625-16 |
1 | |
| 32 | 8M0066130 |
УСТАНОВОЧНЫЙ ВИНТ С КОРОТКИМ ЦИЛИНДРИЧЕСКИМ КОНЦОМ SCREW- HALF DOG POINT SET |
1 | |
| 33 | 8M0219435 |
BEARING Cup/Cone BEARING Cup/Cone |
1 | |
| 34 | 8M0200154 |
SEAL Oil SEAL Oil |
1 | |
| 35 | 8M0219436 |
O-RING O-RING |
1 | |
| 36 | 38489 |
ШТИФТ Ролик PIN Roll |
2 | |
| 37 | 8M0210545 |
SPACER Bearing SPACER Bearing |
1 | |
| 38 | 8M0206007 |
SHIM SET 1.505 x 1.745 (.014 - .044) SHIM SET 1.505 x 1.745 (.014 - .044) |
1 | |
| 39 | 8M0215074 |
DOWEL PIN DOWEL PIN |
1 | |
| 4 | 8M0050602 |
МАГНИТ MAGNET |
1 | |
| 40 | 8M0204693 |
SEAL Drain Plug SEAL Drain Plug |
2 | |
| 41 | 8M0071653 |
ВИНТ Специальный SCREW Special, .375-16 UNC |
2 | |
| 42 | 8M0210542 |
WASHER-TAB Tab WASHER-TAB Tab |
1 | |
| 43 | 8M0210543 |
RETAINER NUT RETAINER NUT |
1 | |
| 44 | 8M0225063 |
MUFFLER Port MUFFLER Port |
1 | |
| 45 | 8M0225064 |
MUFFLER Starboard MUFFLER Starboard |
1 | |
| 46 | 8M0225068 |
SEAL Quad Ring SEAL Quad Ring |
1 | |
| 47 | 8M0225066 |
SPACER SPACER |
2 | |
| 48 | 8M0225065 |
SCREW Shoulder, M6 SCREW Shoulder, M6 |
4 | |
| 49 | 8M0225067 |
NUT Coupling, 6 MM NUT Coupling, 6 MM |
1 | |
| 5 | 892073002 |
ВИНТ С БУРТИКОМ (M6) SHOULDER SCREW (M6) |
1 | superseded |
| 50 | 8M0144417 |
ВИНТ SCREW (M6 x 16) |
6 | |
| 6 | 8M0220902 |
NOSE CAP 4 Holes NOSE CAP 4 Holes |
1 | |
| 6 | 8M0220903 |
NOSE CAP 14 Holes NOSE CAP 14 Holes |
1 | discontinued |
| 7 | 45257 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (1.489 x 0.070) O-RING (1.489 x .070) |
1 | |
| 8 | 8M0210513 |
RETAINER RETAINER |
1 | |
| 9 | 8M0046215 |
КОЛЕНЧАТЫЙ ВАЛ, рычаг переключения передач Палец шарнира 1/4 CRANK, Shifter 1/4 Pivot Pin |
1 | superseded |
