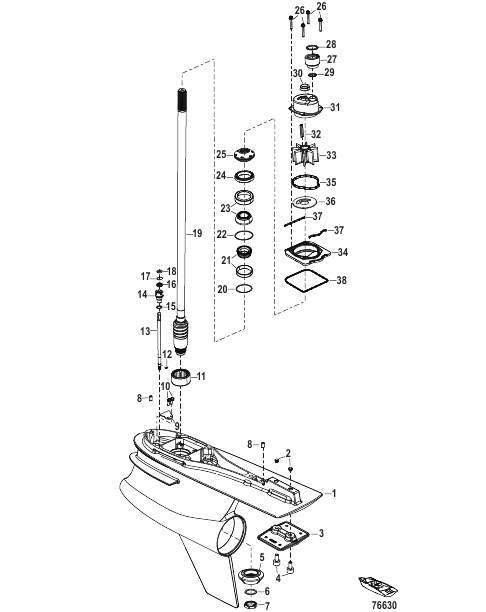

Gear Housing, Driveshaft, R-Drive 1.60

Parts (66)

#Part NumberDescriptionQtyStatus
- 8M0210573 GEAR HOUSING ASSEMBLY (Standard, Long) Graphite Grey 1.60 1 superseded
- 8M0210574 GEAR HOUSING ASSEMBLY (Standard, X-Long) Graphite Grey 1.60 1 superseded
- 8M0210575 GEAR HOUSING ASSEMBLY (Standard, XX-Long) Graphite Grey 1.60 1 superseded
- 8M0210576 GEAR HOUSING ASSEMBLY (Standard, XXX-Long) Graphite Grey 1.60 1 superseded
- 8M0210577 GEAR HOUSING ASSEMBLY (Counter Rotation, Long) Graphite Grey 1.60 1 superseded
- 8M0210578 GEAR HOUSING ASSEMBLY (Counter Rotation, X-Long) Graphite Grey 1.60 1 superseded
- 8M0210579 GEAR HOUSING ASSEMBLY (Counter Rotation, XX-Long) Graphite Grey 1.60 1 superseded
- 8M0210580 GEAR HOUSING ASSEMBLY (Counter Rotation, XXX-Long) Graphite Grey 1.60 1
- 8M0210581 GEAR HOUSING ASSEMBLY (Standard, Long) Cold Fusion White 1.60 1 superseded
- 8M0210583 GEAR HOUSING ASSEMBLY (Standard, X-Long) Cold Fusion White 1.60 1 superseded
- 8M0210585 GEAR HOUSING ASSEMBLY (Standard, XX-Long) Cold Fusion White 1.60 1 superseded
- 8M0210582 GEAR HOUSING ASSEMBLY (Counter Rotation, Long) Cold Fusion White 1.60 1 superseded
- 8M0210587 GEAR HOUSING ASSEMBLY (Standard, XXX-Long) Cold Fusion White 1.60 1
- 8M0210584 GEAR HOUSING ASSEMBLY (Counter Rotation, X-Long) Cold Fusion White 1.60 1 superseded
- 8M0210586 GEAR HOUSING ASSEMBLY (Counter Rotation, XX-Long) Cold Fusion White 1.60 1 superseded
- 8M0210588 GEAR HOUSING ASSEMBLY (Counter Rotation, XXX-Long) Cold Fusion White 1.60 1
- 8M0200118 SEAL KIT Plate Purple Seal 1
- 8M0200136 IMPELLER REPAIR KIT 1
1 8M0219304   GEAR HOUSING ASSEMBLY Basic, Standard, Graphite Grey 1
1 8M0219305   GEAR HOUSING ASSEMBLY Basic, Standard, Cold Fusion White 1
1 8M0219306   GEAR HOUSING ASSEMBLY Basic, Left Camber, Graphite Grey 1
1 8M0219307   GEAR HOUSING ASSEMBLY Basic, Left Camber, Cold Fusion White 1
10 8M0204706   SCREW M6 x 20 Hex 2
11 8M0210530   BEARING Needle 1
12 8M0142866   RING Retaining 1
13 8M0210538   SHIFT SHAFT Long 1
13 8M0210553   SHIFT SHAFT X-Long 1
13 8M0210555   SHIFT SHAFT XX-Long 1
13 8M0210557   SHIFT SHAFT XXX-Long 1
14 8M0210549   BUSHING Shift Shaft 1
15 8M0210550   O-RING 1
16 8M0204708   SEAL Oil 1
17 8M0046563   RING Retaining 1
18 77674   WASHER (.35 x .75 x .12) 1
19 8M0210516   DRIVESHAFT Long 1
19 8M0210552   DRIVESHAFT X-Long 1
19 8M0210554   DRIVESHAFT XX-Long 1
19 8M0210556   DRIVESHAFT XXX-Long 1
2 8M0142878     PLUG Screw 2
20 8M0206004   SHIM SET 2.008 x 2.208 x (.010 - .030) 1
21 8M0210524   BEARING 1
22 8M0232460   GEAR SET Forward Gear/Pinion 15/24 Shim Set included in Gear Set 1
23 8M0210519   BEARING 1
24 8M0210541   RETAINER-BEARING Bearing 1
25 8M0210548   OIL SEAL CARRIER 1 disc.
26 8M0103809   SCREW (M6 x 40 mm) Stainless Steel 4
27 8M0200112   COUPLING Water Pump 1
28 8M0200181     O-RING 1.296 x .139 1
29 8M0204645     O-RING (.796 x .139) 1
3 8M0137814     ANODE Antivent Plate (Aluminum) 1
3 8M0200103     ANODE Antivent Plate (Magnesium) (Not Included in Complete Gear Housing Assembly) 1
30 8M0200113   FACE SEAL 1
31 8M0200111   WATER PUMP HOUSING 1
32 8M0200114   KEY Impeller 1
33 8M0200115   IMPELLER Water Pump 1
34 8M0200117   COVER Housing 1
35 NSS     NOT SOLD SEPARATE Seal 1
36 8M0200116     FACEPLATE 1
37 NSS     NOT SOLD SEPARATE Seal 1
38 NSS     NOT SOLD SEPARATE Seal 1
4 8M0142850     SCREW (M10 X 25) 2
5 8M0232460   GEAR SET Forward Gear/Pinion 15/24 1
6 8M0210540   WASHER 1
7 8M0210539   NUT 1
8 8M0084244   PIN Dowel, .375 x .620 2
9 8M0215071   PLATE 1
